DTC C1117: Engine Speed Signal Line

Diagnostic Procedure

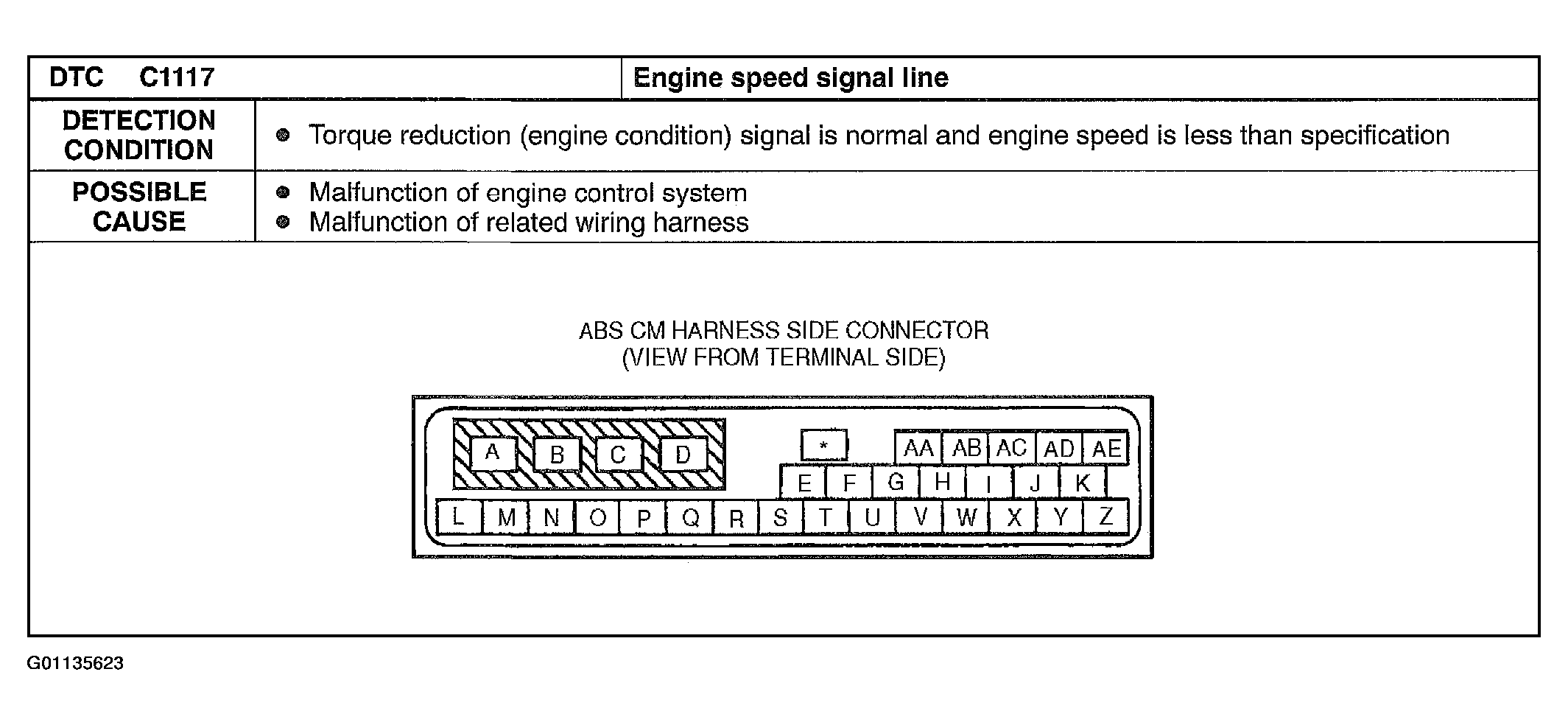

Fig 1: DTC C1117 Detection Condition & Possible Causes
G01135623Courtesy of MAZDA MOTORS CORP.

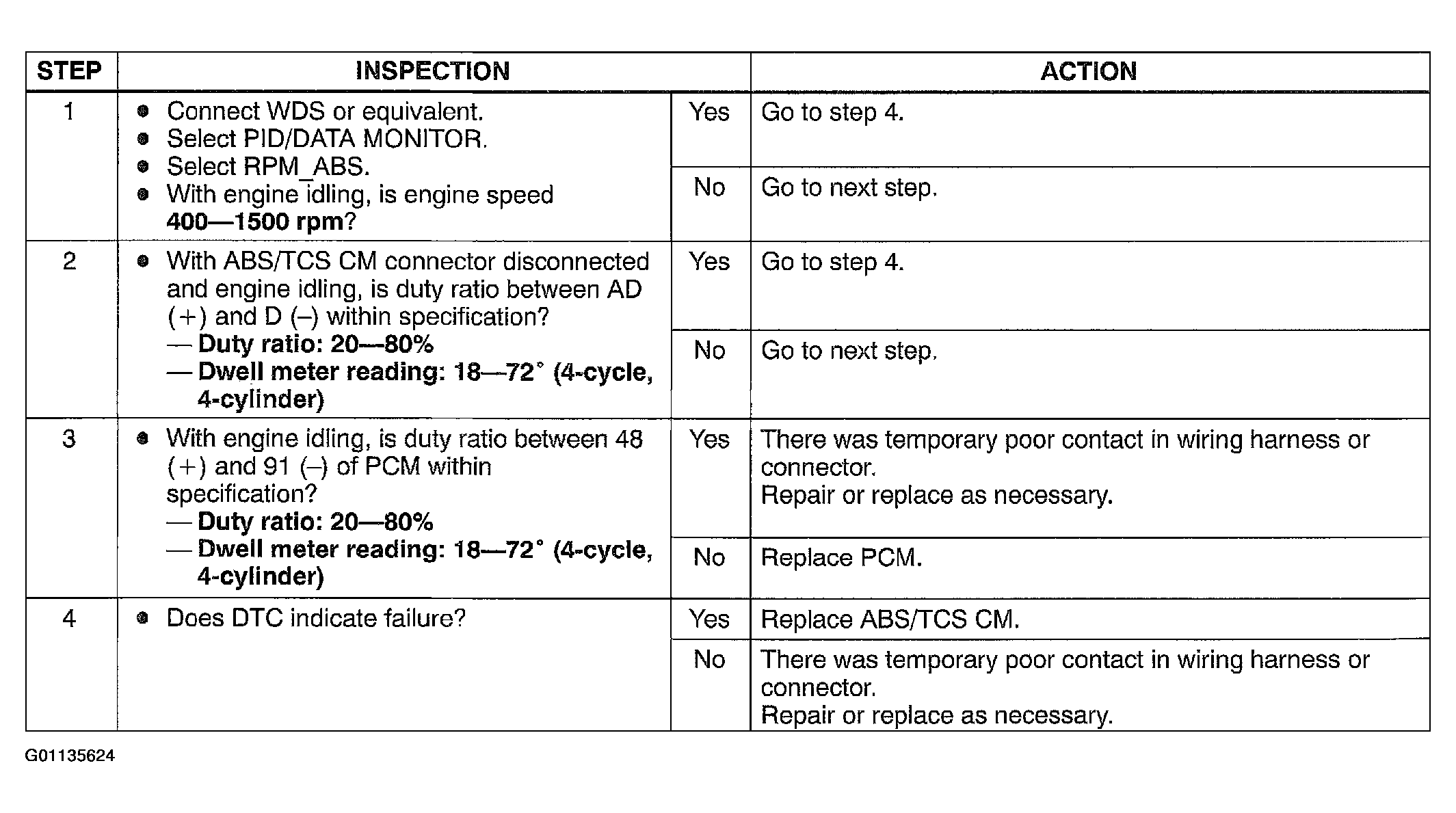

Fig 2: DTC C1117 Inspection & Action
G01135624Courtesy of MAZDA MOTORS CORP.
