Dual Proportioning Valve Installation Note
Install the dual proportioning valve so that the R mark faces right side of the vehicle.

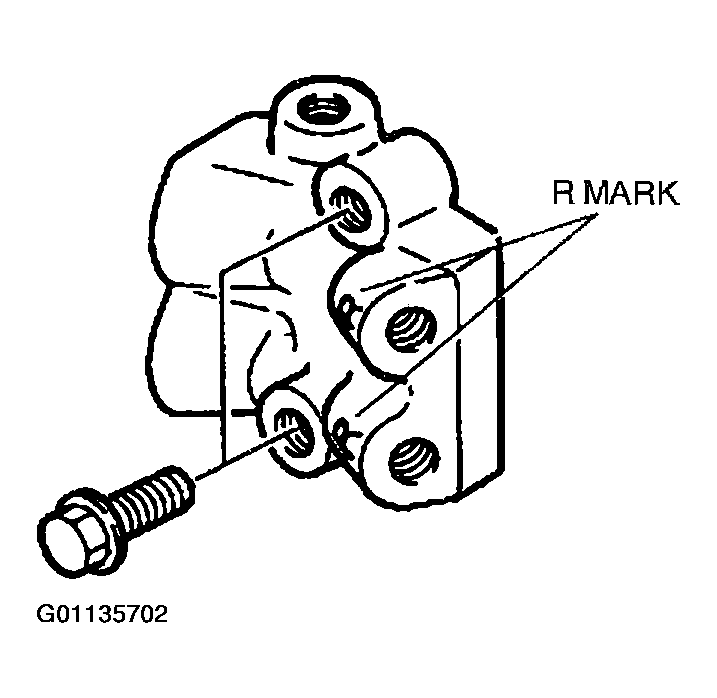

Fig 1: Identifying Dual Proportioning Valve R Marks
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
