Front Brake (Disc) Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.
  3. After installation, depress the pedal several times, rotate the wheel by hand, and verify that the brake does not drag.

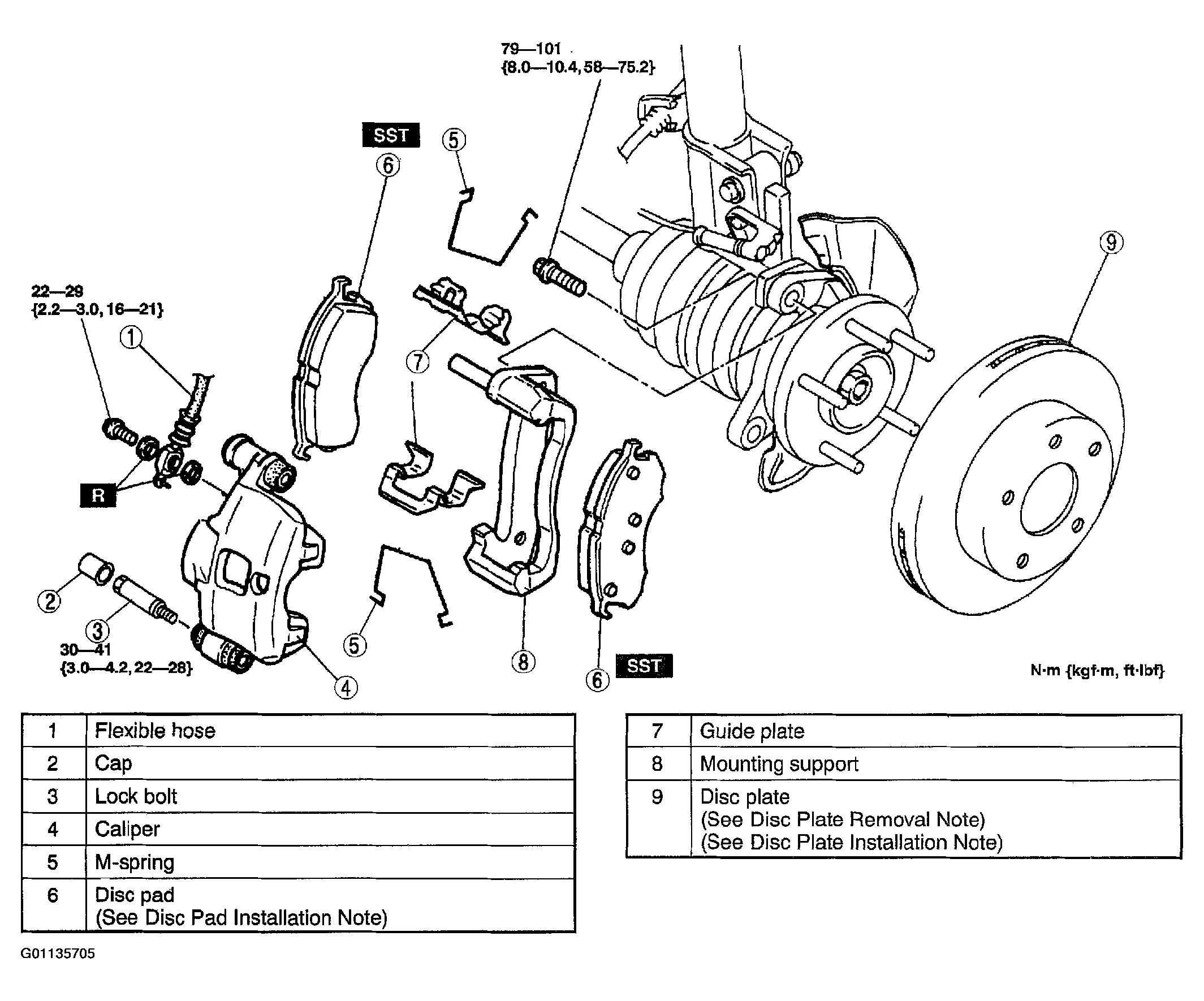

    Fig 1: Removing/Installing Front Brake (Disc)
    G01135705Courtesy of MAZDA MOTORS CORP.
