Piston Seal Disassembly Note
Remove the piston seal from the brake caliper by using the SST.

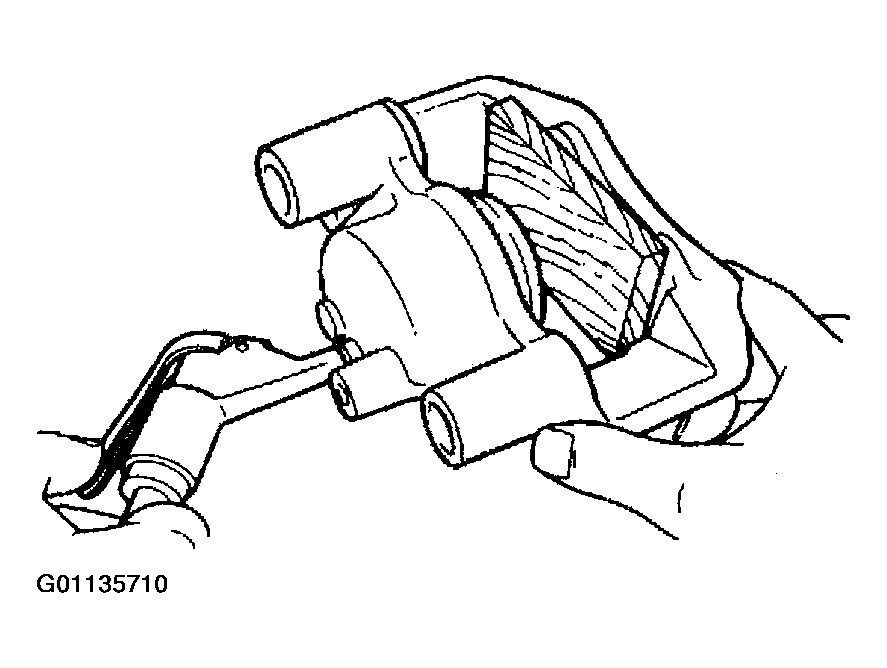

Fig 1: Removing Piston From Caliper
Courtesy of MAZDA MOTORS CORP.

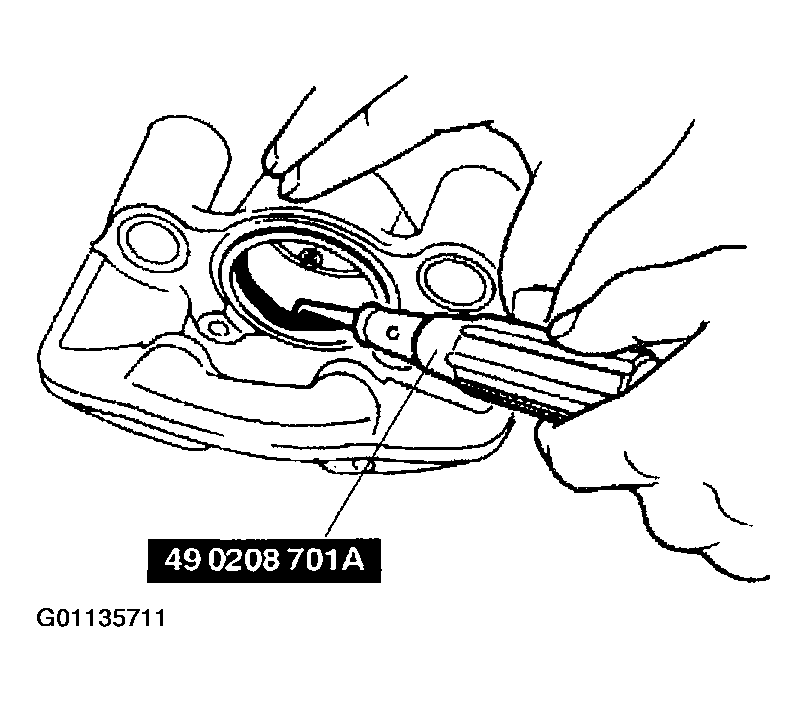

Fig 2: Removing Piston Seal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
