Master Cylinder Disassembly/Assembly: Notes
CAUTION:
- If the master cylinder body is damaged, replace the unit as an assembly. When securing the master cylinder in a vise, tighten only the flange of the master cylinder. Tightening other places on master cylinder will cause damage to the cylinder body.

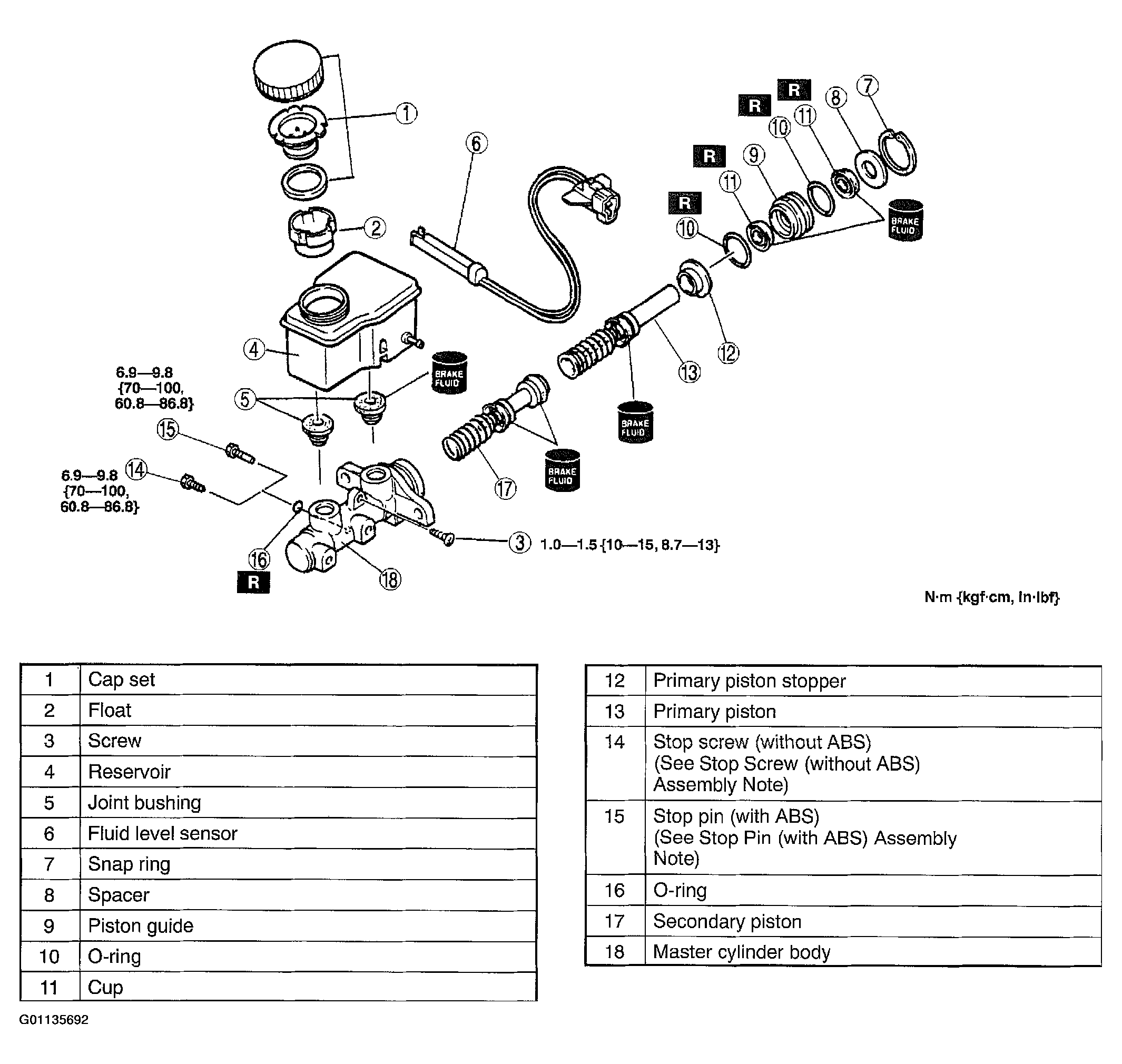

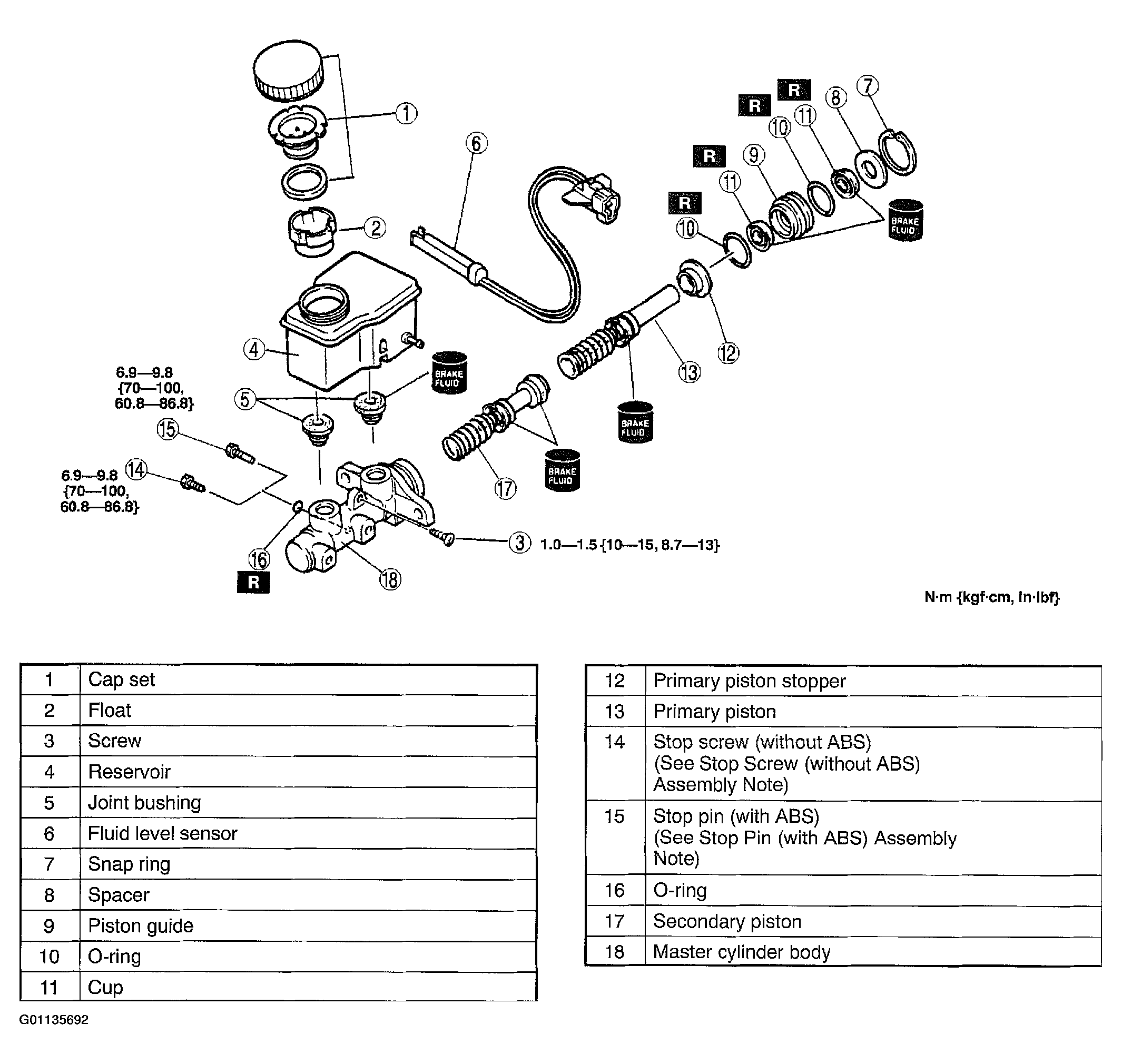

- Disassemble in the order indicated in Fig 1 .
- Assemble in the reverse order of disassembly.
