No. 4 Brake System Has Problems

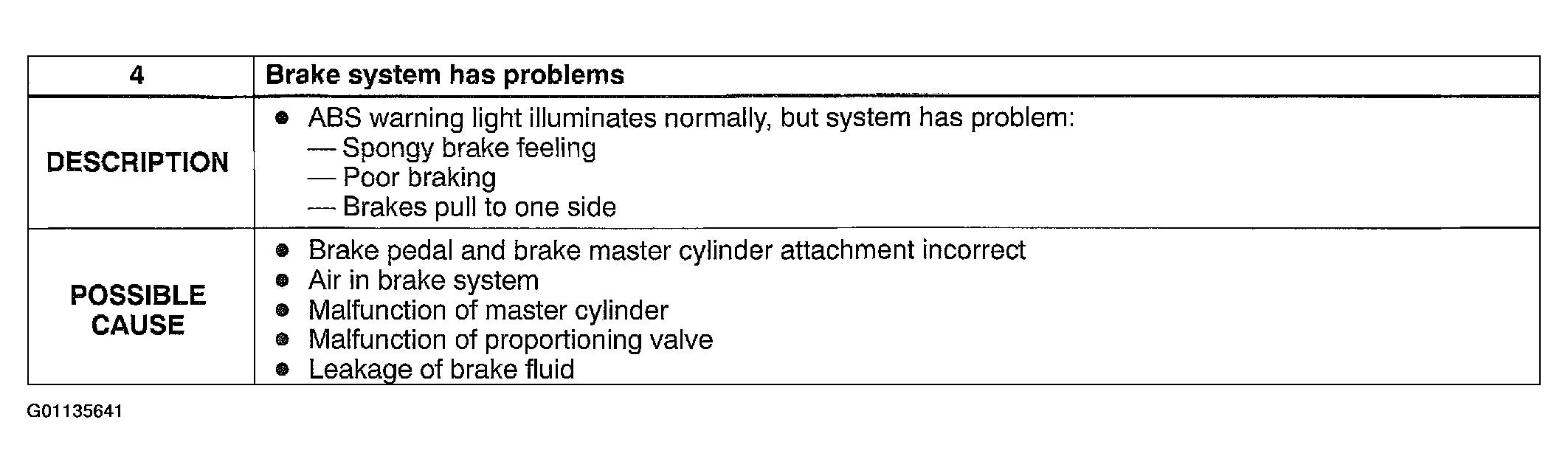

Fig 1: No. 4 Brake System Has Problems - Description & Possible Causes
G01135641Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

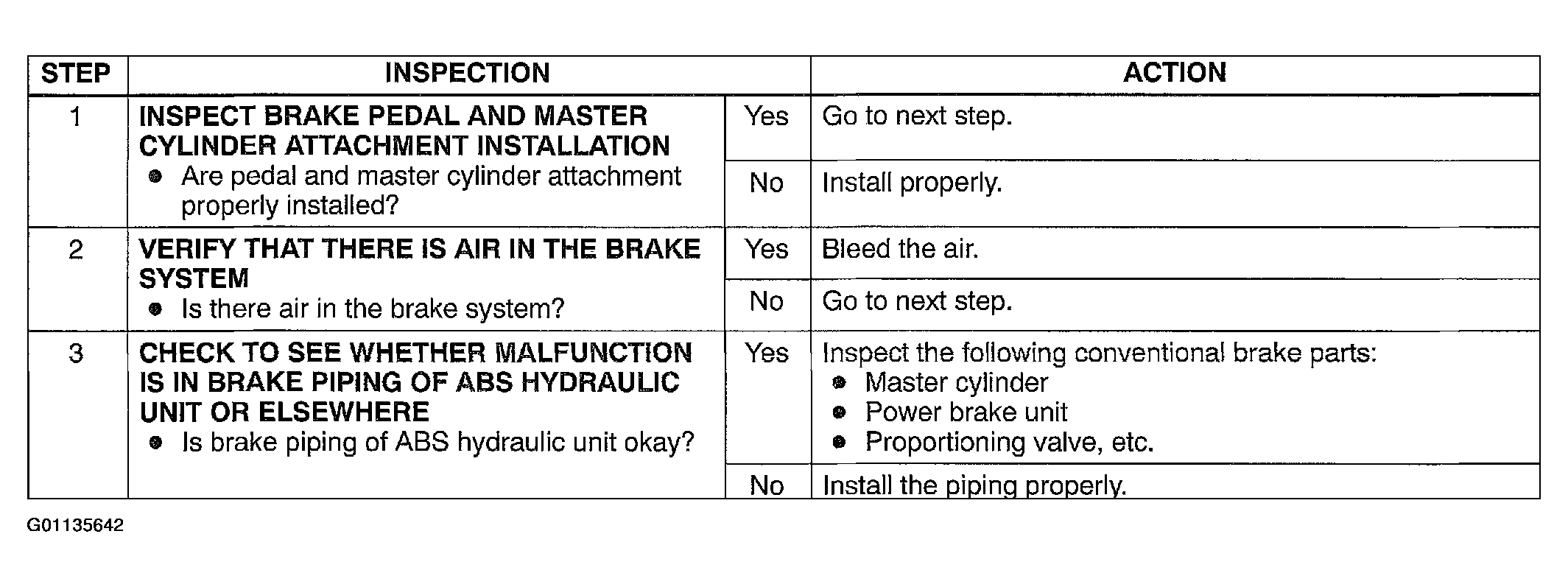

Fig 2: No. 4 Brake System Has Problems - Inspection & Action
G01135642Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Recheck the diagnostic trouble code after repair completion.
NOTE:
  • The ABS warning light normally illuminates for 2-4 seconds  after ignition switch is turned to ON.
  • If any symptoms have occurred in the past but are now okay, malfunction of related harness could be the possible cause and thus ABS CM is normal.
