Power Brake Unit Removal/Installation

  1. Remove the master cylinder. See MASTER CYLINDER REMOVAL/INSTALLATION  .
  2. Remove in the order indicated in Fig 1 .
  3. Install in the reverse order of removal.

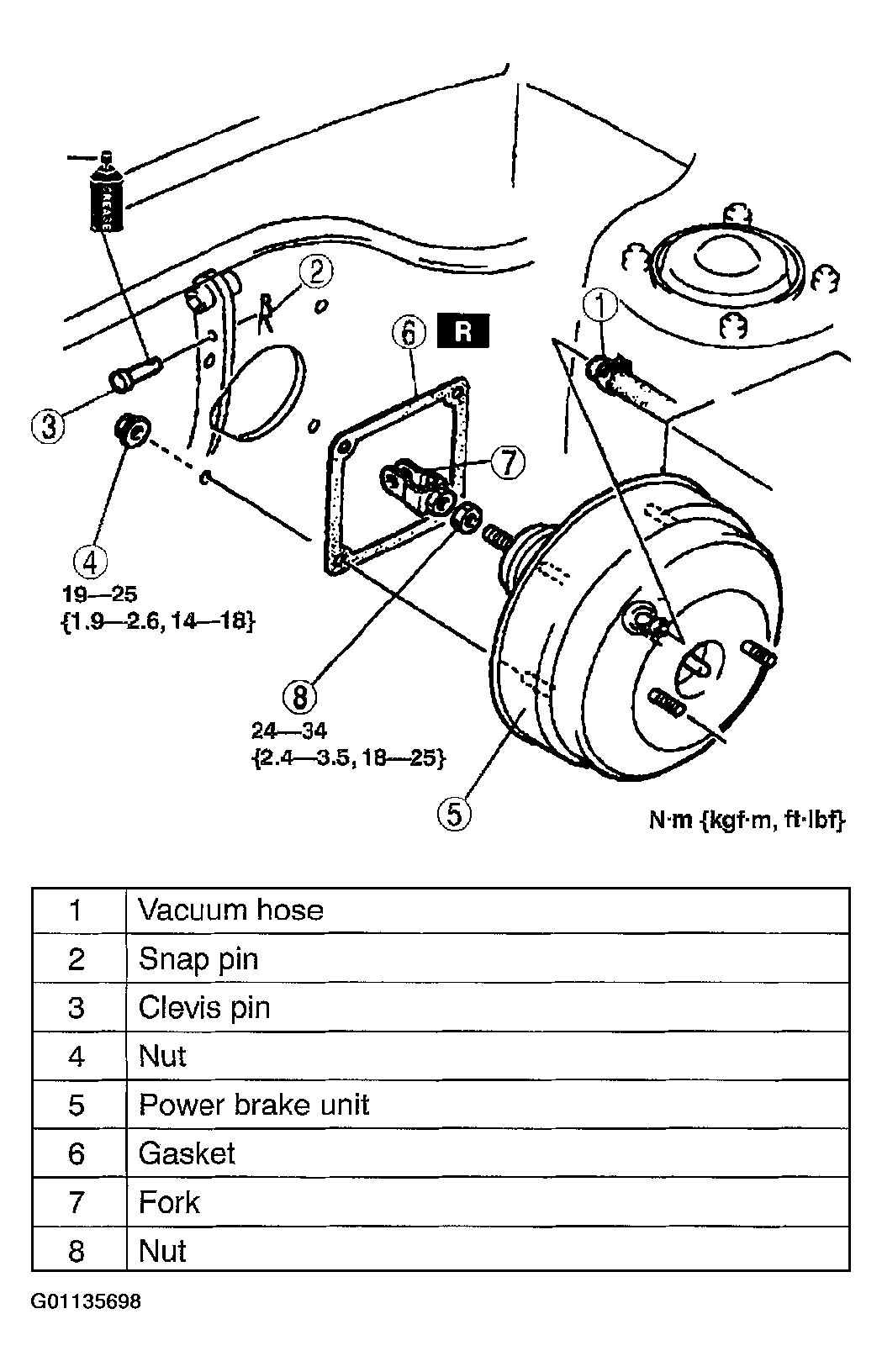

    Fig 1: Removing Power Brake Unit
    G01135698Courtesy of MAZDA MOTORS CORP.
