Diagnostic Index

Use Fig 1 and/or Fig 2 to determine the problem, and go to the appropriate "Symptom Troubleshooting."

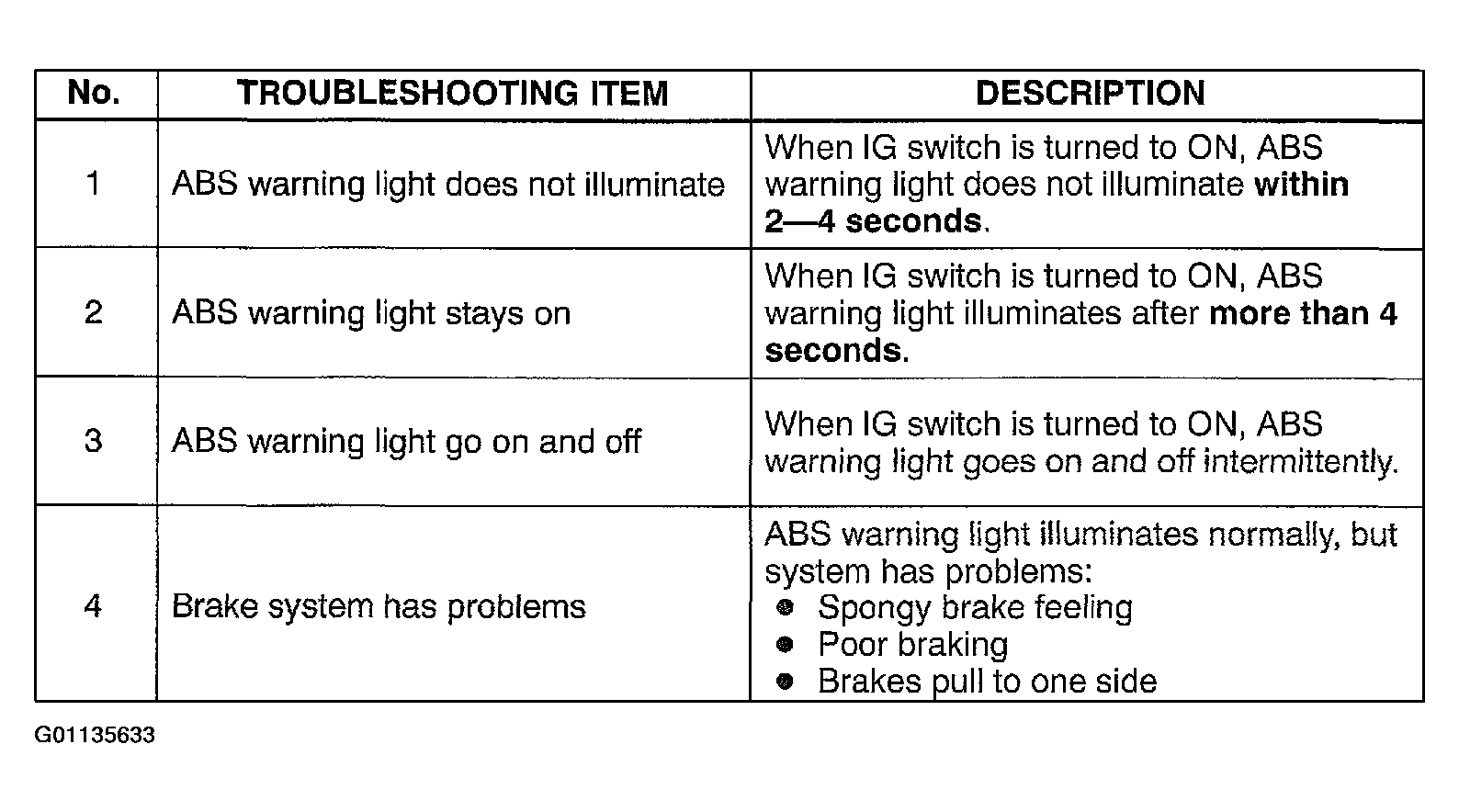

Fig 1: Symptom Troubleshooting Diagnostic Index (No. 1-4)

Courtesy of MAZDA MOTORS CORP.

(For ABS)

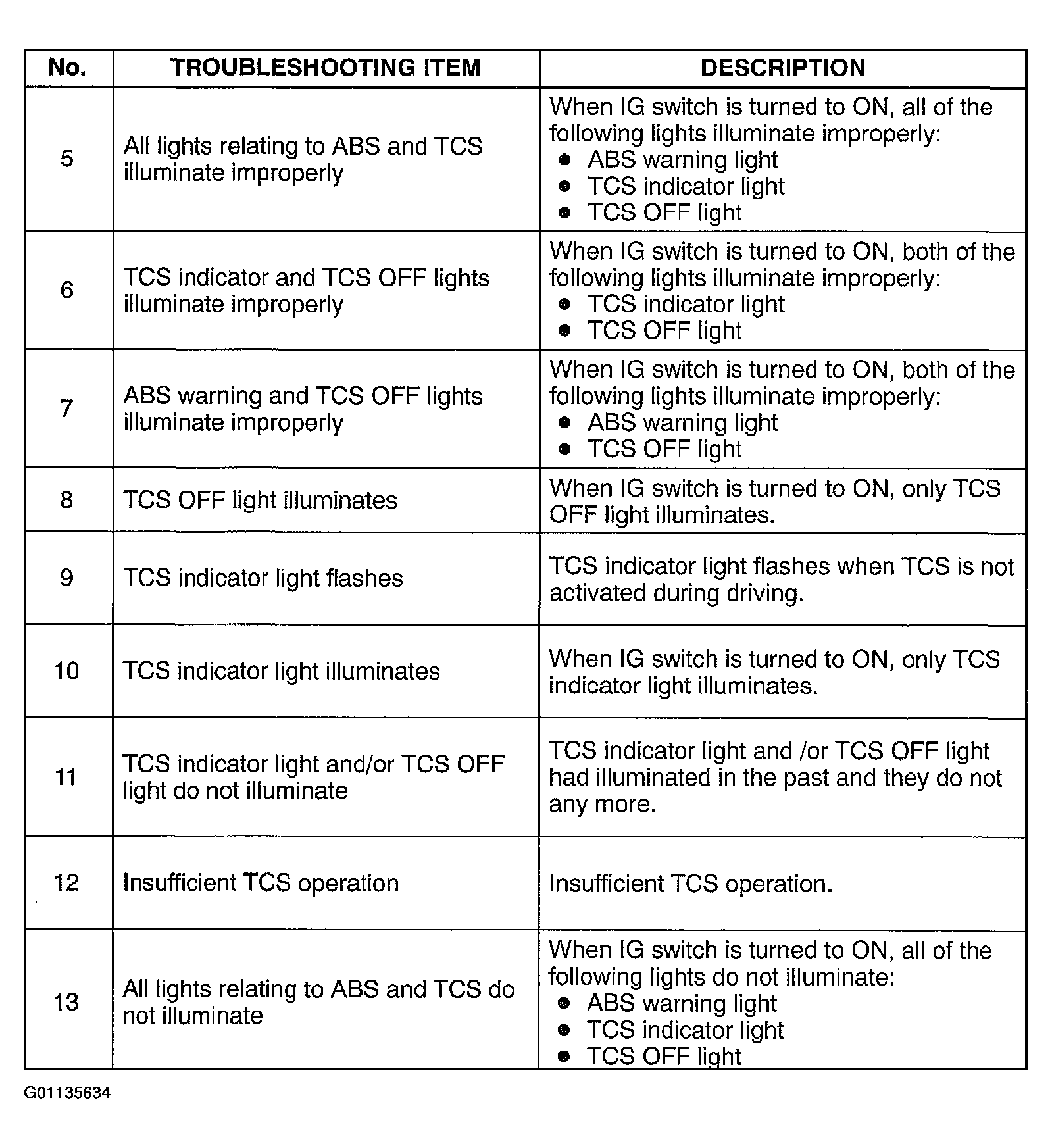

Fig 2: Symptom Troubleshooting Diagnostic Index (No. 5-13)

Courtesy of MAZDA MOTORS CORP.
