TCS Off Switch Removal/Installation

  1. Remove the meter hood.
  2. Press the hooks of the TCS OFF switch and pull the switch out.
  3. Install in the reverse order of removal.

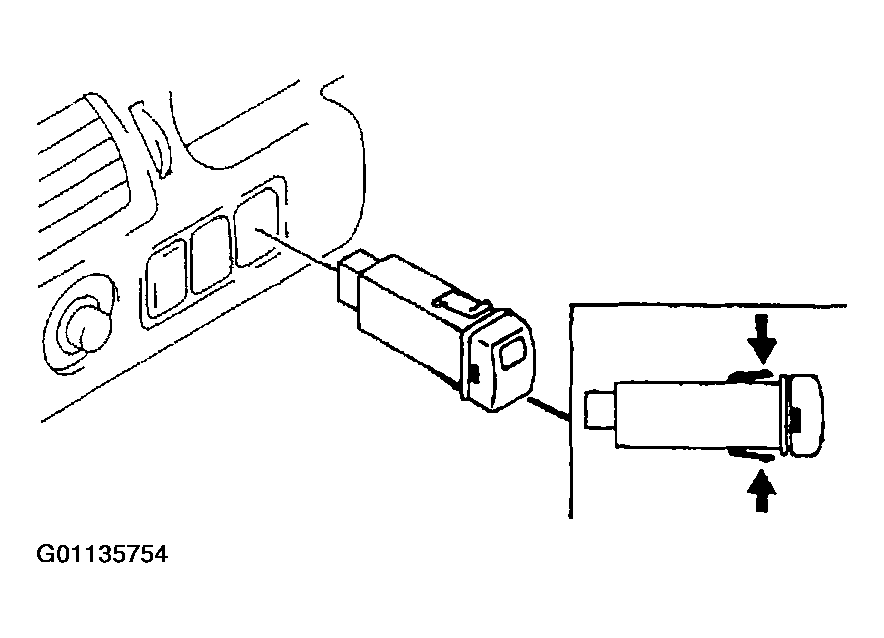

    Fig 1: Removing/Installing TCS Off Switch
    G01135754Courtesy of MAZDA MOTORS CORP.
