Wheel Cylinder Disassembly/Assembly

CAUTION:
  • Replace the wheel cylinder assembly if a problem is found.
  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

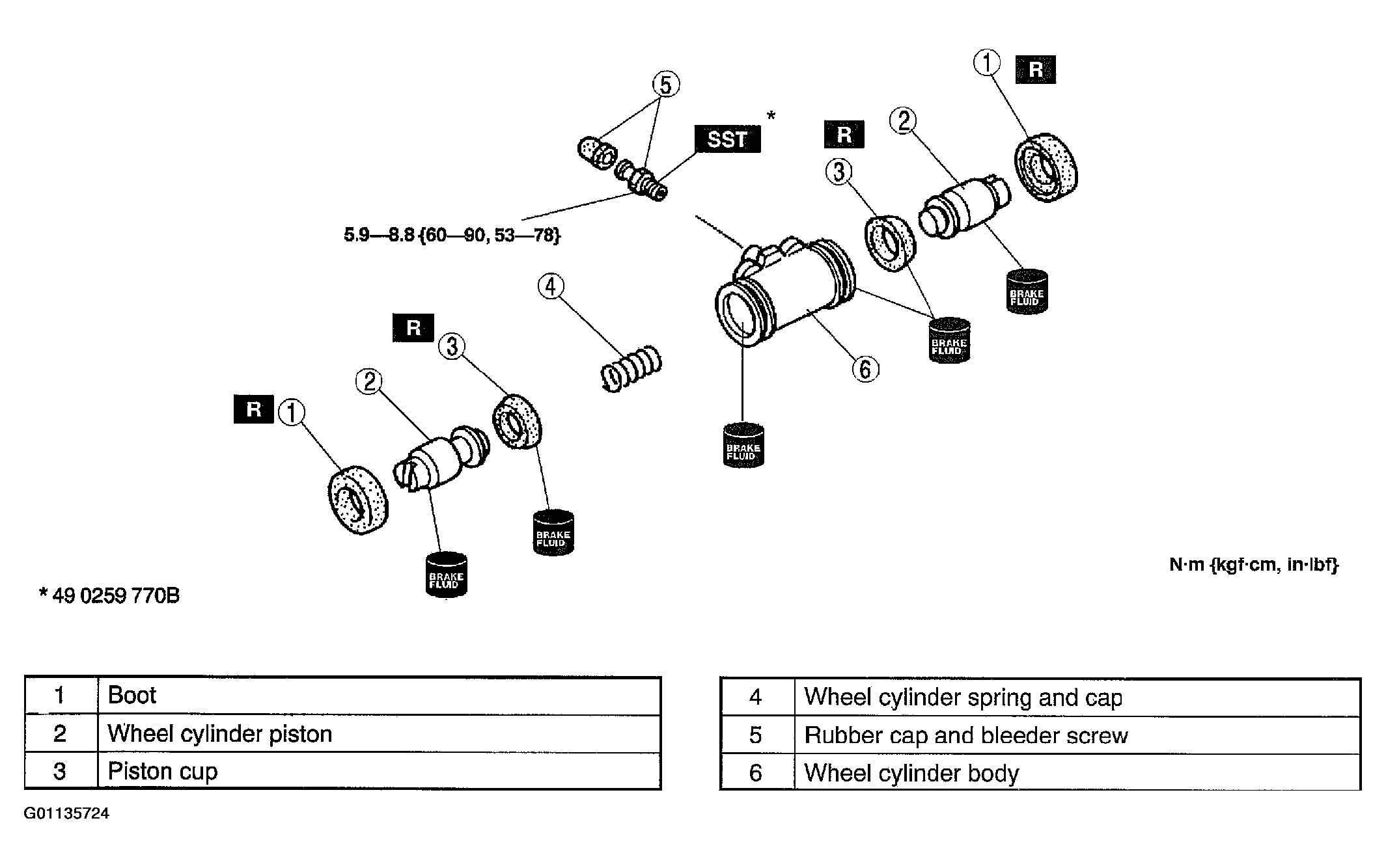

    Fig 1: Disassembling/Assembling Wheel Cylinder
    G01135724Courtesy of MAZDA MOTORS CORP.
