Active Command Modes Table

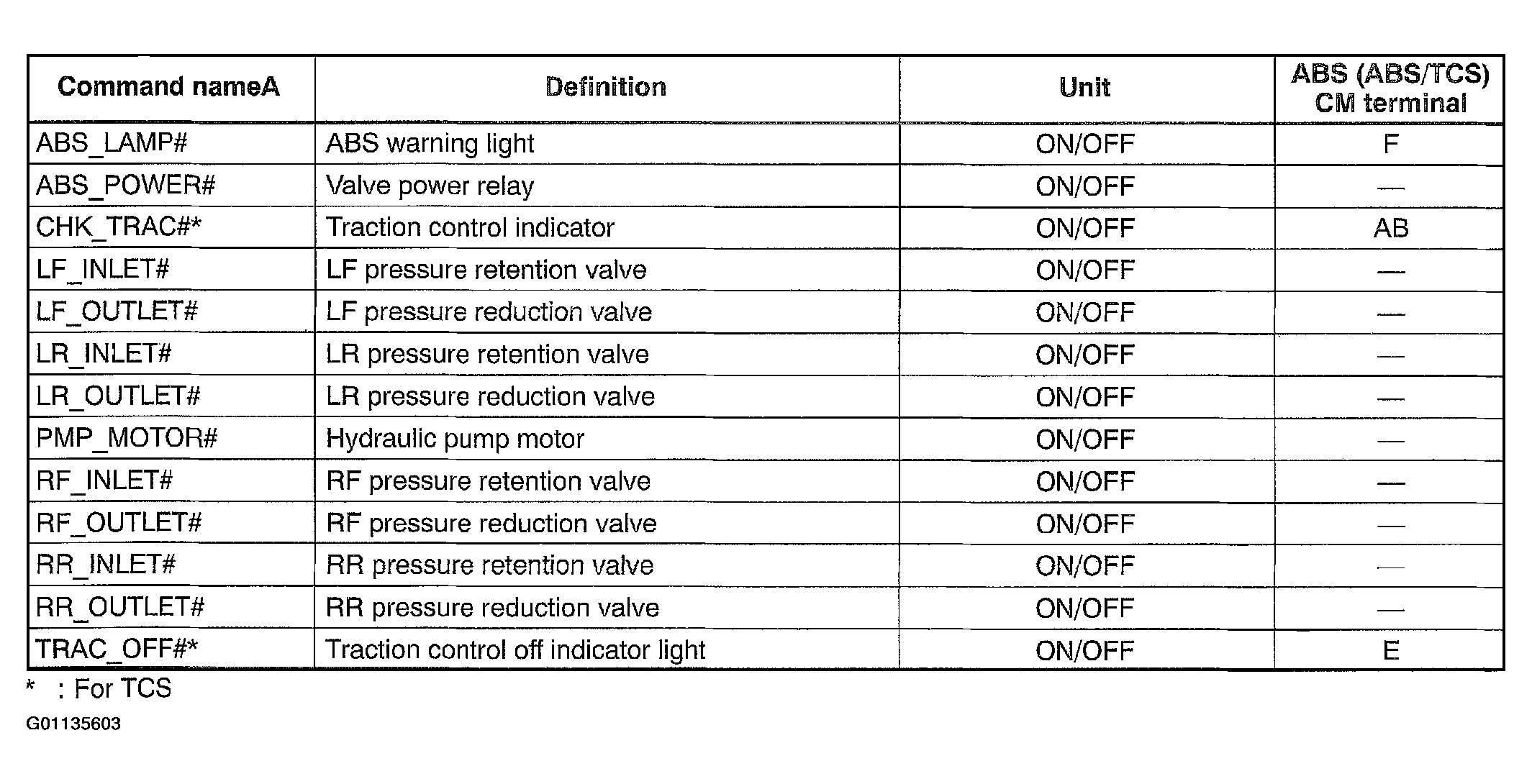

Fig 1: Active Command Modes Table

Courtesy of MAZDA MOTORS CORP.

NOTE:

When operating each valve forcibly, turn ABS_POWER# on, and then each command on. ABS_POWER# regulates the power supply for the eight valves.
