Brake Fluid Inspection

  1. Depress the brake pedal several times, and inspect for leakage of the brake line system.
  2. Verify that the fluid level in the reservoir is between the MAX and MIN lines on the reservoir.
    • If the fluid level is extremely low, inspect the brake system for leakage.

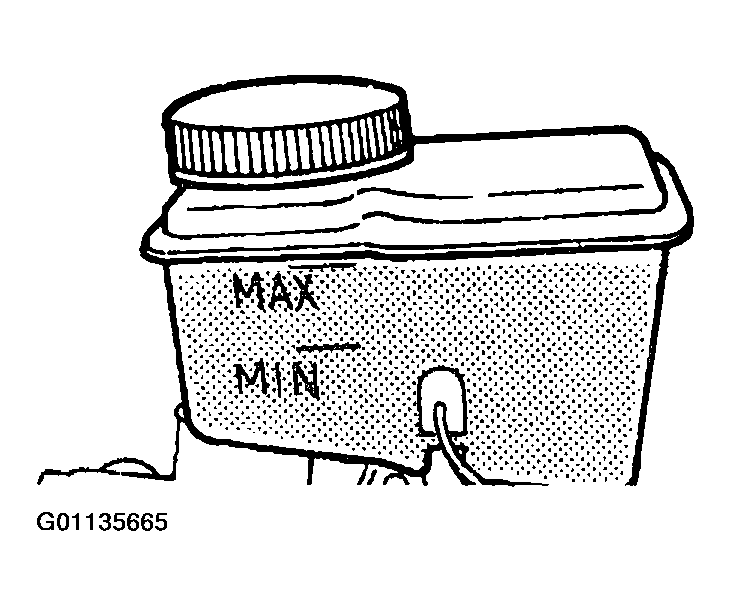

Fig 1: Brake Fluid Reservoir
G01135665Courtesy of MAZDA MOTORS CORP.
