Brakes Technical Data

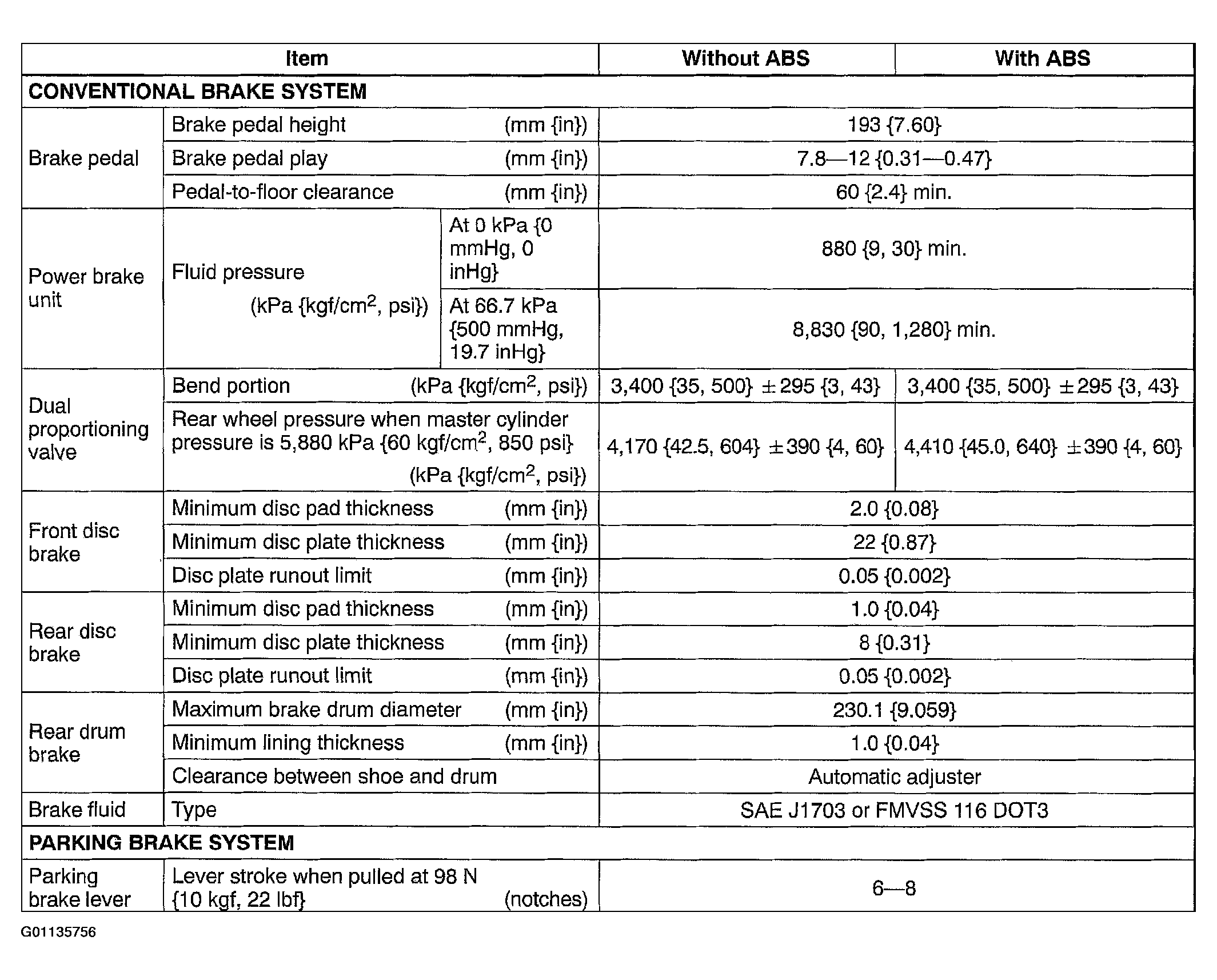

Fig 1: Brake Systems Technical Data

G01135756

Courtesy of MAZDA MOTORS CORP.
