DTC B1484: Brake Switch Harness

Diagnostic Procedure

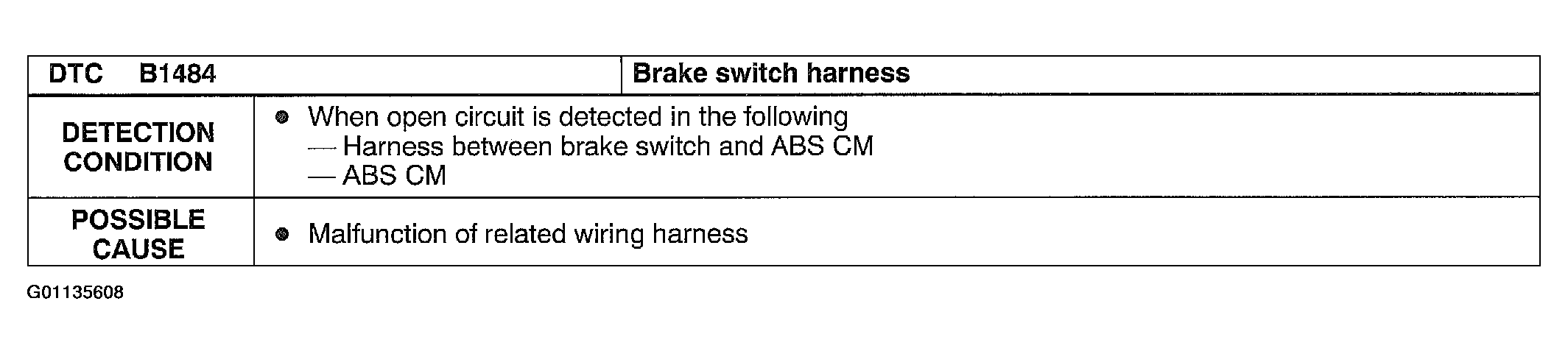

Fig 1: DTC B1484 Detection Conditions & Possible Cause
G01135608Courtesy of MAZDA MOTORS CORP.

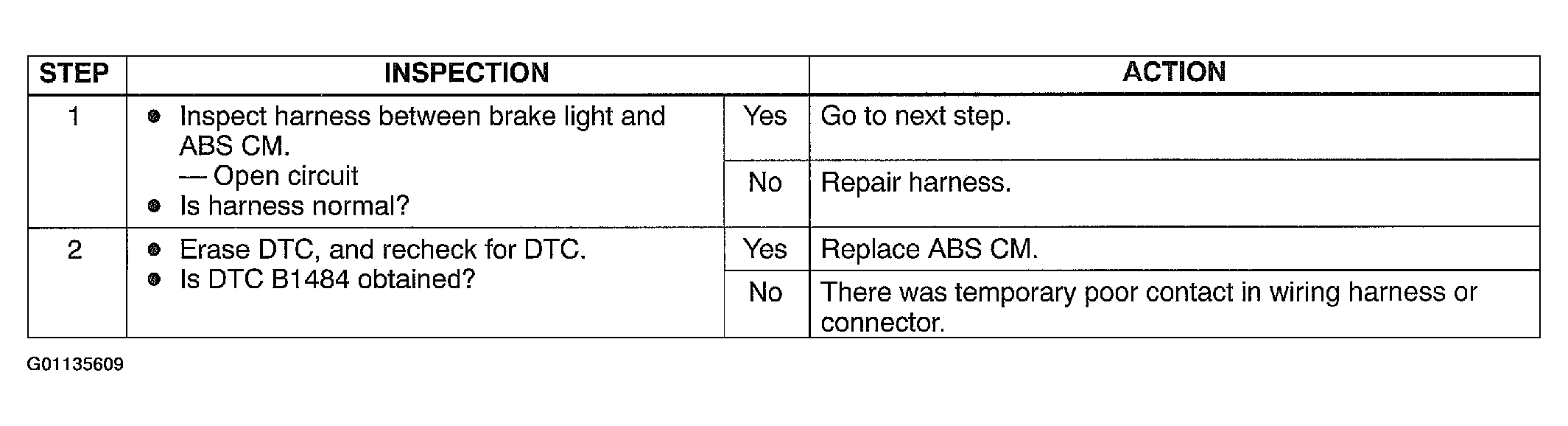

Fig 2: DTC B1484 Inspection & Action
G01135609Courtesy of MAZDA MOTORS CORP.
