Rear Brake (Drum) Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.
  3. After installation,
    1. Depress the brake pedal several times. Then verify that the brakes do not drag.
    2. Inspect for the pedal-to-floor clearance.
    3. Inspect for the parking brake lever stroke.

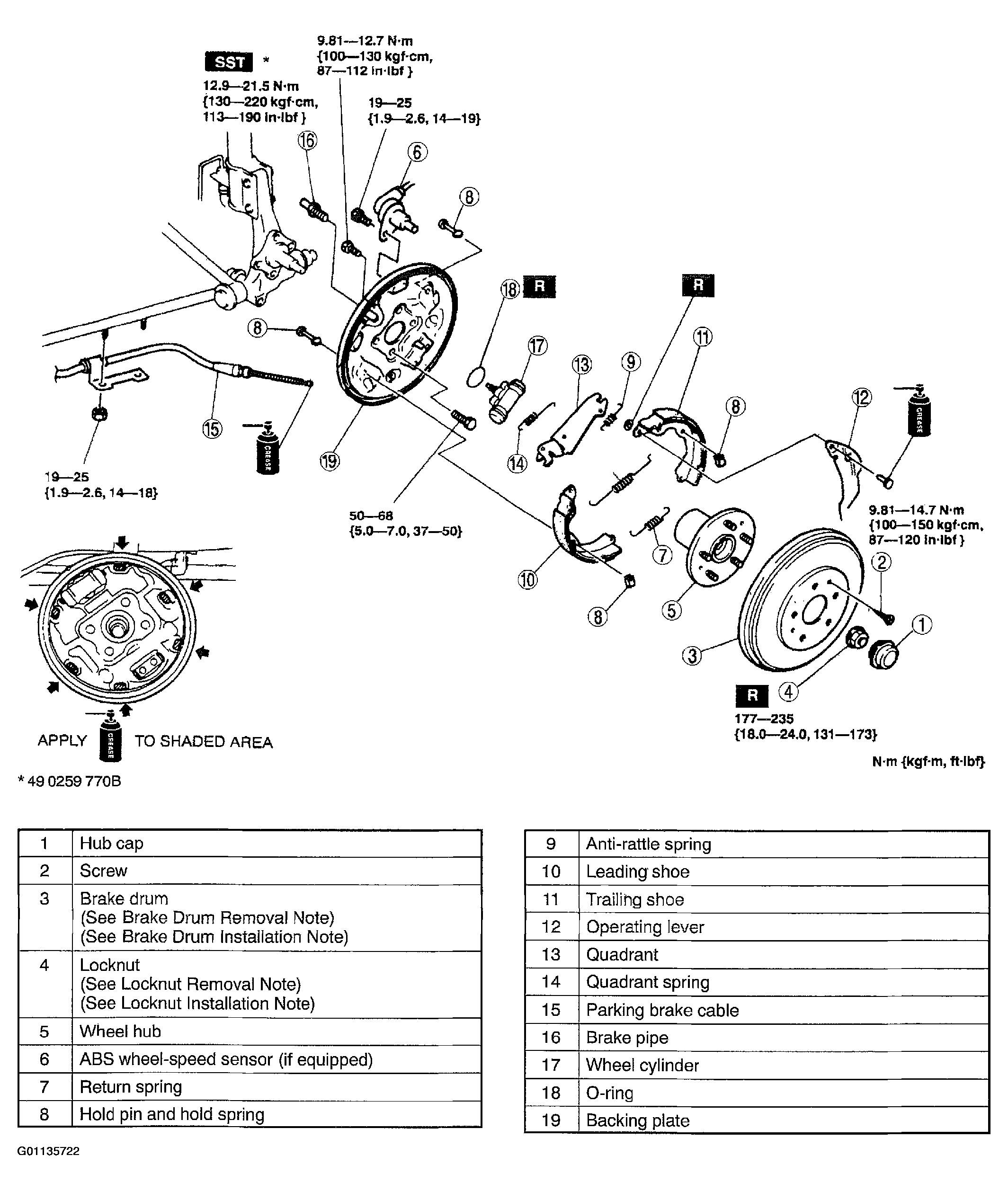

    Fig 1: Removing/Installing Rear Brake (Drum)
    G01135722Courtesy of MAZDA MOTORS CORP.
