Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

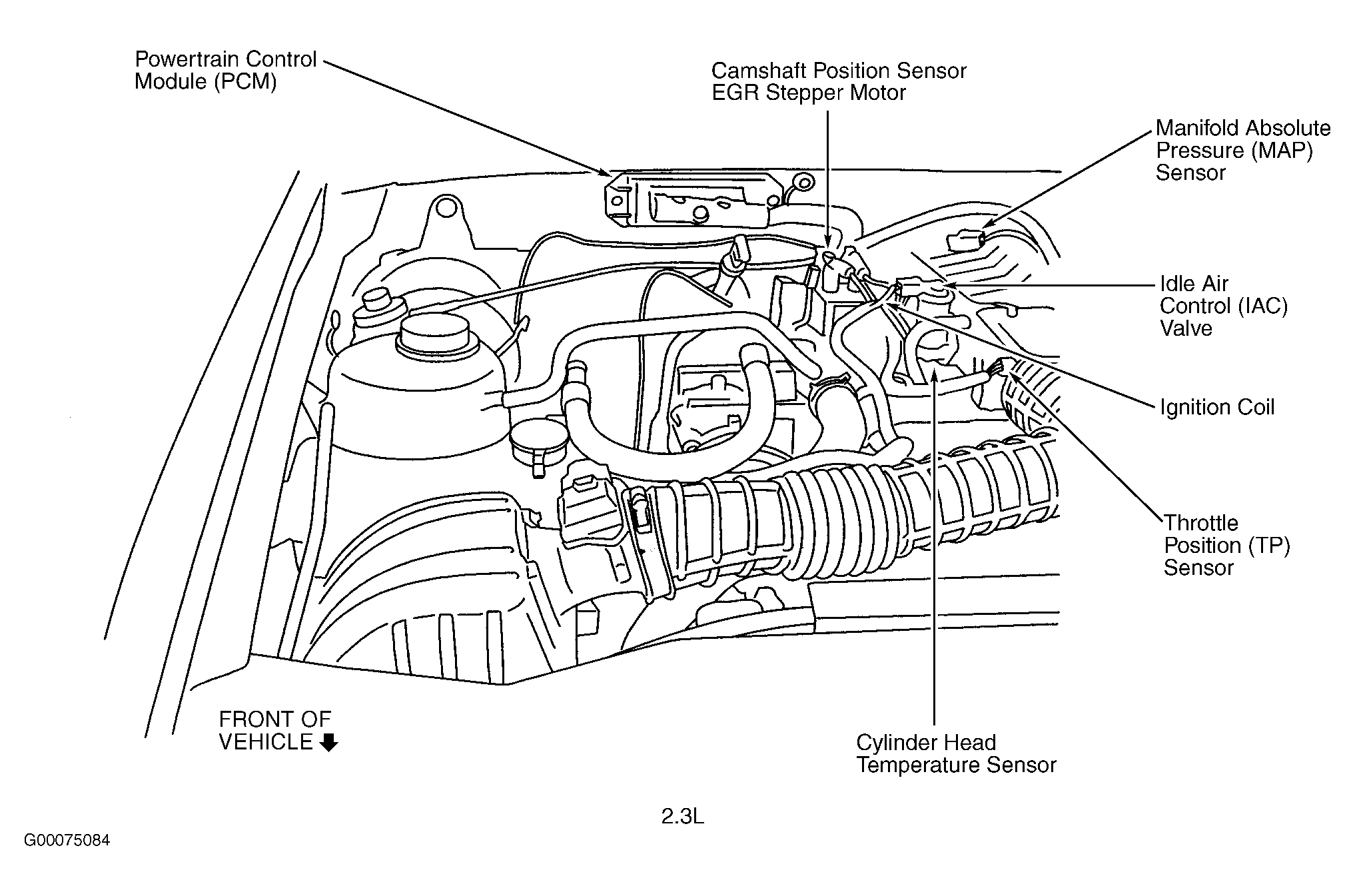

Fig 1: Left Side Of Engine Compartment (2.3L)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Right Side Of Engine Compartment (2.3L)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Engine Compartment (3.0L)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Engine Compartment (4.0L)

Courtesy of MAZDA MOTORS CORP.
