Fuel Pressure Release

Install Fuel Pressure Gauge (49-UN01-010) to fuel pressure relief valve (Schrader valve) located on fuel rail. See Fig 1 . Place fuel pressure gauge drain hose in suitable container and release fuel pressure slowly.

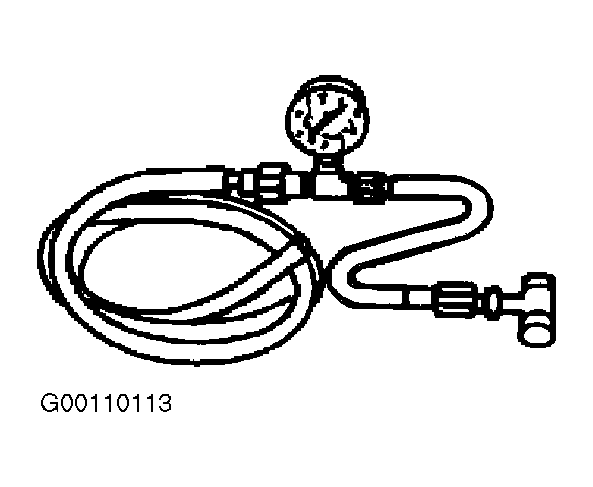

Fig 1: Identifying Fuel Pressure Gauge

Courtesy of MAZDA MOTORS CORP.
