Description & Operation

Power window system is controlled by Generic Electronic Module (GEM). See Fig 1. Main switch (master switch) controls all windows. Sub-switch, on passenger's door, controls passenger's window only. One touch function lowers the driver's window fully when master window control switch button is pressed firmly and released. To stop window during one-touch operation, press window switch again. One-touch function is part of main switch.

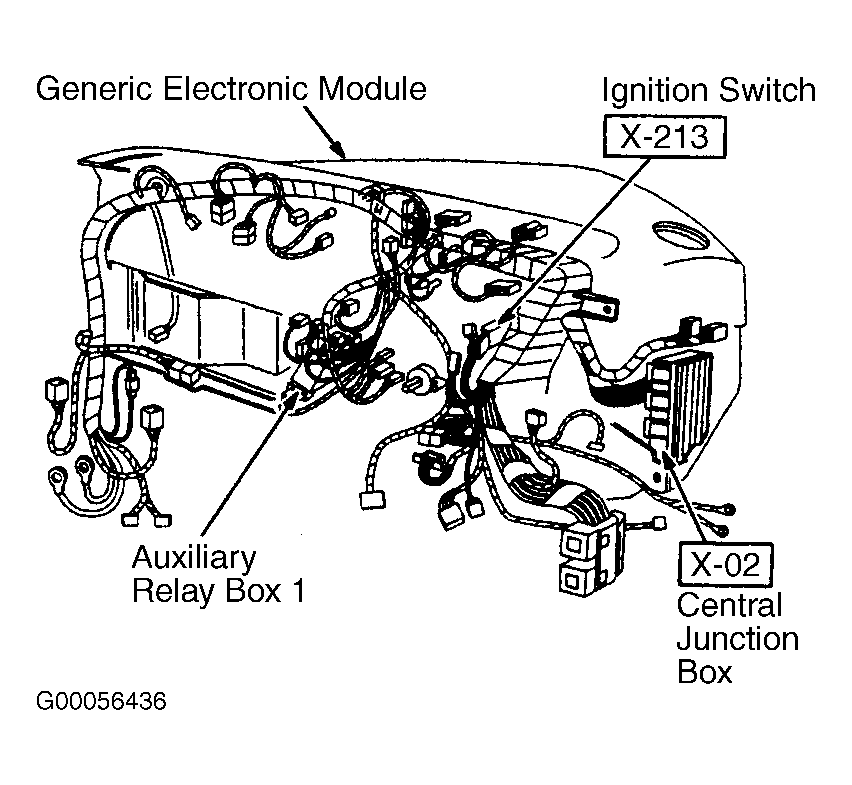

Fig 1: Locating Power Window Components

Courtesy of MAZDA MOTORS CORP.

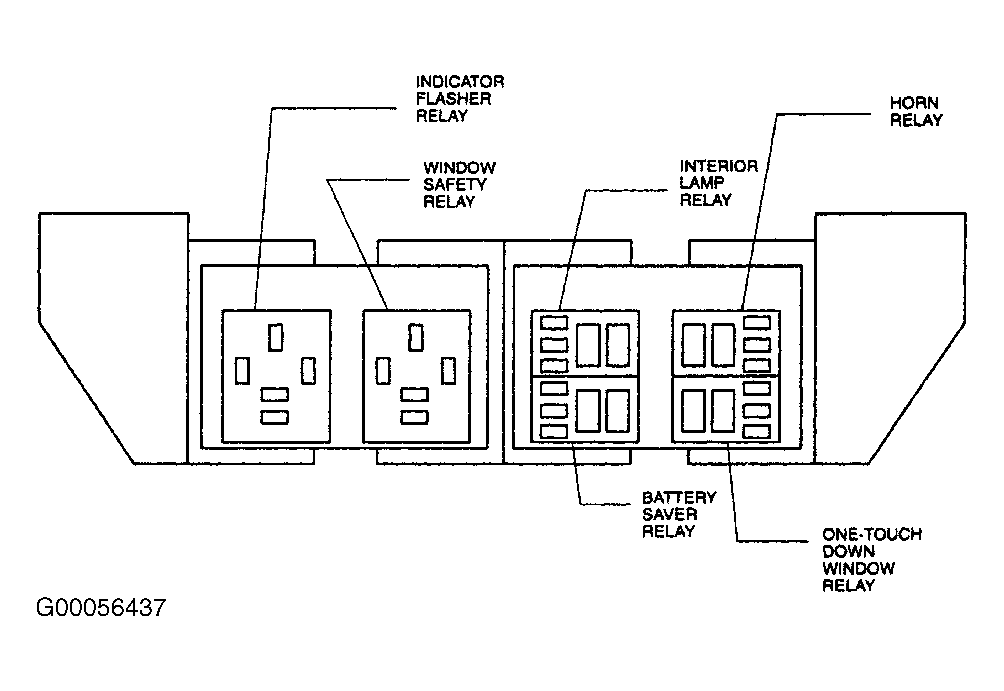

Fig 2: Identifying Relays In Auxiliary Relay Box

Courtesy of MAZDA MOTORS CORP.
