Front Speed Sensor (4X4) Removal/Installation

Remove disc plate shield. For 2001 models refer to FRONT BRAKE ROTOR and for 2002 models refer to FRONT BRAKE ROTOR .
Disconnect the front speed sensor connector and unclip the front speed sensor wire from the vehicle frame.
Remove the bolt (1) and front speed sensor (2).
Install in reverse order of removal.

Tightening Torque
1. 7-9 N.m (71-92 kgf.cm, 63-79 in.lbf)

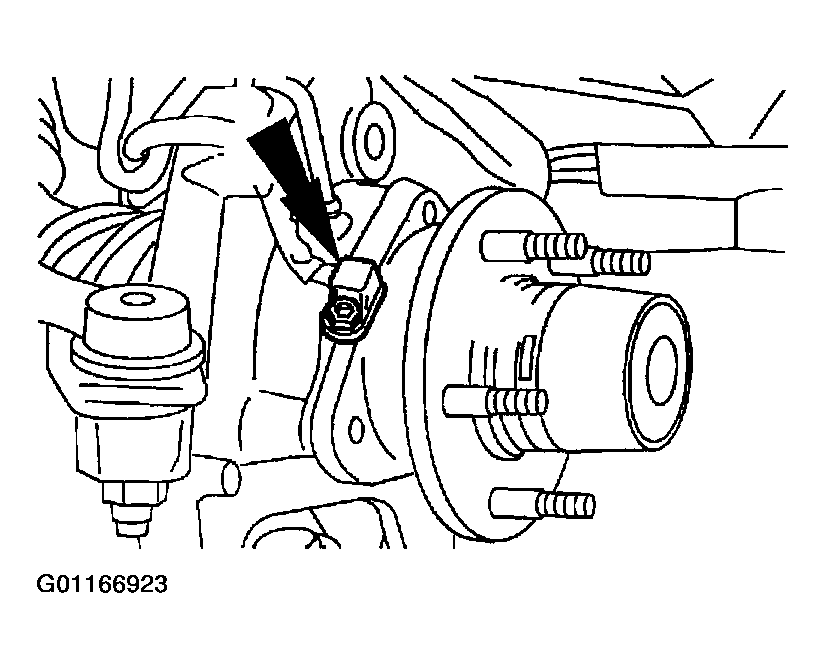

Fig 1: Removing/Installing Front Speed Sensor (4x4)
Courtesy of MAZDA MOTORS CORP.
