Module Communication Index: Notes

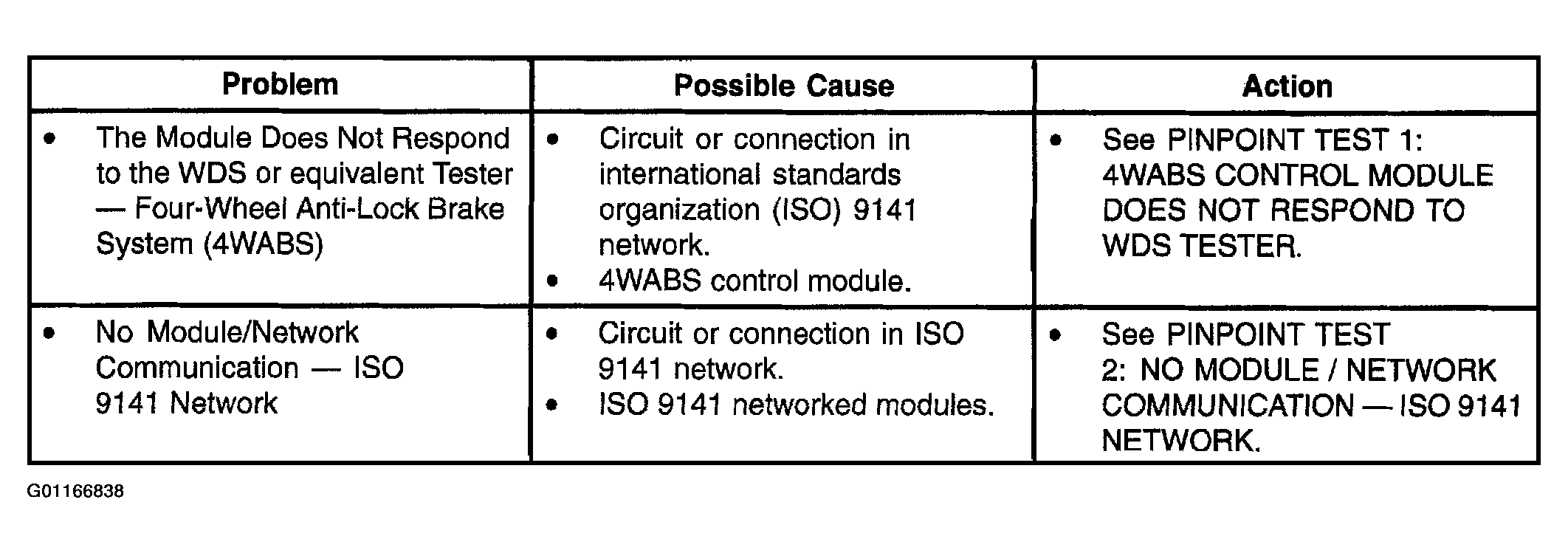

Fig 1: Module Communication Index (1 Of 2)
G01166838Courtesy of MAZDA MOTORS CORP.

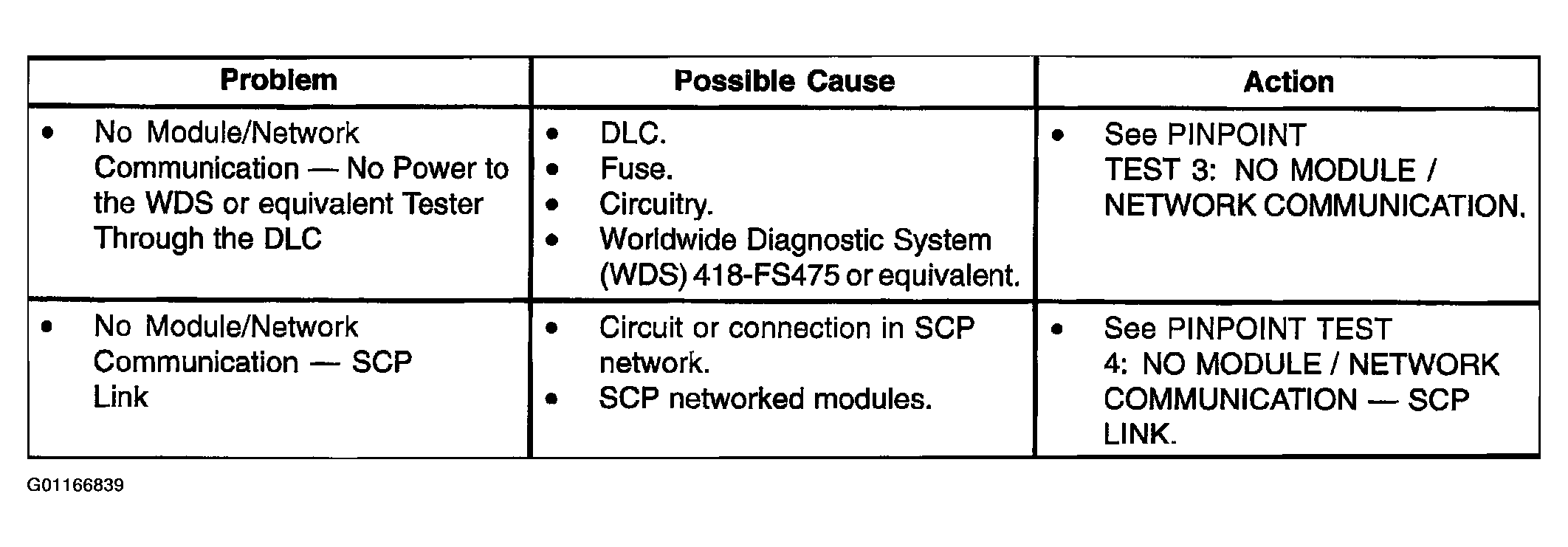

Fig 2: Module Communication Index (2 Of 2)
G01166839Courtesy of MAZDA MOTORS CORP.
