2002
>>
B4000 Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Anti-Lock/Traction Control System
>>
Module Communication Index
>>
Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network

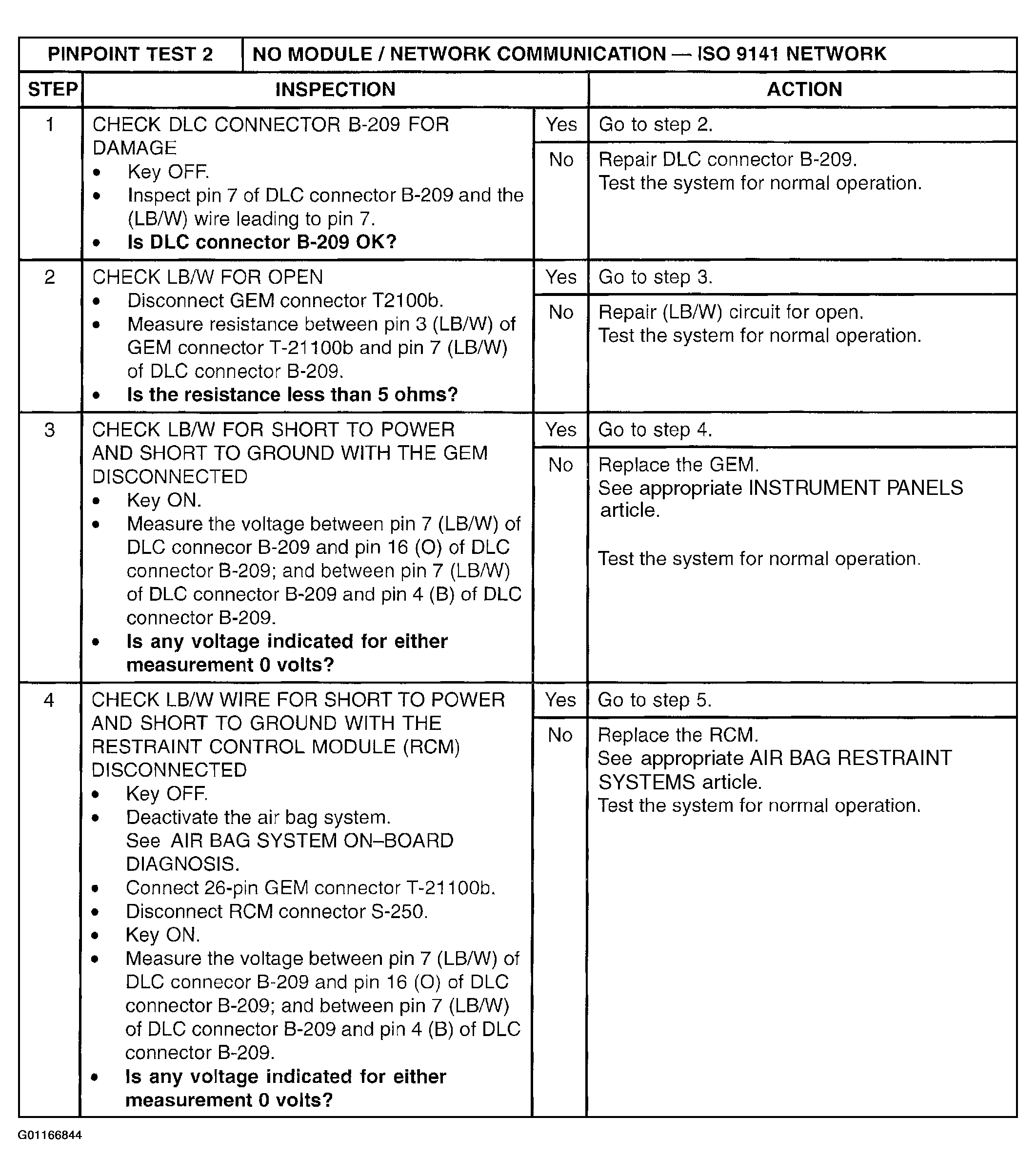

Fig 1: Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

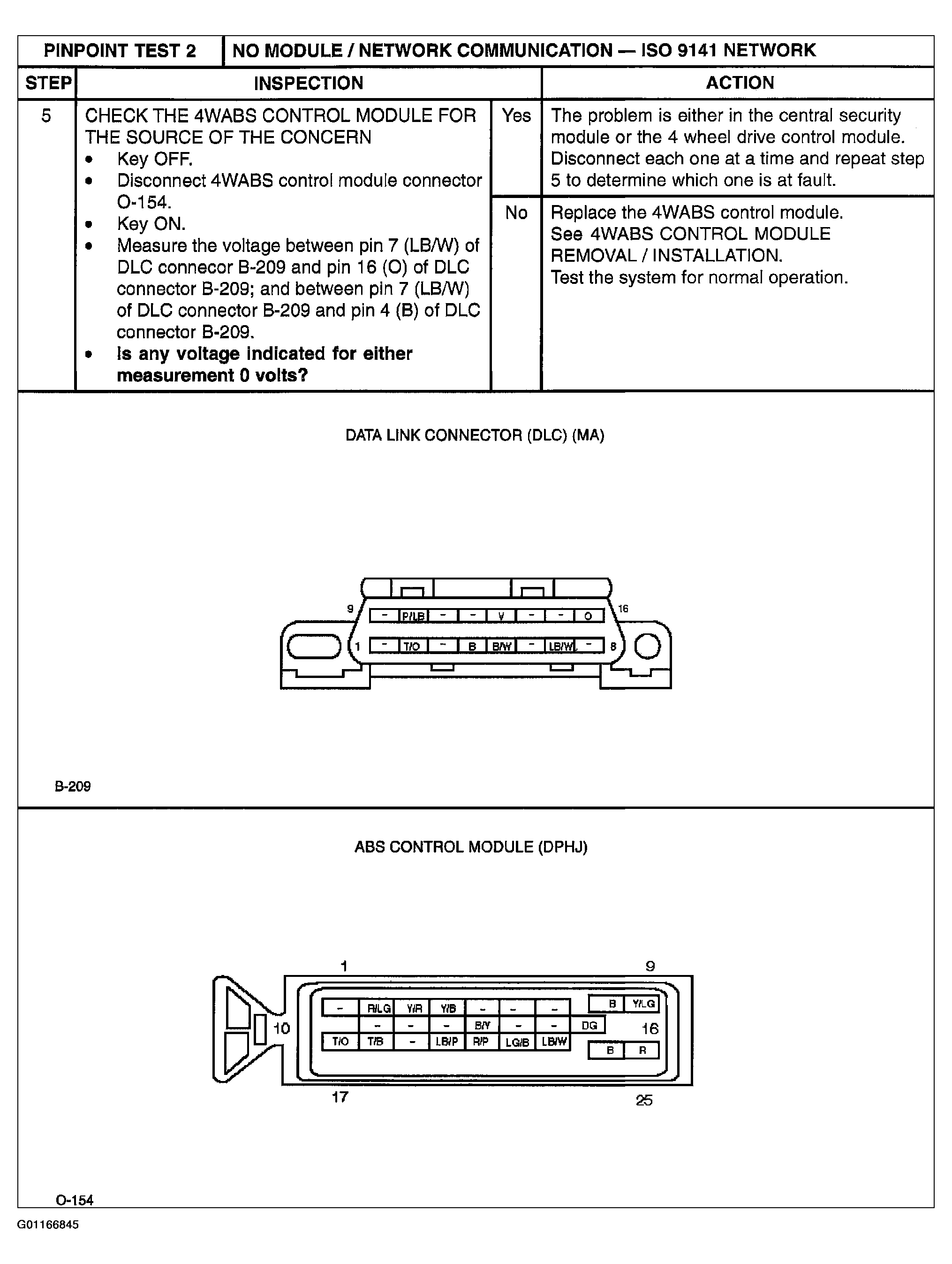

Fig 2: Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Step 5 & Connectors B-209 & O-154 Terminal Identification)
Courtesy of MAZDA MOTORS CORP.

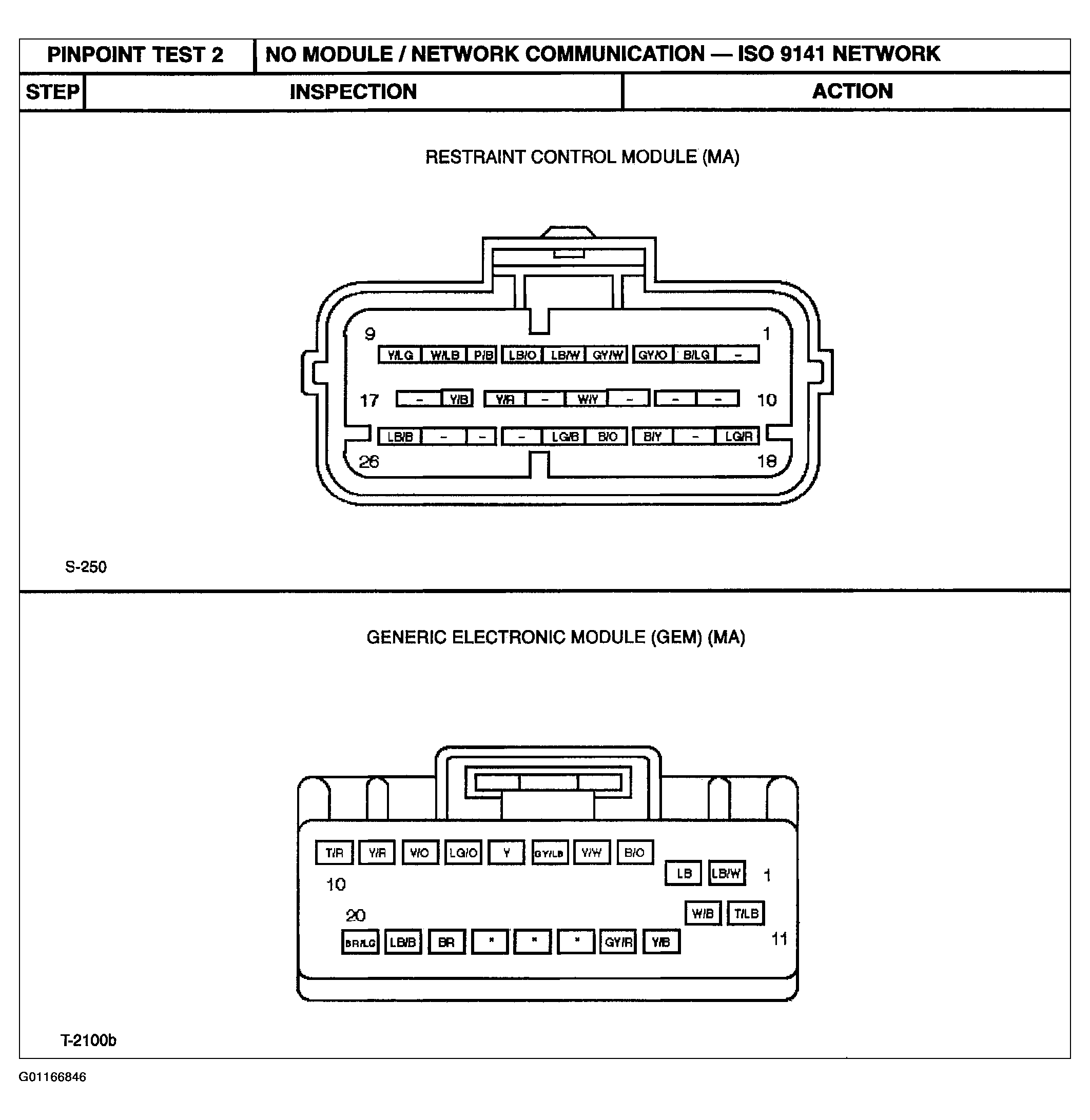

Fig 3: Pinpoint Test 2: Identifying Connectors S-250 & T2100b Terminals
Courtesy of MAZDA MOTORS CORP.
