Pinpoint Test 3: No Module/Network Communication

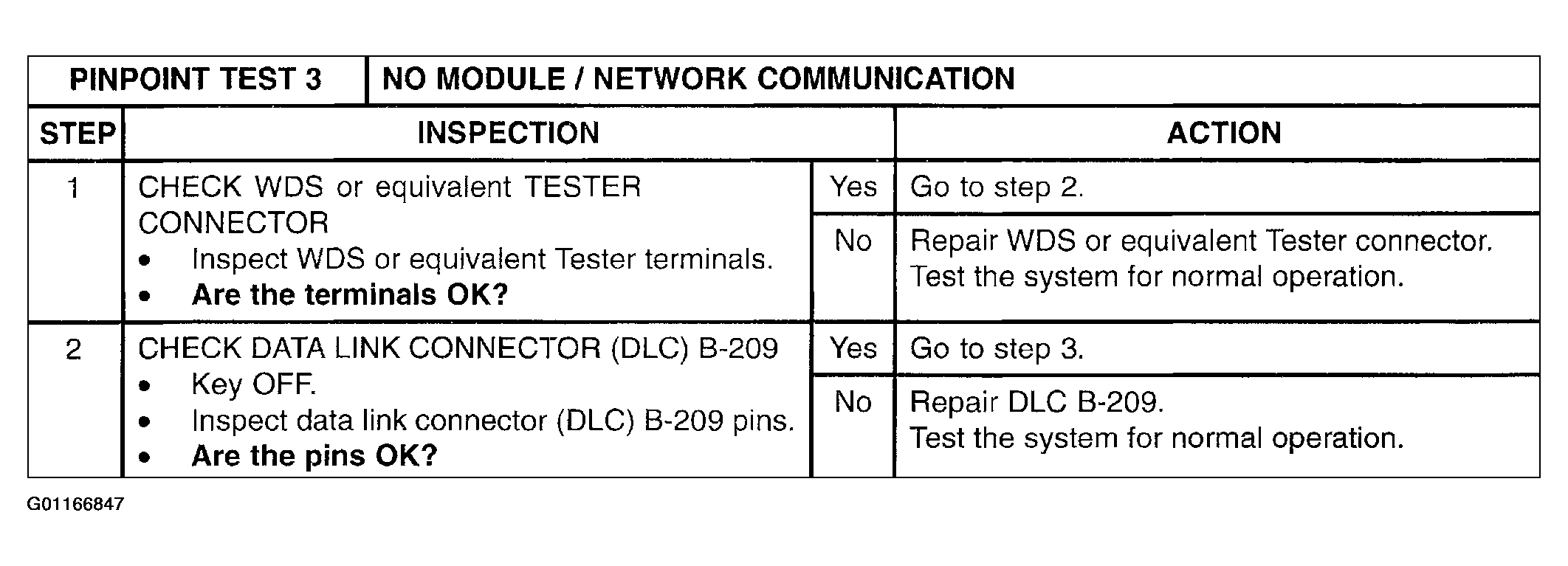

Fig 1: Pinpoint Test 3: No Module/Network Communication (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

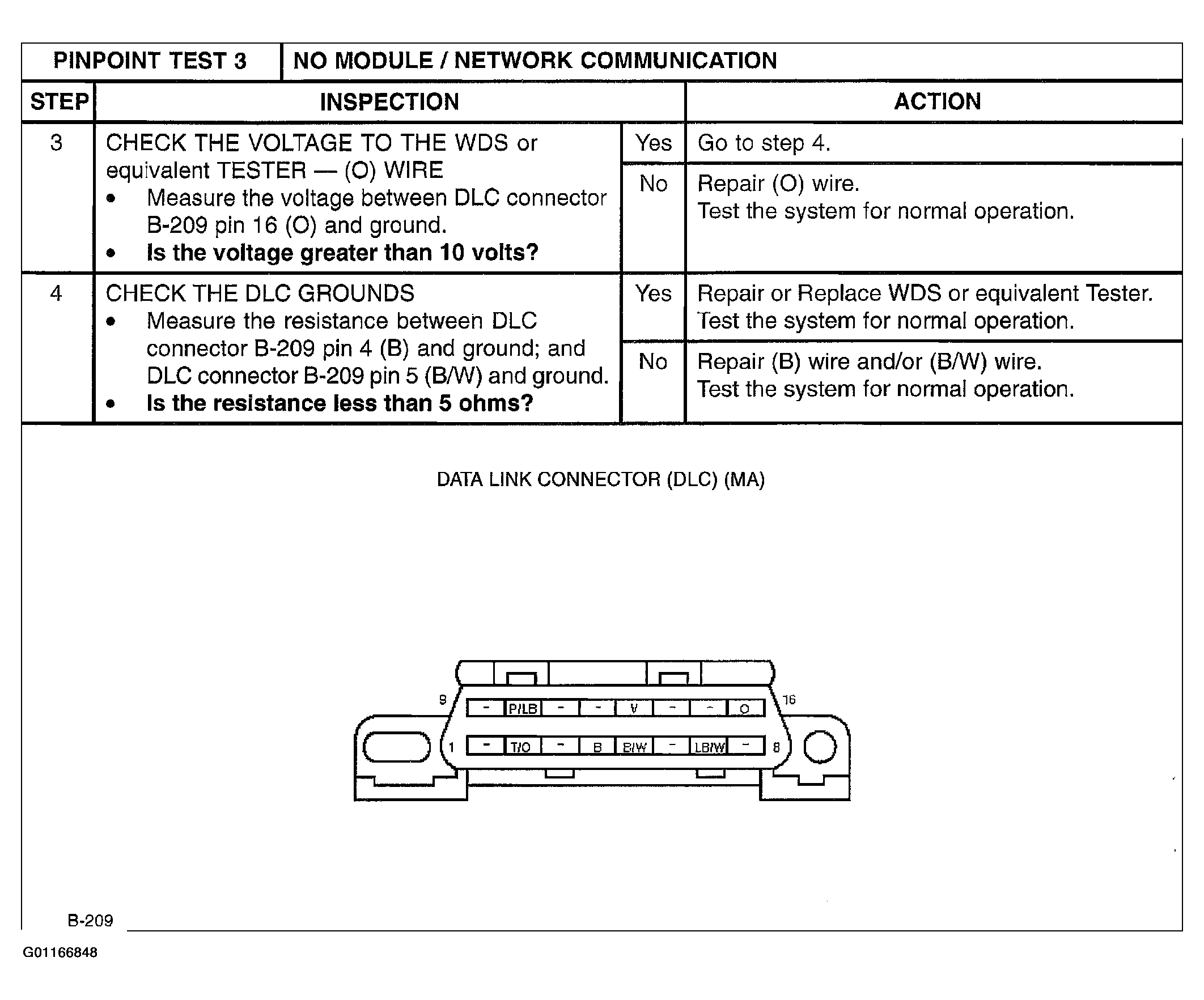

Fig 2: Pinpoint Test 3: No Module/Network Communication (Steps 3-4 & Connector B-209 Terminal Identification)

Courtesy of MAZDA MOTORS CORP.
