Crankshaft Position Sensor

CRANKSHAFT POSITION (CKP) SENSOR RESISTANCE

Application

⁽¹⁾ Ohms

B2300, B3000, B4000 & Tribute ⁽¹⁾

300-800

Miata

⁽²⁾

Millenia 2.3L

950-1250

Millenia 2.5L ⁽³⁾

520-580

MPV

315-385

Protege, Protege5 & 626⁽³⁾

⁽⁴⁾ 550

⁽¹⁾	Measure resistance between CKP sensor terminals. Specification is with sensor temperature at 68°F (20°C)

⁽²⁾	Information not available from manufacturer.

⁽³⁾	Measure resistance between sensor terminals "A" and "B". See Fig 1 .

⁽⁴⁾	Specification given is approximate.

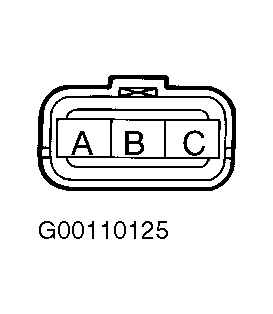

Fig 1: Identifying CKP Sensor Connector Terminals (Miata, Millenia, Protege, Protege5 & 626)

Courtesy of MAZDA MOTORS CORP.
