Front Speed Sensor Rotor Installation Note

  1. Press the new speed sensor rotor on the disc plate using a cylinder with a 79 mm (3.1 in) ID and a 96 mm (3.8 in) OD.

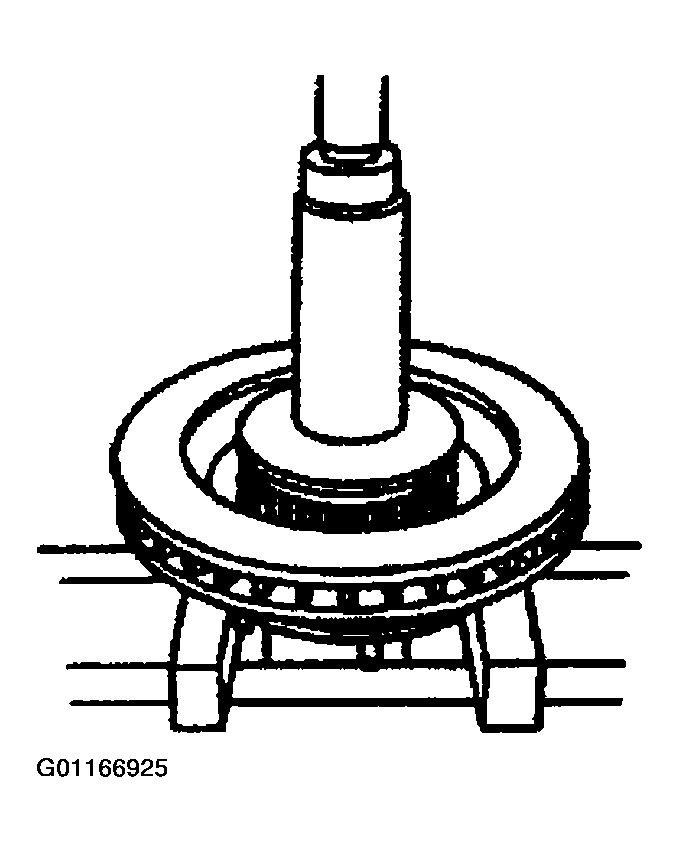

    Fig 1: Installing Speed Sensor Rotor On Disc Plate
    G01166925Courtesy of MAZDA MOTORS CORP.
