Pinpoint Test 1: Soft/Excessive Brake Pedal

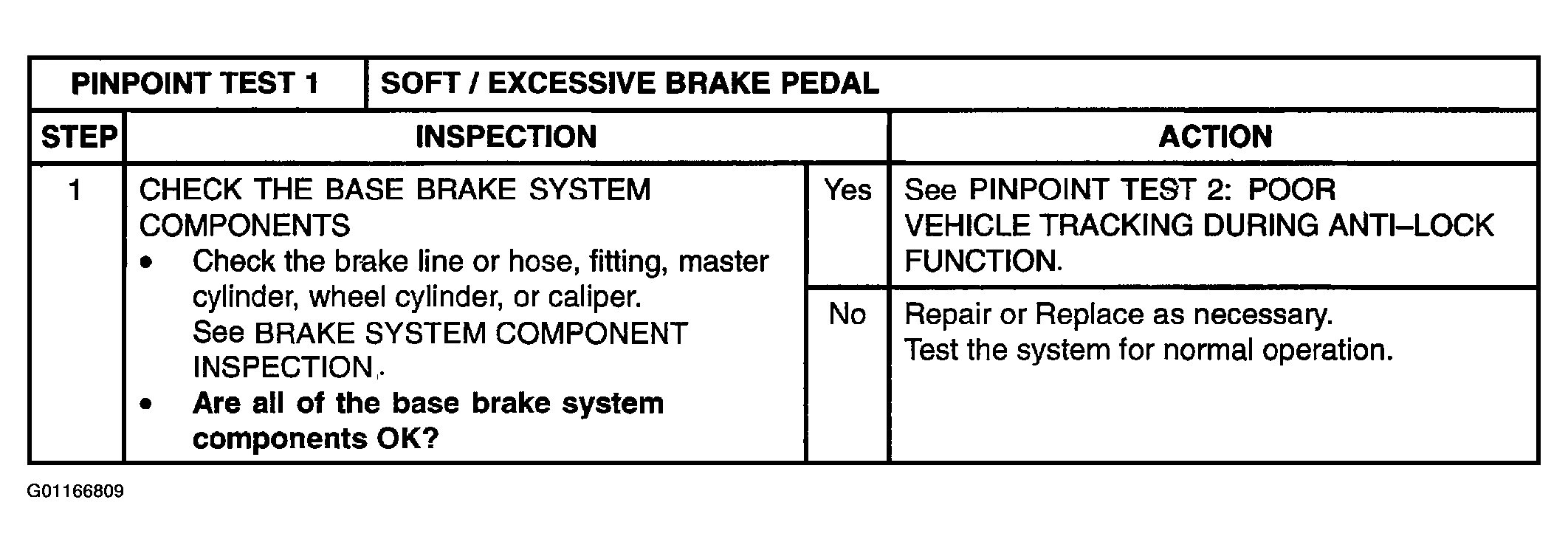

Fig 1: Pinpoint Test 1: Soft/Excessive Brake Pedal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
