Keyless Control Module Inspection: Notes

Measure the voltage at the keyless control module terminals as indicated below.
Disconnect the keyless control module connector before inspecting for continuity at terminals C and L.
- If not as specified, inspect the parts listed under "Action".
- If the parts and wiring harnesses are okay but the system still does not work properly, perform the keyless entry system symptom troubleshooting.

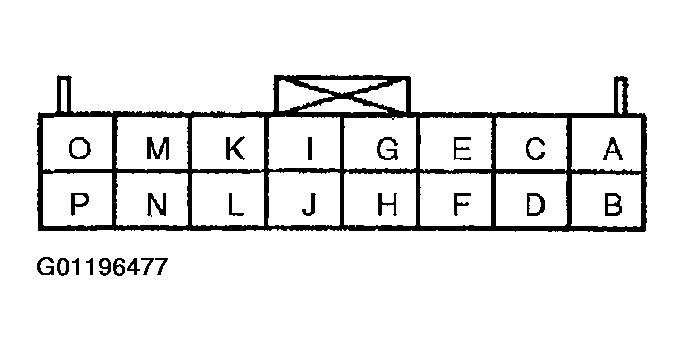

Fig 1: Identifying Keyless Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

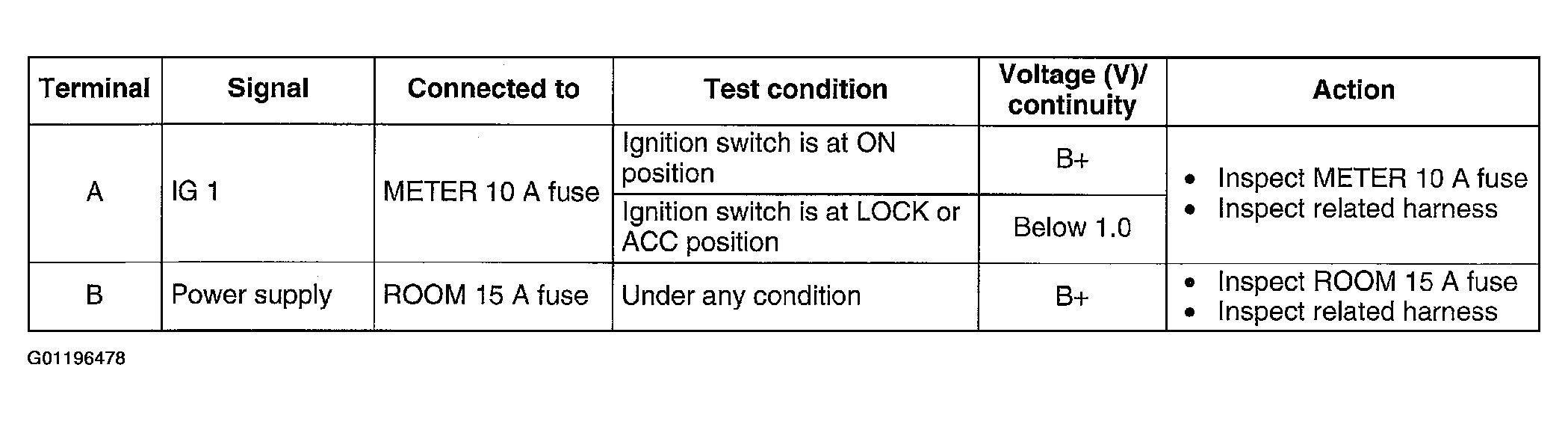

Fig 2: Terminal Voltage Table - Keyless Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

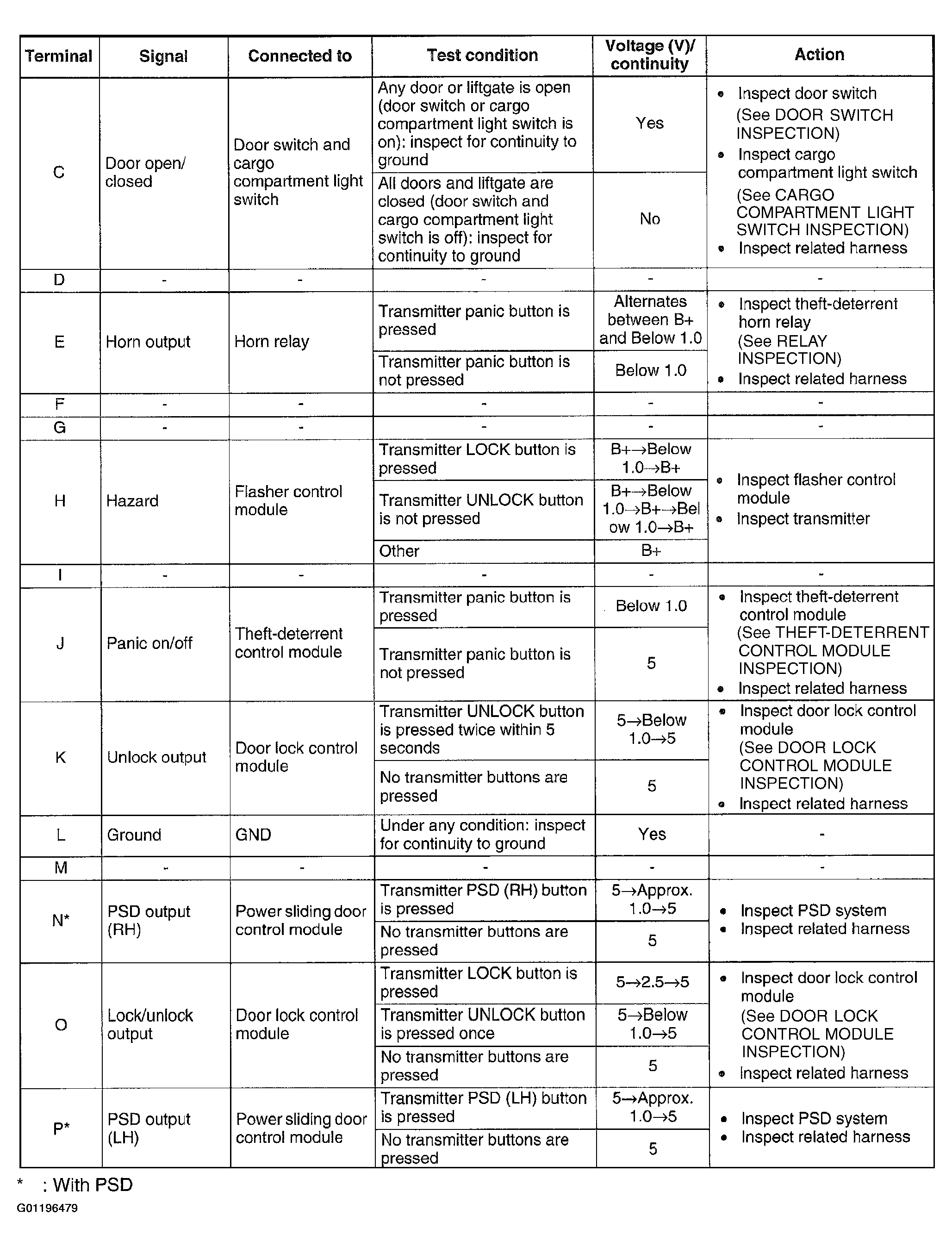

Fig 3: Terminal Voltage Table - Keyless Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
