Easy Closure Control Module Inspection

Remove the easy closure control module.
Inspect for continuity between the latch position switch terminals using an ohmmeter.
- If not as specified, replace the easy closure control module.

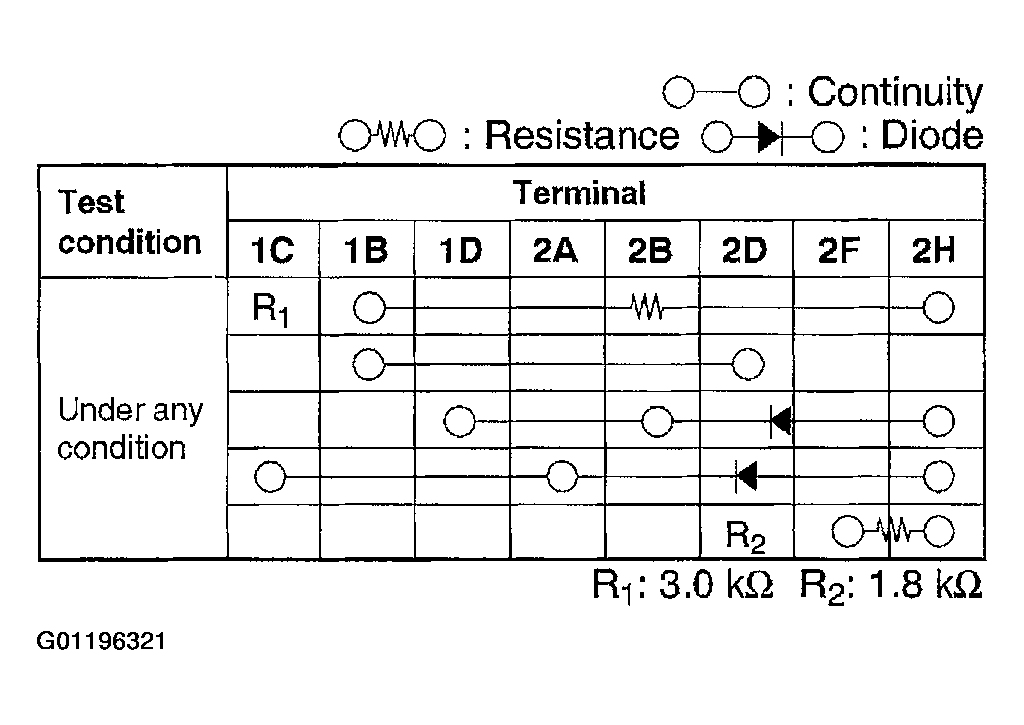

Fig 1: Inspecting Easy Closure Control Module Continuity

Courtesy of MAZDA MOTORS CORP.

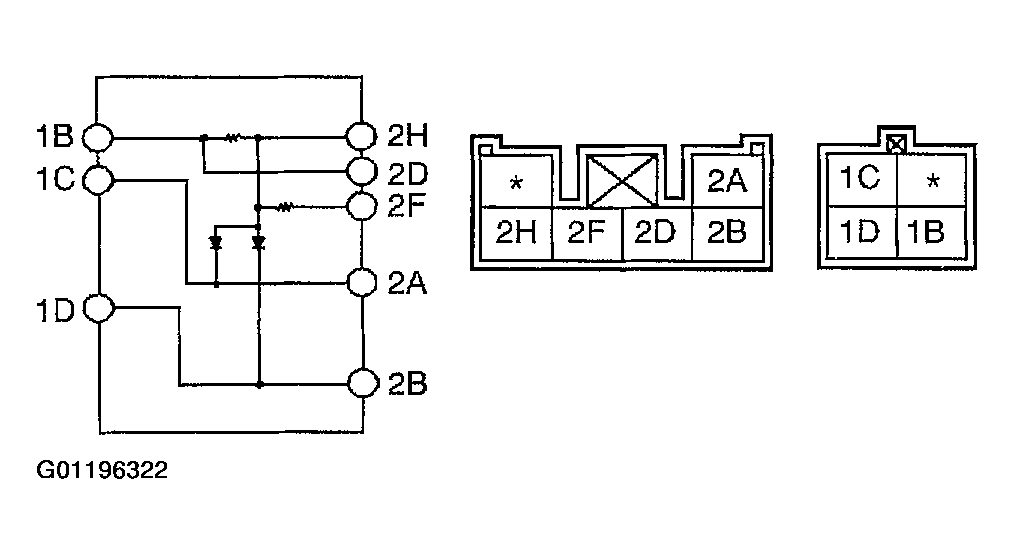

Fig 2: Identifying Easy Closure Control Module Connector

Courtesy of MAZDA MOTORS CORP.
