Power Outside Mirror Switch Inspection

  1. Remove the power outside mirror switch. See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .
  2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outside mirror switch.

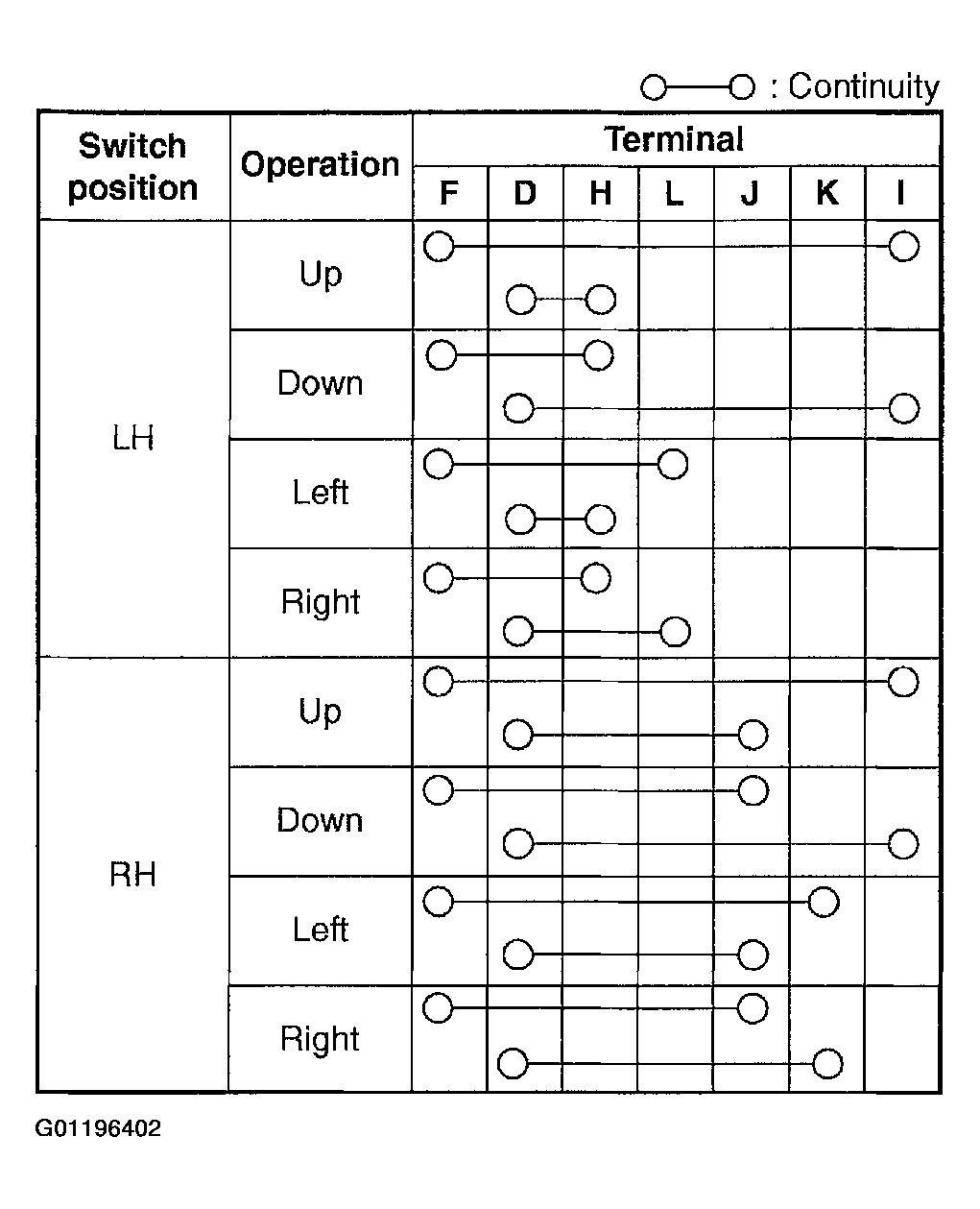

    Fig 1: Inspecting Power Outside Mirror Switch Continuity
    G01196402Courtesy of MAZDA MOTORS CORP.

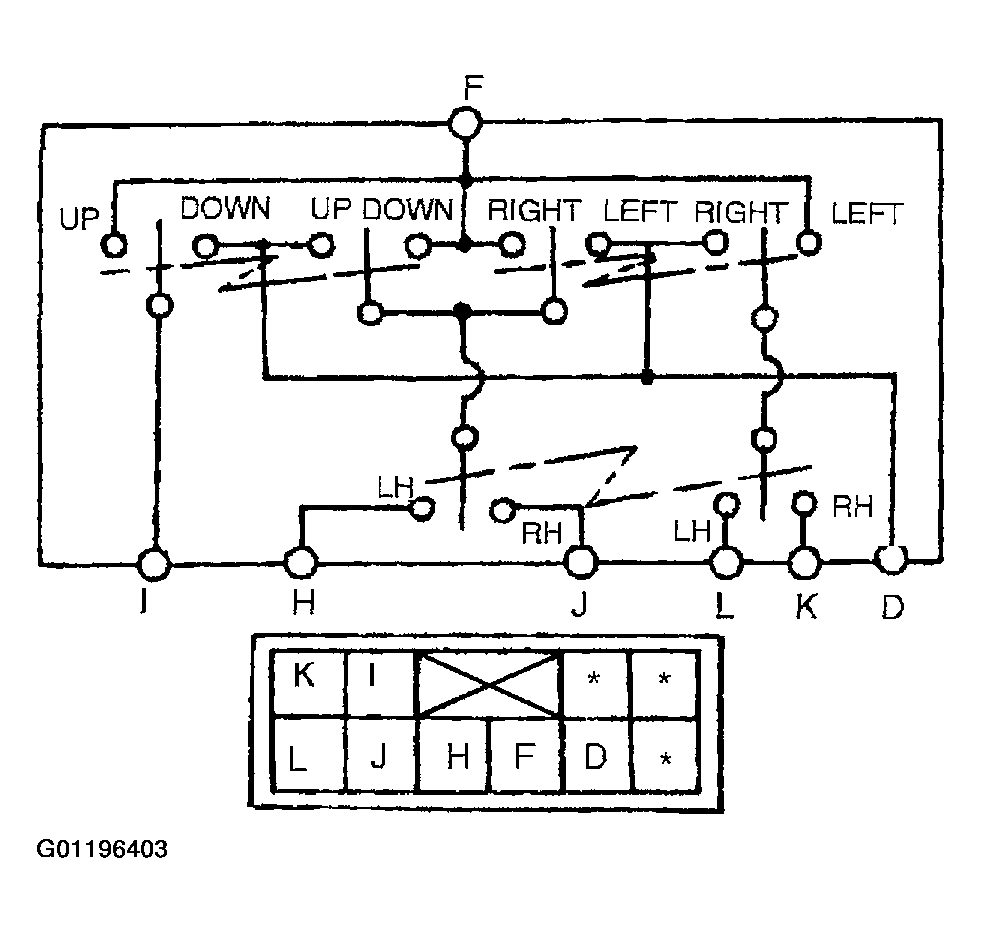

    Fig 2: Identifying Power Outside Mirror Switch Connector
    G01196403Courtesy of MAZDA MOTORS CORP.
