Front Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

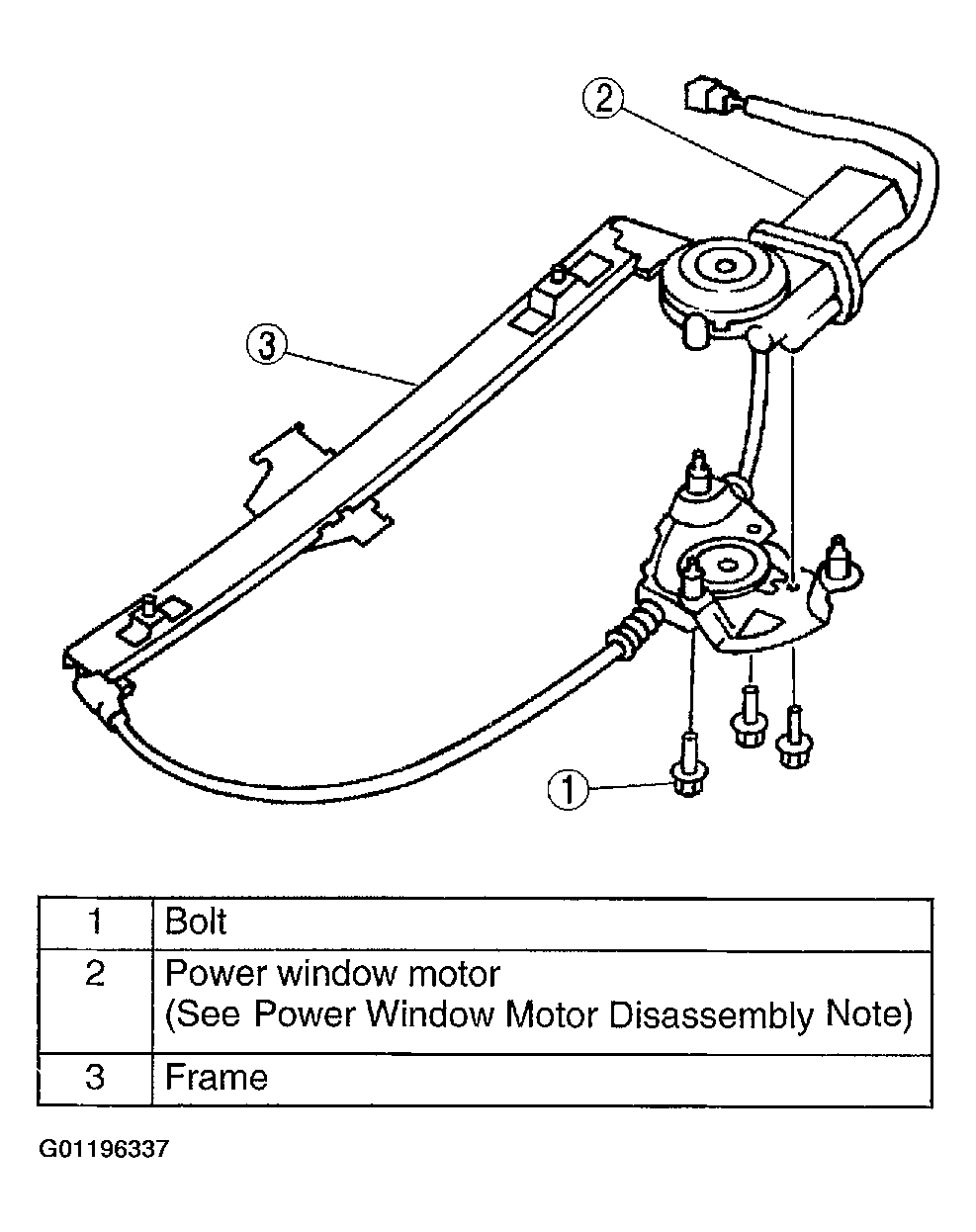

Fig 1: Disassembling Front Power Window Regulator
G01196337Courtesy of MAZDA MOTORS CORP.
