Power Window Motor Disassembly Note

  1. Hold the drum and the cable with the bracket to prevent them from being pulled out with the power window motor.

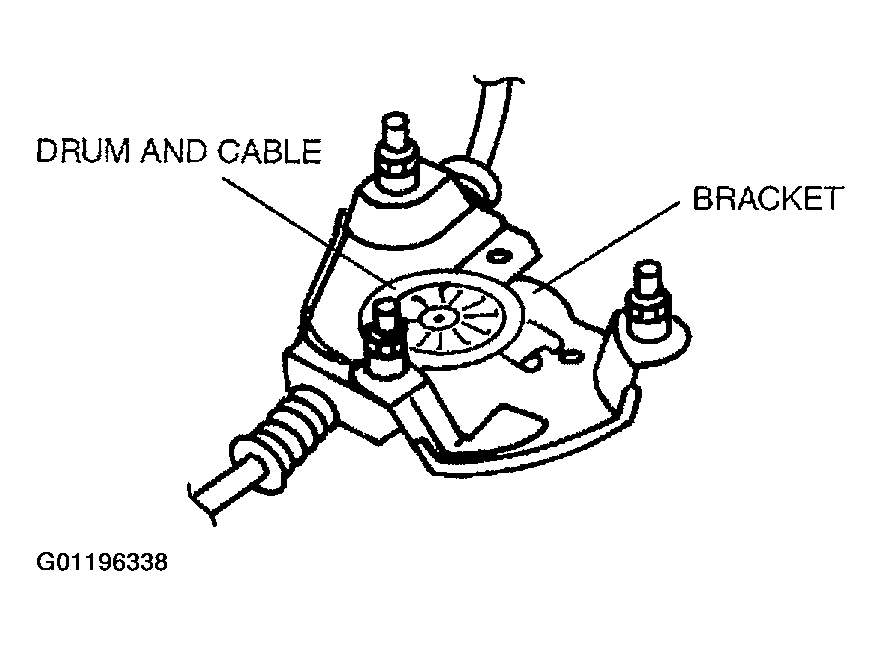

Fig 1: Holding Drum & Cable
G01196338Courtesy of MAZDA MOTORS CORP.
