Power Window Main Switch Inspection

Remove the power window main switch. See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .
When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.
Inspect for continuity between the power window main switch terminals using an ohmmeter.
- If not as specified, replace the power window main switch.

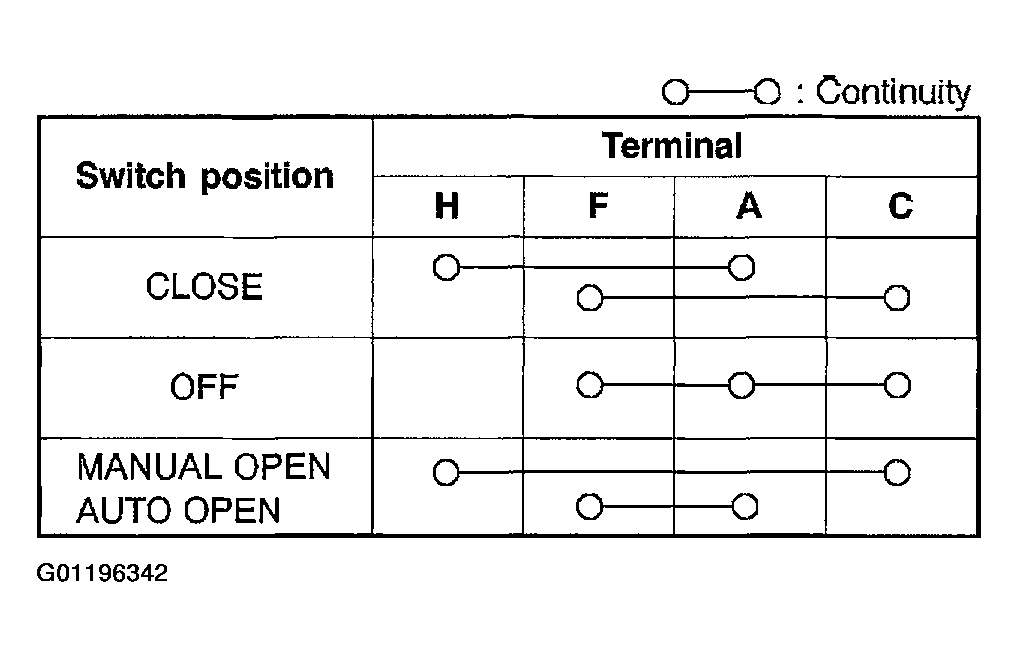

Fig 1: Inspecting Power Window Main Switch Continuity (Driver's Side)

Courtesy of MAZDA MOTORS CORP.

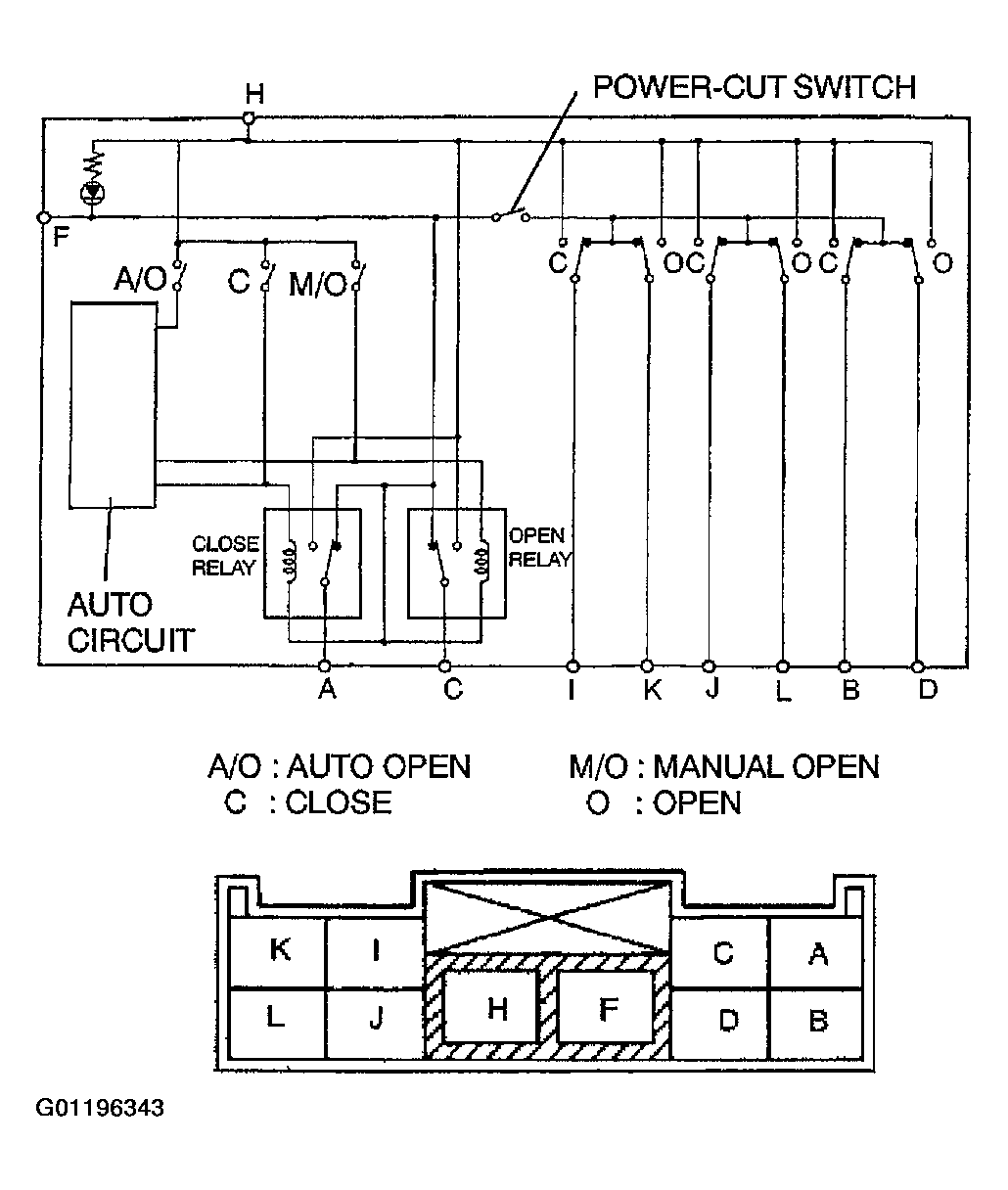

Fig 2: Identifying Power Window Main Switch Connector (Driver's Side)

Courtesy of MAZDA MOTORS CORP.

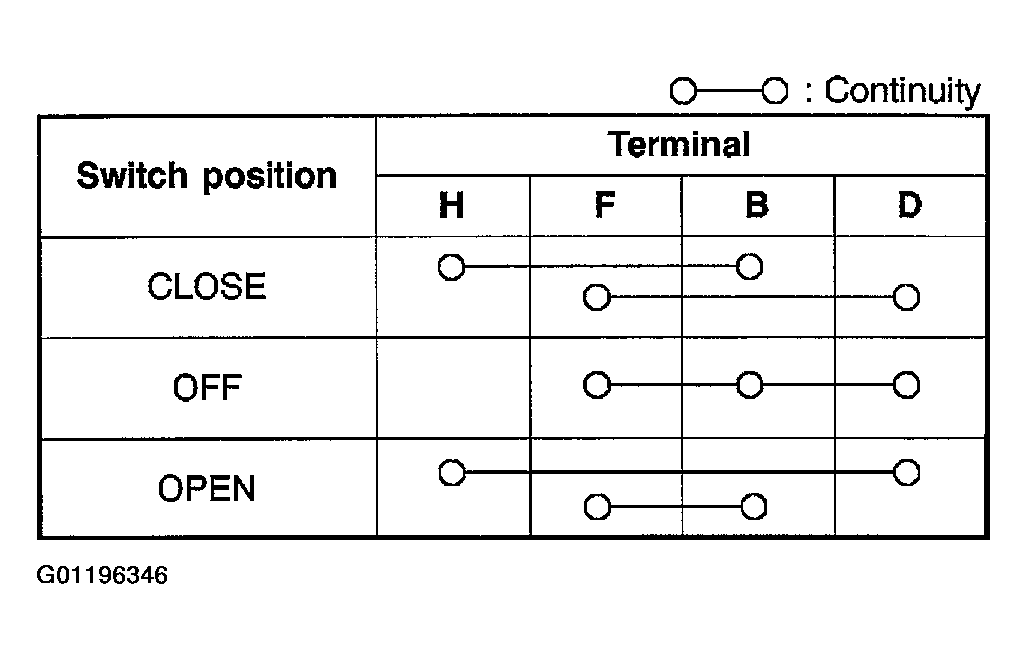

Fig 3: Inspecting Power Window Main Switch Continuity (Passenger's Side)

Courtesy of MAZDA MOTORS CORP.

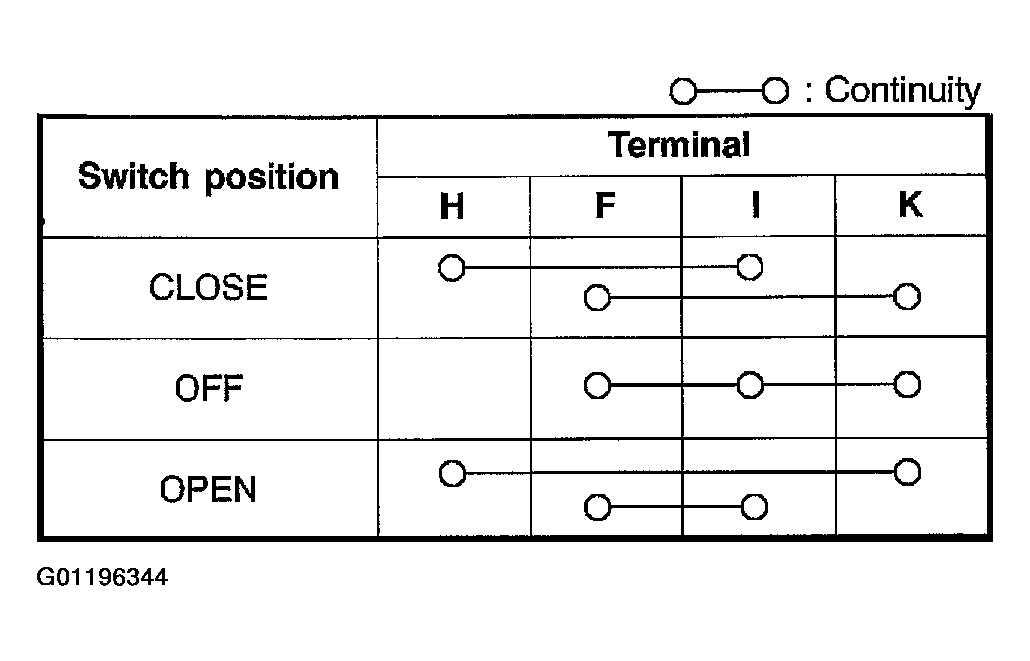

Fig 4: Inspecting Power Window Main Switch Continuity (Rear Right Side)

Courtesy of MAZDA MOTORS CORP.

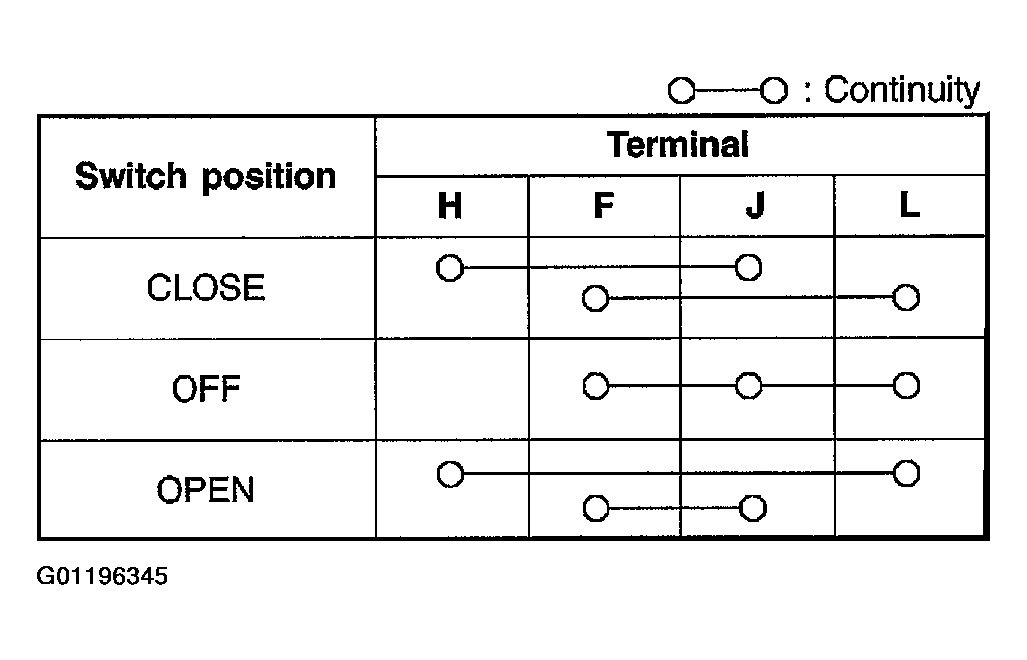

Fig 5: Inspecting Power Window Main Switch Continuity (Rear Left Side)

Courtesy of MAZDA MOTORS CORP.

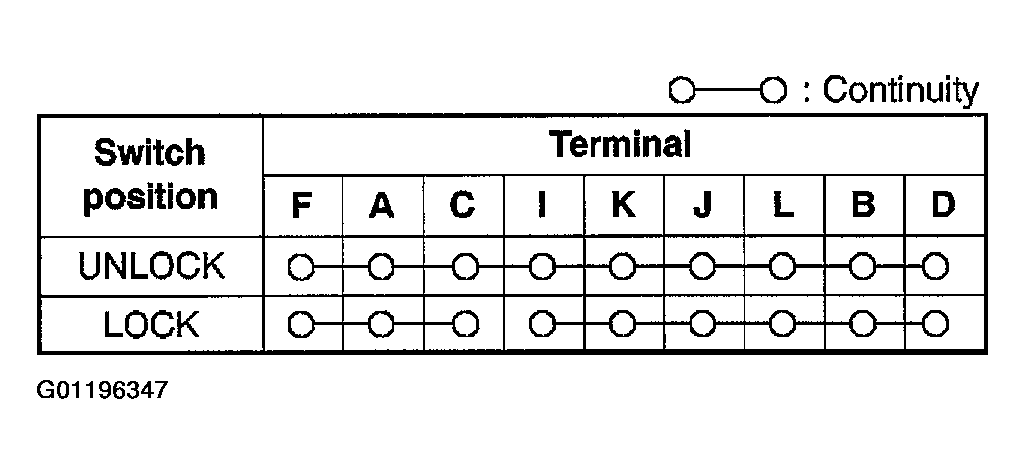

Fig 6: Inspecting Power Window Main Switch Continuity (Power-Cut Switch Side)

Courtesy of MAZDA MOTORS CORP.
