Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
  3. Push out the clip from behind the front door trim, and remove the switch panel.
  4. Remove the screws, and remove the power window main switch.
  5. Install in the reverse order of removal.

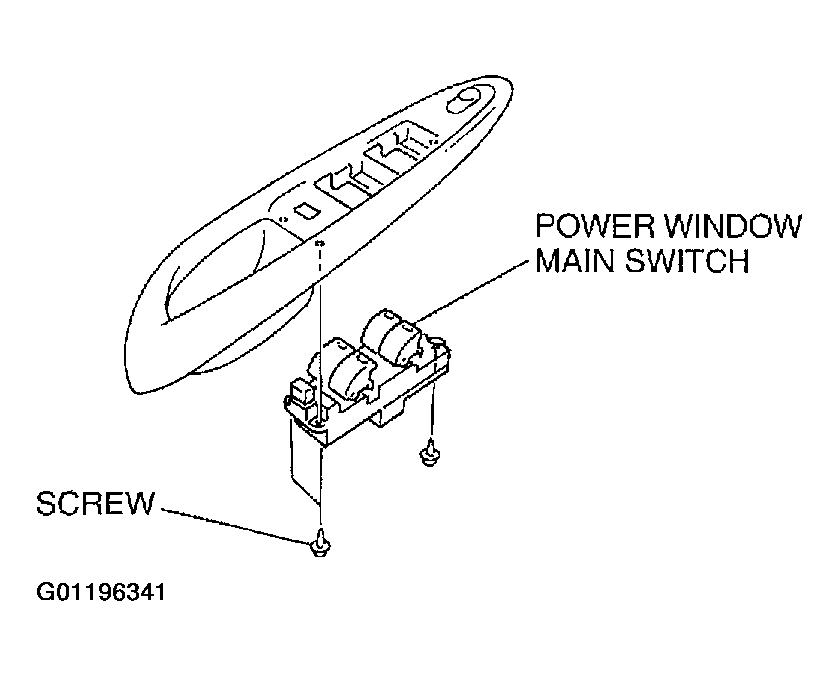

    Fig 1: Removing Power Window Main Switch
    G01196341Courtesy of MAZDA MOTORS CORP.
