Power Window Motor Inspection

  1. Remove the power window motor. See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY  . See REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY  .
  2. Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
    • If not as specified, replace the power window motor.

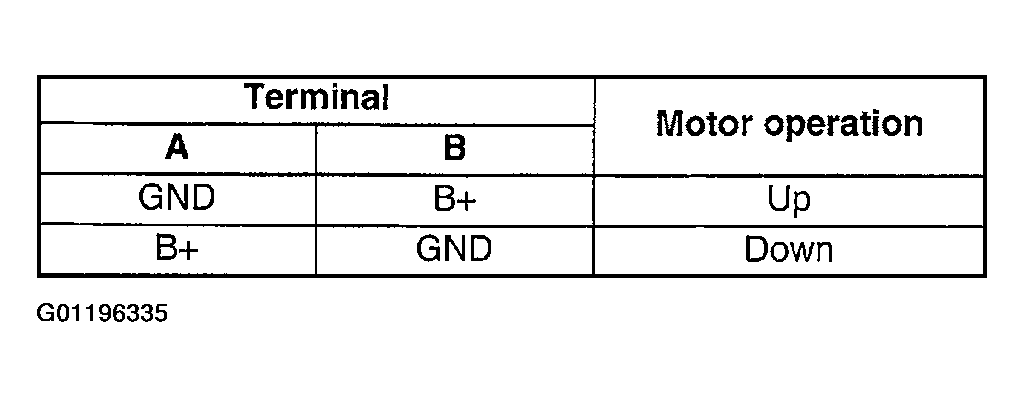

Fig 1: Inspecting Power Window Motor Functions
G01196335Courtesy of MAZDA MOTORS CORP.

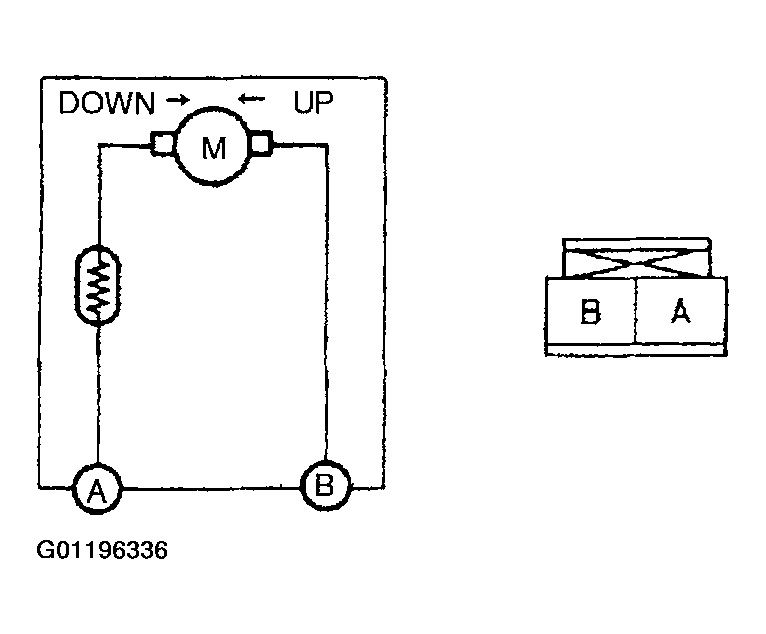

Fig 2: Identifying Power Window Motor Current
G01196336Courtesy of MAZDA MOTORS CORP.
