Quarter Window Glass Removal

  1. Remove the C-pillar trim. See C-PILLAR TRIM REMOVAL/INSTALLATION .
  2. Remove the D-pillar trim. See D-PILLAR TRIM REMOVAL/INSTALLATION .
  3. Remove the screws and nuts, and remove the quarter window glass.
  4. Remove the screw, and remove the lock from the glass.
    NOTE:
    • The quarter window molding is a replacement part.
  5. Remove the quarter window molding from the quarter window glass.

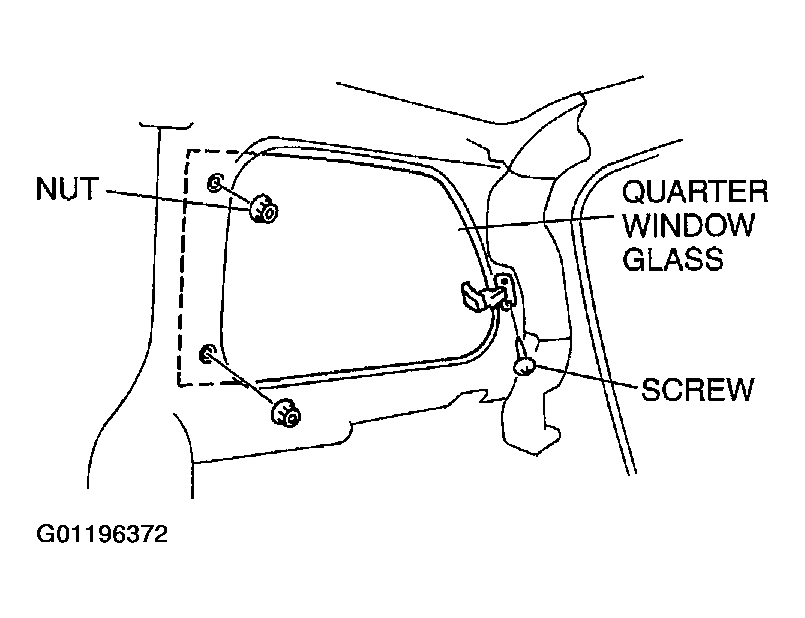

Fig 1: Removing Quarter Window Glass
G01196372Courtesy of MAZDA MOTORS CORP.
