Regulator Handle Installation

  1. Install the clip in the regulator handle.
  2. Close the door glass fully and push the regulator handle on as shown.

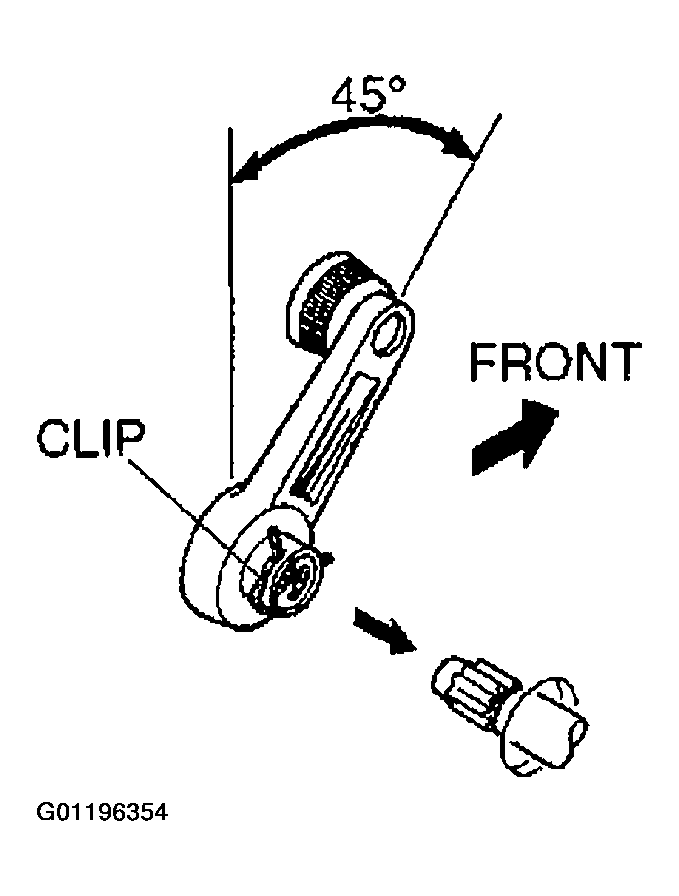

Fig 1: Installing Regulator Handle
G01196354Courtesy of MAZDA MOTORS CORP.
