Side Cover Removal Note

Remove the screw.
Lift the side cover up in the direction shown by the arrow, then unhook it from the recliner knuckle.

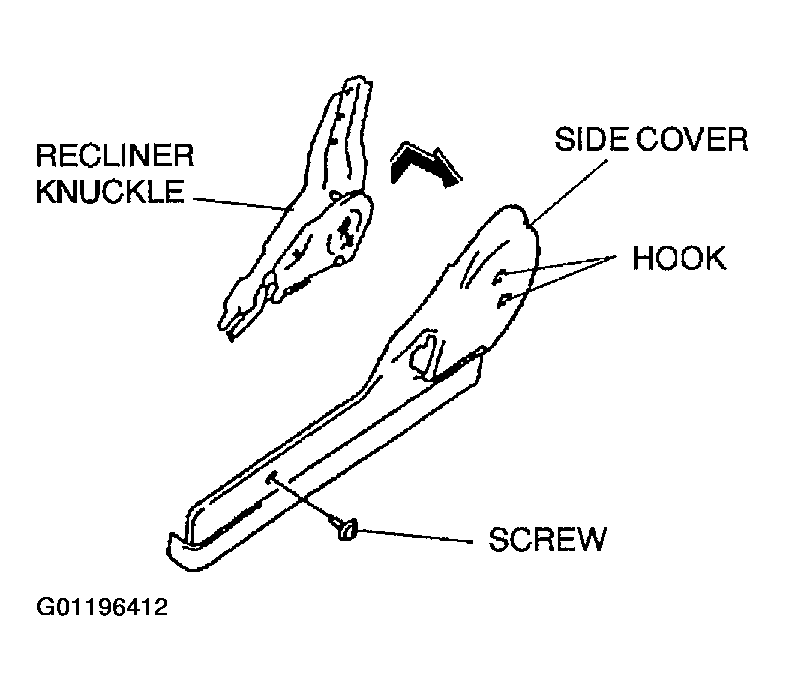

Fig 1: Removing Seat Side Cover

Courtesy of MAZDA MOTORS CORP.

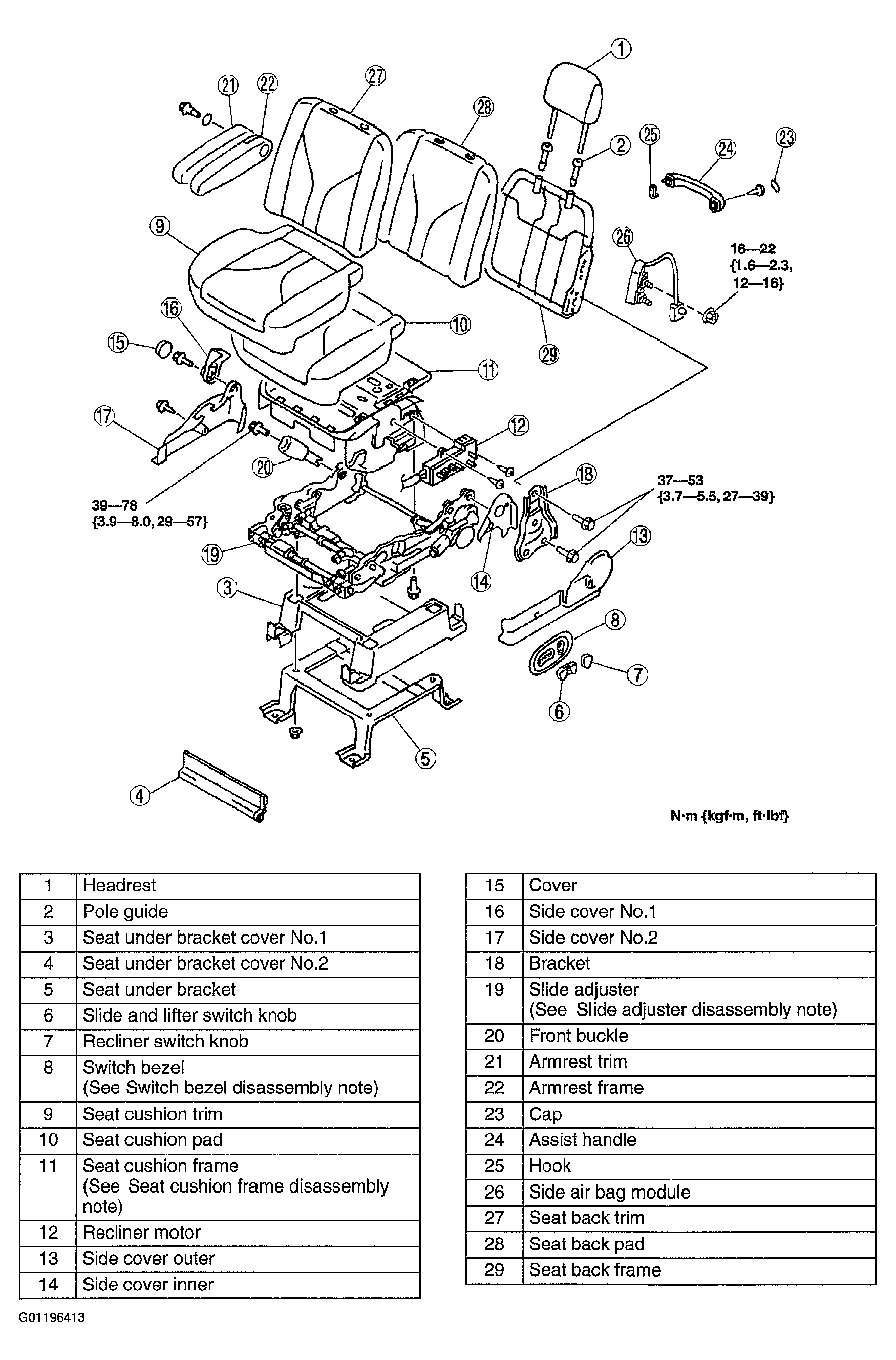

Fig 2: Exploded View Powered Drivers Seat

Courtesy of MAZDA MOTORS CORP.
