Slide Adjuster Disassembly Note

  1. Disconnect the connectors.

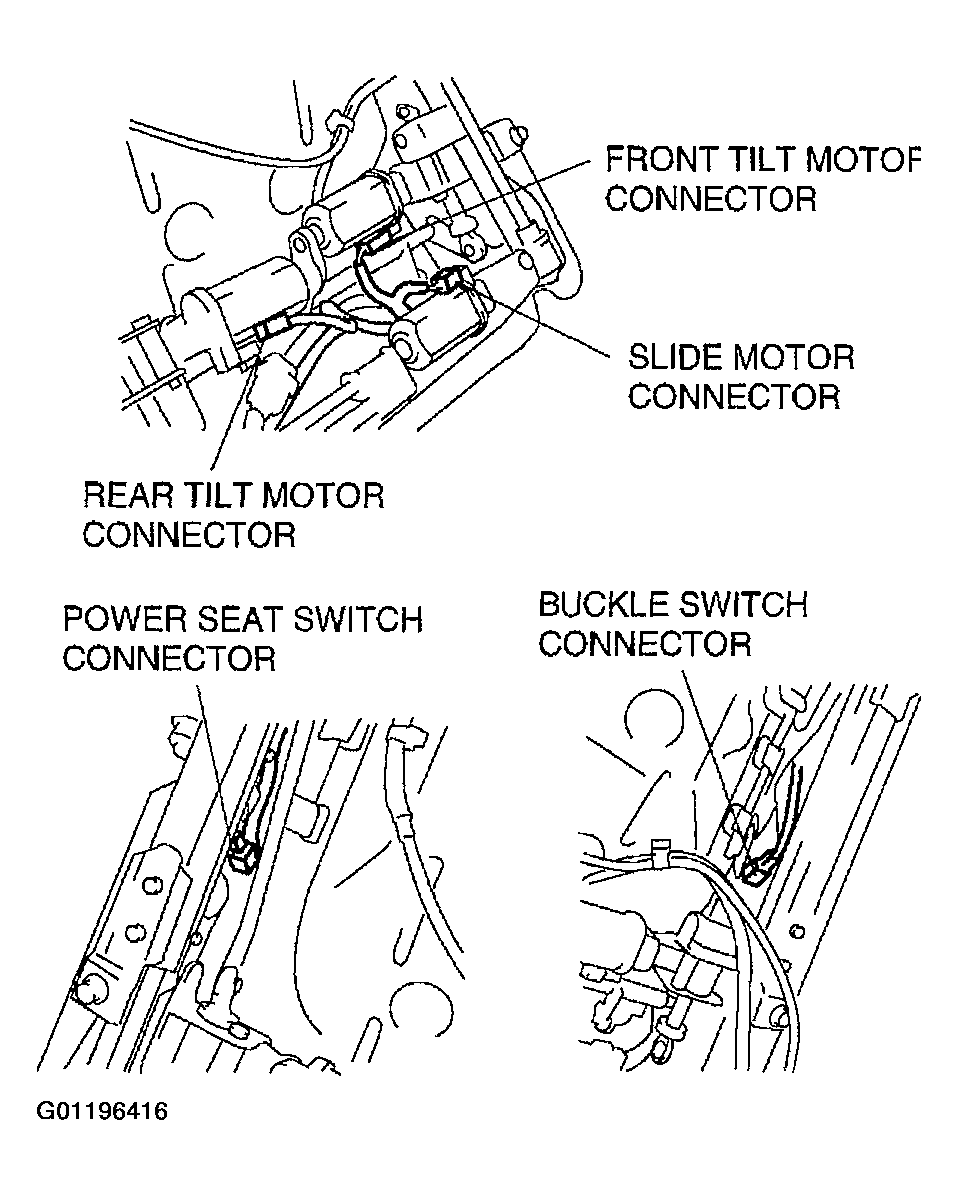

Fig 1: Disconnect Slide Adjuster Connectors
G01196416Courtesy of MAZDA MOTORS CORP.

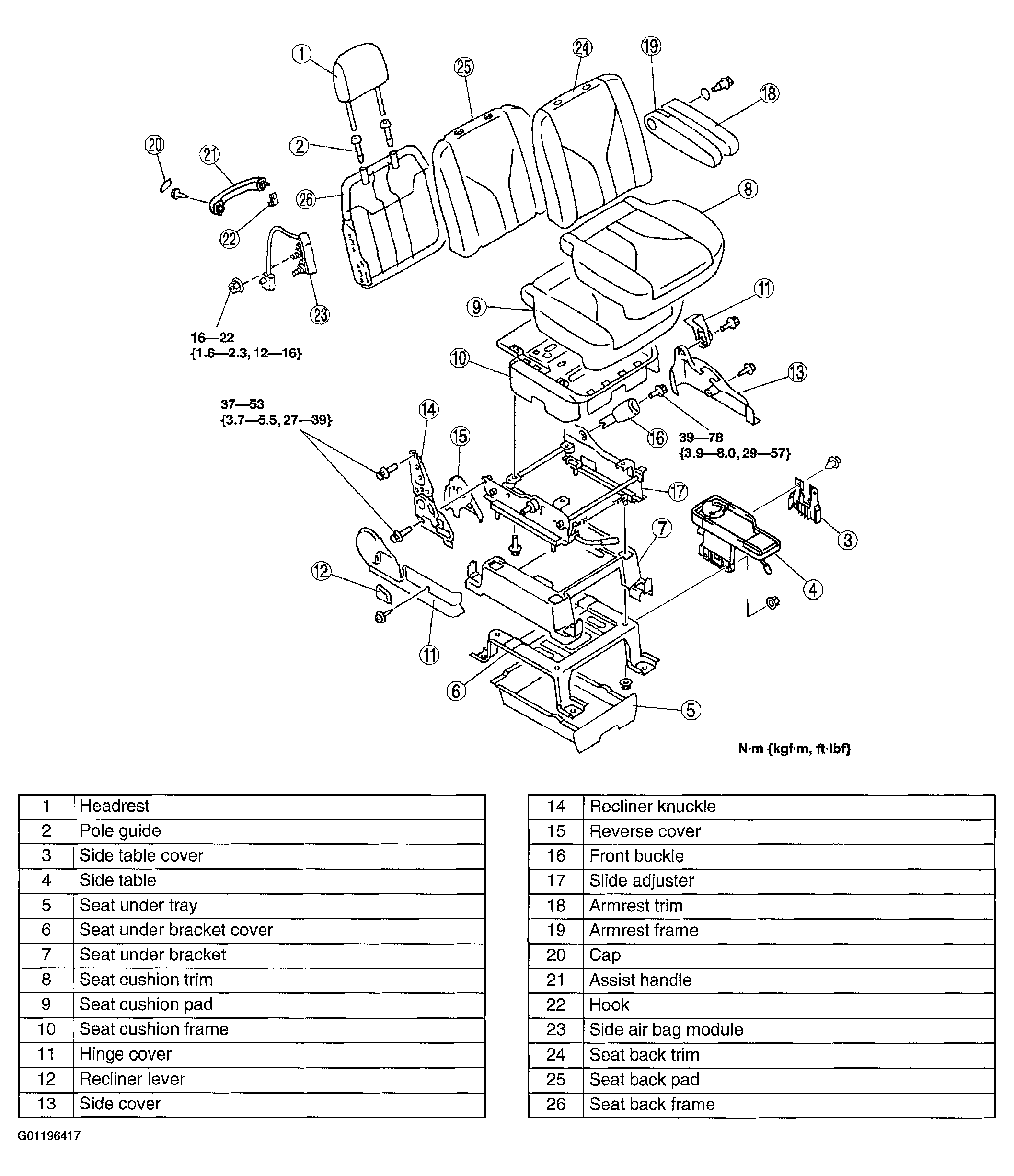

Fig 2: Exploded View Passengers Seat
G01196417Courtesy of MAZDA MOTORS CORP.
