Front Seat Removal/Installation

WARNING: Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for more than 1 minute.
  3. Remove in the order indicated in the illustration.

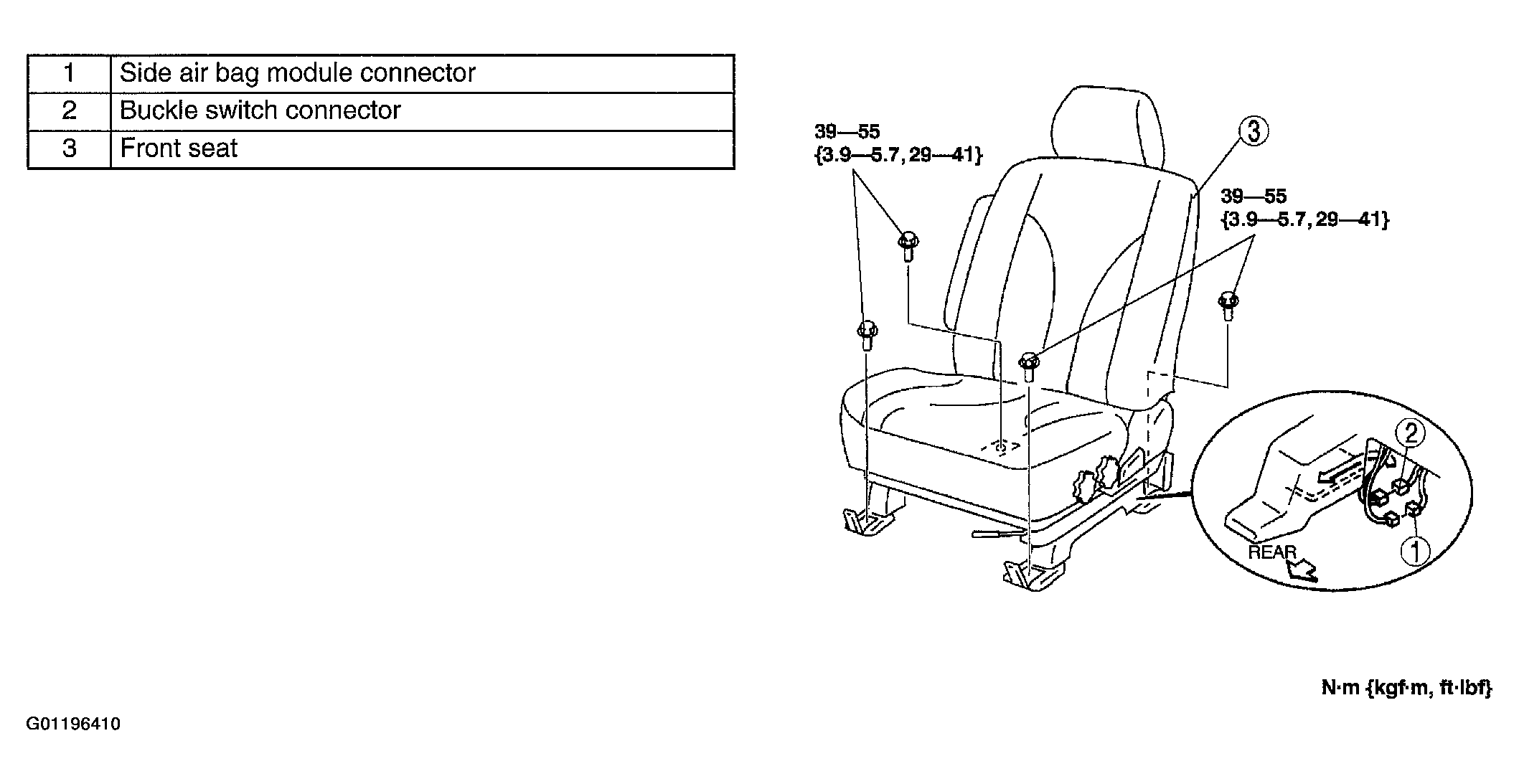

    Fig 1: Removing Front Seat
    G01196410Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
