Slide Motor Inspection

Disconnect the slide motor connector.
Inspect the slide motor operation when B+ is applied to the terminals as shown.
- If not as specified, replace the seat cushion frame.

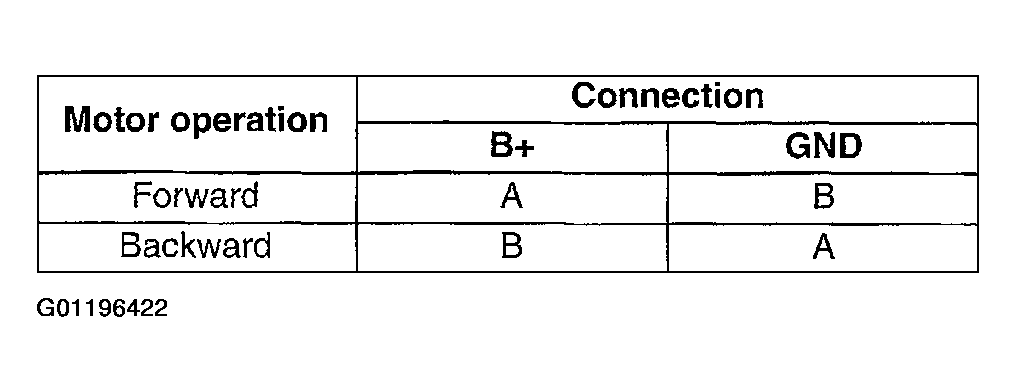

Fig 1: Inspecting Slide Motor Functions
Courtesy of MAZDA MOTORS CORP.

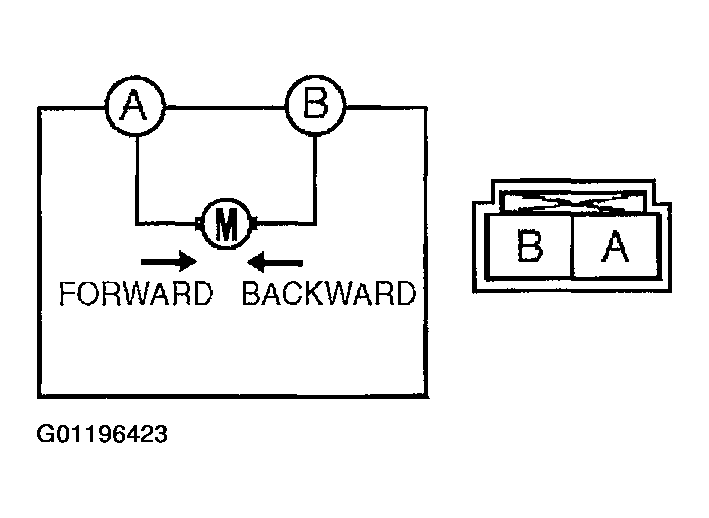

Fig 2: Identifying Slide Motor Connector
Courtesy of MAZDA MOTORS CORP.
