Third-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.
  2. Assemble in the reverse order of disassembly.

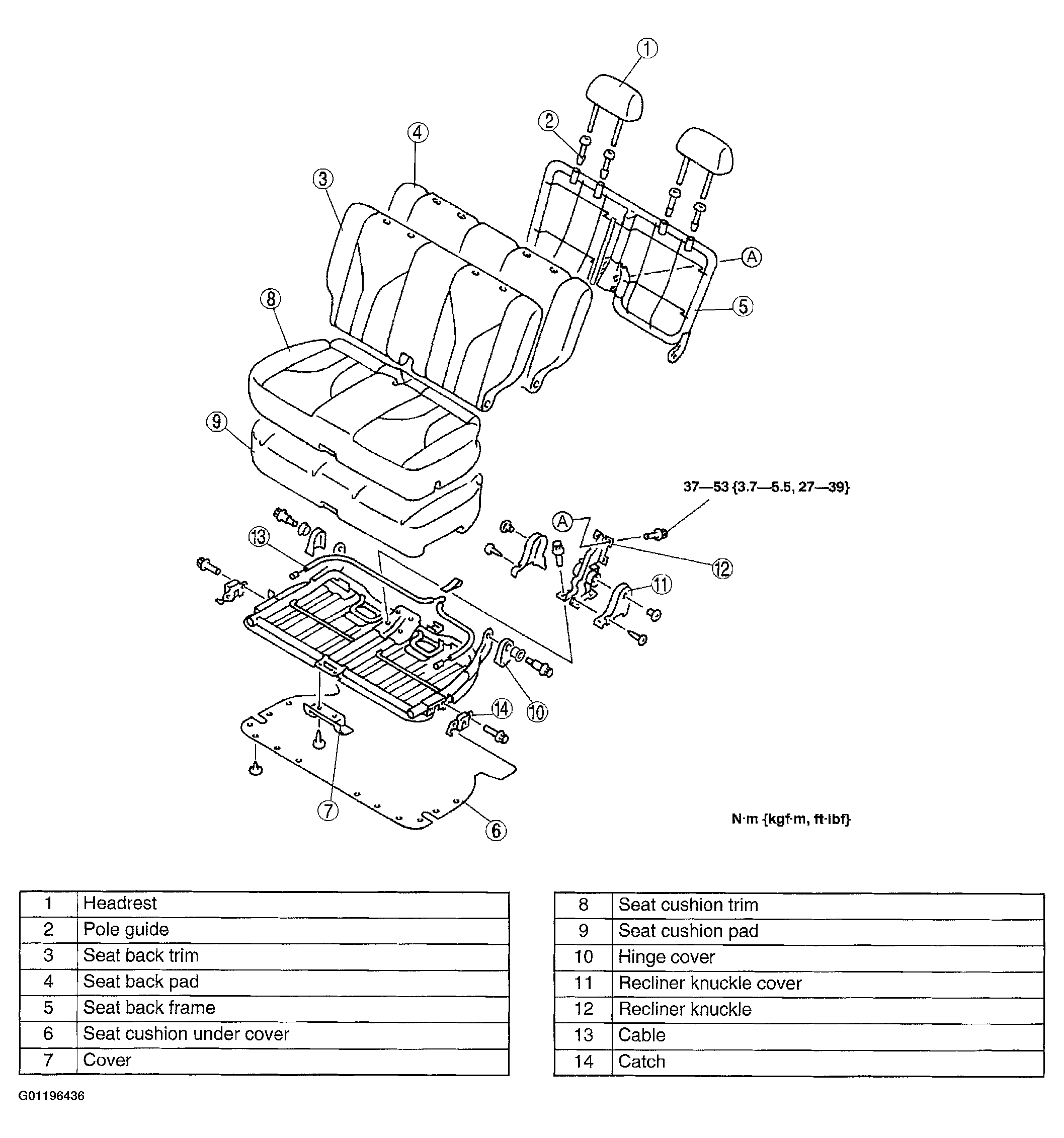

Fig 1: Exploded View Third Row Seat
G01196436Courtesy of MAZDA MOTORS CORP.
