Third-Row Seat Removal/Installation: Hinge

  1. Remove the third-row seat.
  2. Remove the rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .
  3. Remove the third-row seat belt lower anchor.
  4. Remove in the order indicated in the table.

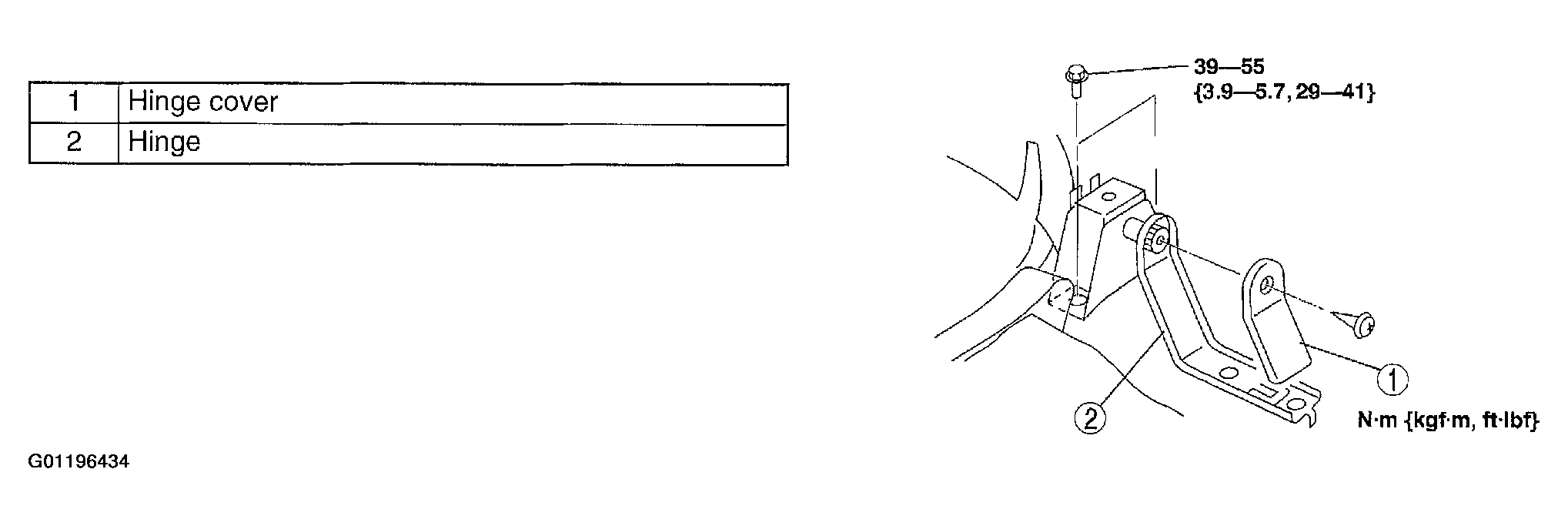

    Fig 1: Removing Hinge
    G01196434Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
