Abs And TCS System Diagram

Fig 1: ABS & TCS System Diagram
G01196825Courtesy of MAZDA MOTORS CORP.

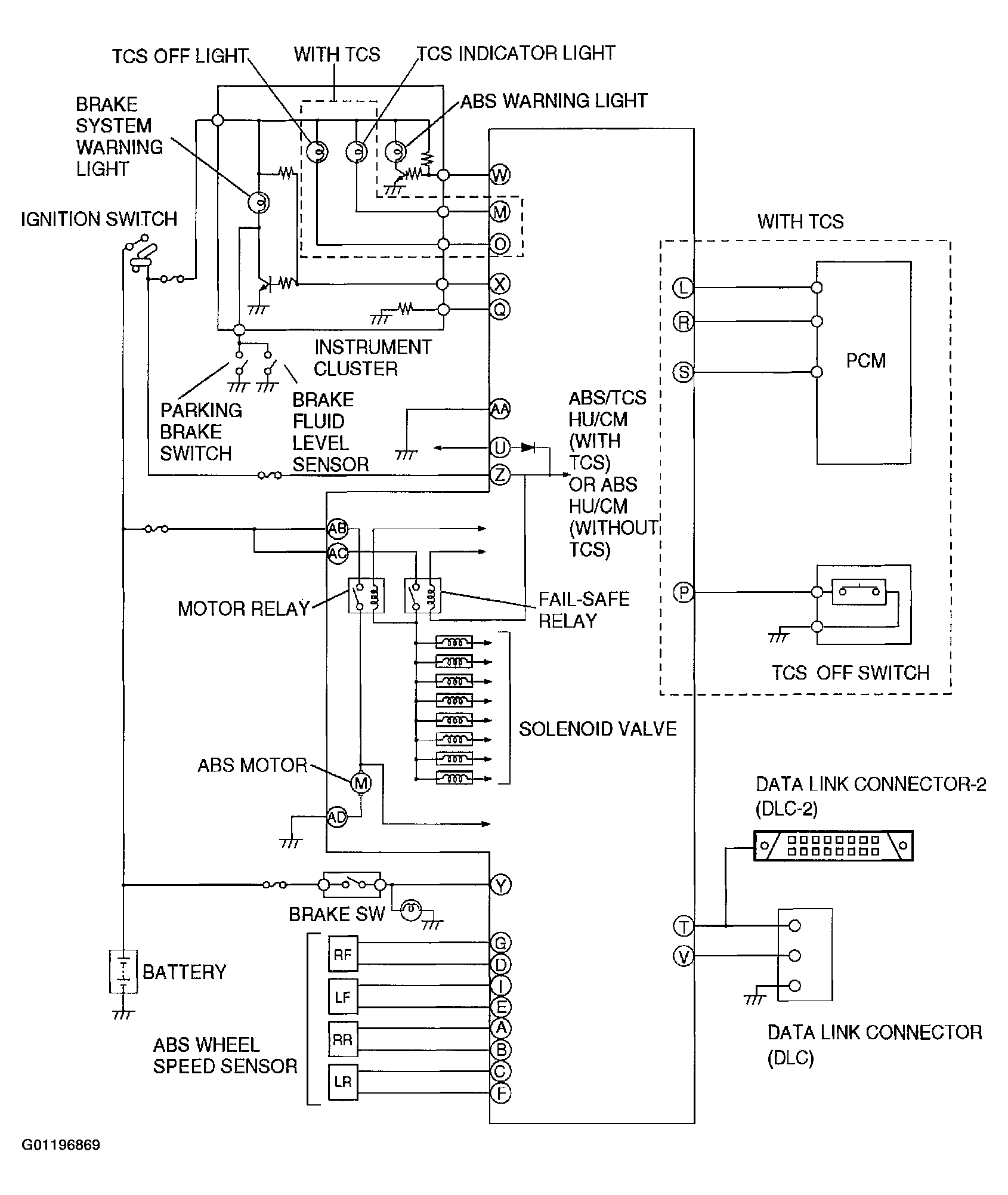

Fig 1: ABS & TCS System Diagram
G01196869Courtesy of MAZDA MOTORS CORP.
