Abs HU/Cm Inspection: Notes
- Remove the battery and battery tray.

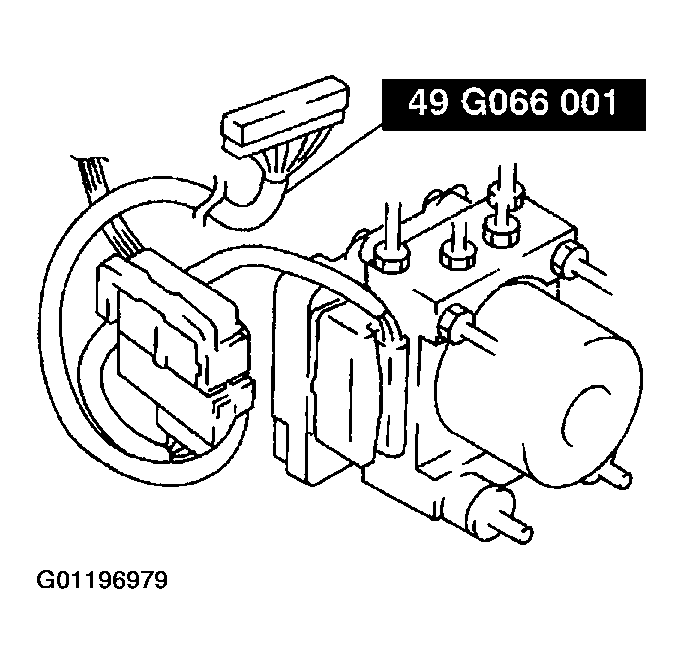

- Connect the SST between the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) and harness connector with the ignition switch off.
- Attach the tester leads to the SST
to inspect voltage by referring to the table below.CAUTION: In the event that the vehicle is to be inspected while it is being driven, make sure that the SST harness does not interfere with parts in the engine room.
