Connector Installation Note

  1. Verify that the lock lever of the harness connector is completely pulled up.

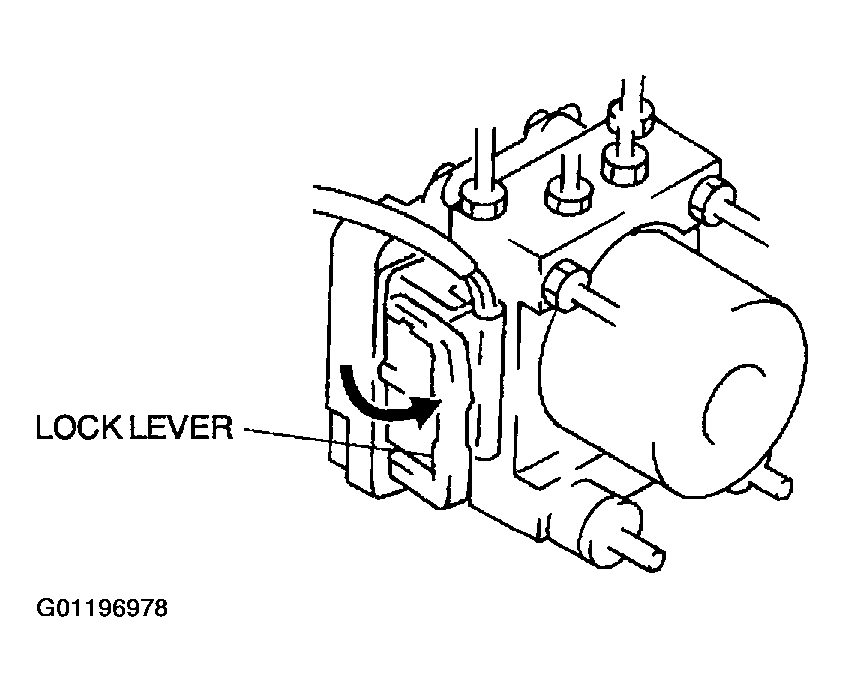

Fig 1: Identifying Lock Lever (Lock)
G01196978Courtesy of MAZDA MOTORS CORP.
