Connector Removal Note

  1. Pull the lock lever up and make it unlock.
  2. Remove the connector.

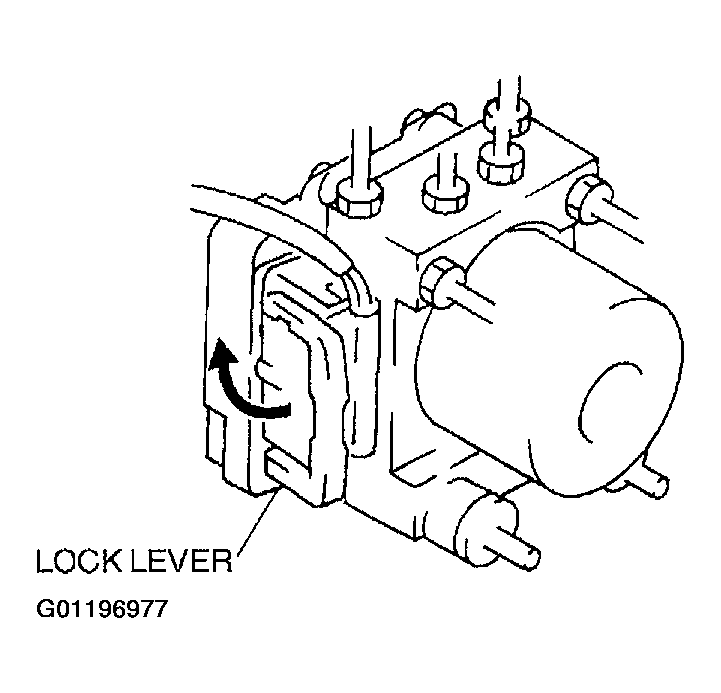

Fig 1: Identifying Lock Lever (Unlock)
G01196977Courtesy of MAZDA MOTORS CORP.
