PID/Data Monitor Table

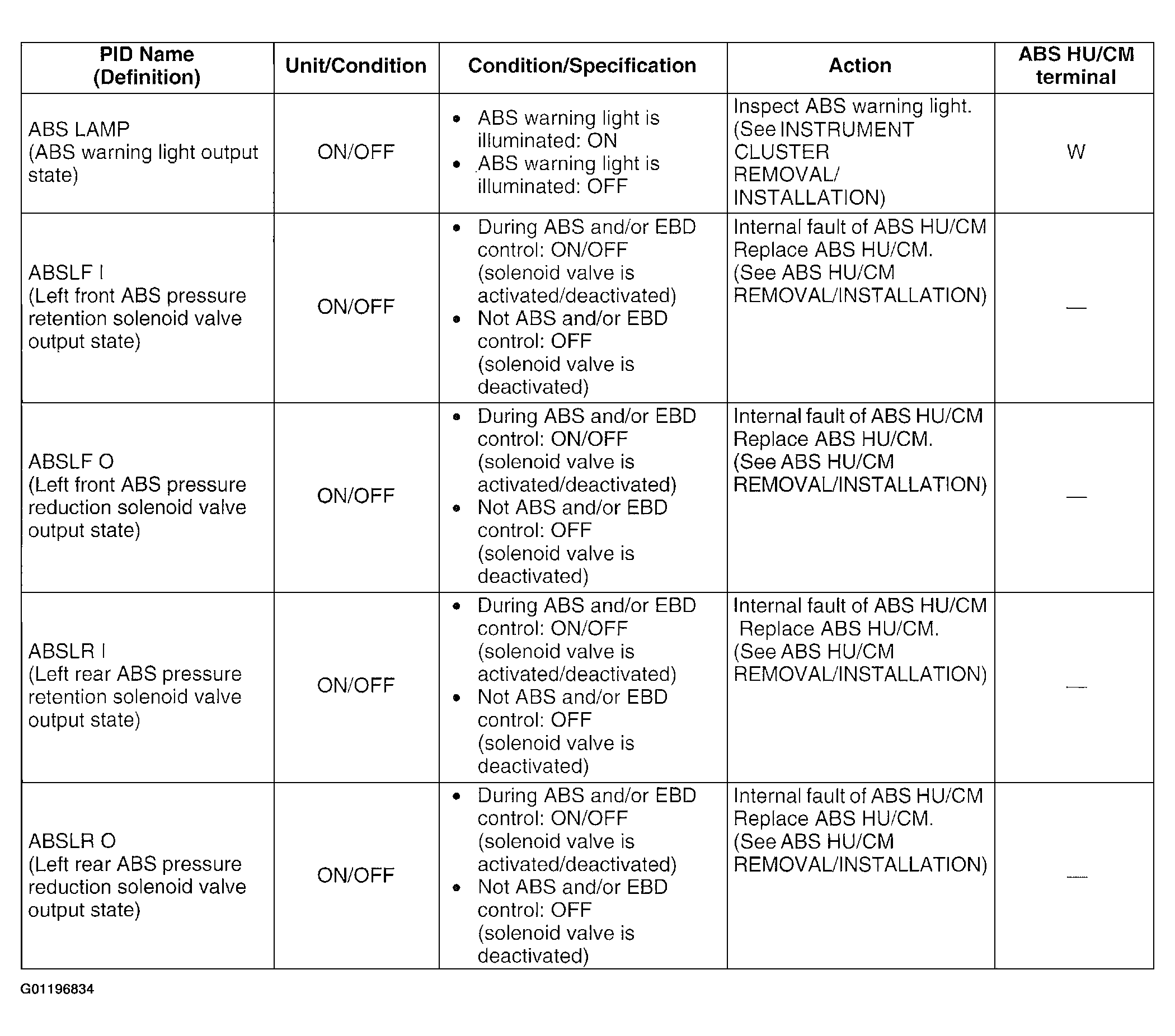

Fig 1: PID/DATA Monitor Table (1 Of 3)

G01196834

Courtesy of MAZDA MOTORS CORP.

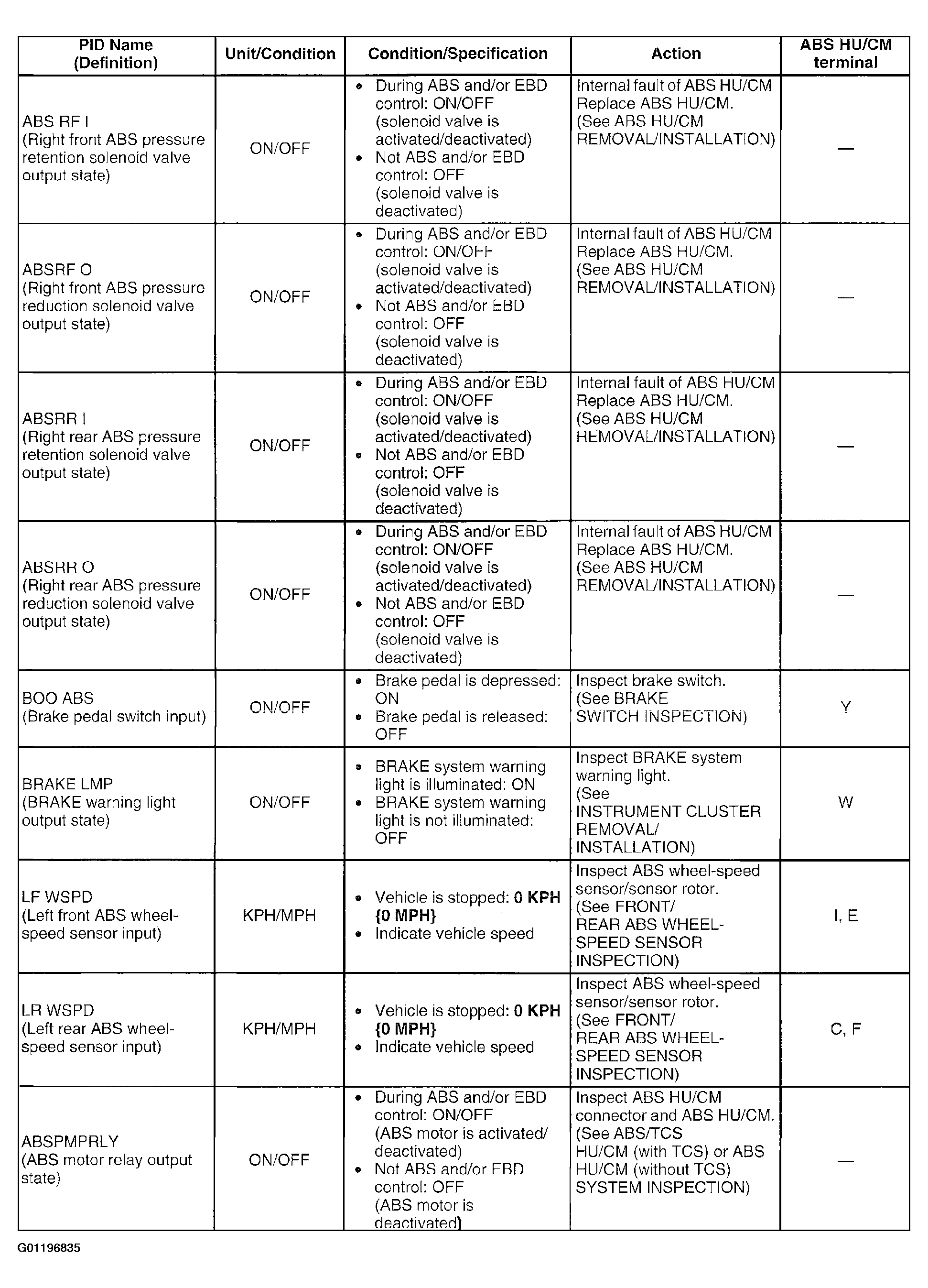

Fig 2: PID/DATA Monitor Table (2 Of 3)

G01196835

Courtesy of MAZDA MOTORS CORP.

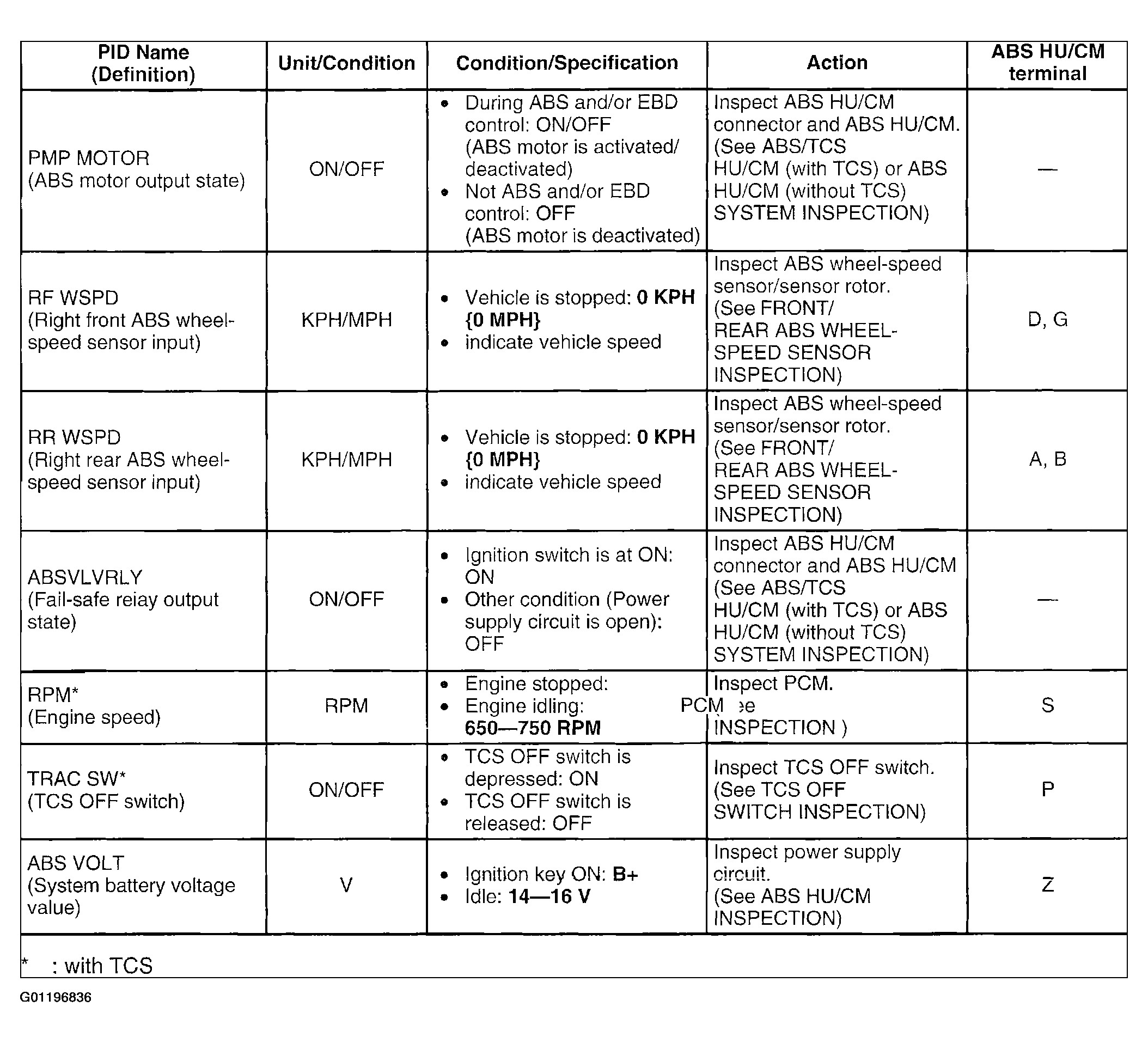

Fig 3: PID/DATA Monitor Table (3 Of 3)

G01196836

Courtesy of MAZDA MOTORS CORP.
