DTC C1117 (17): Engine Control System, Engine Speed Signal Line
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

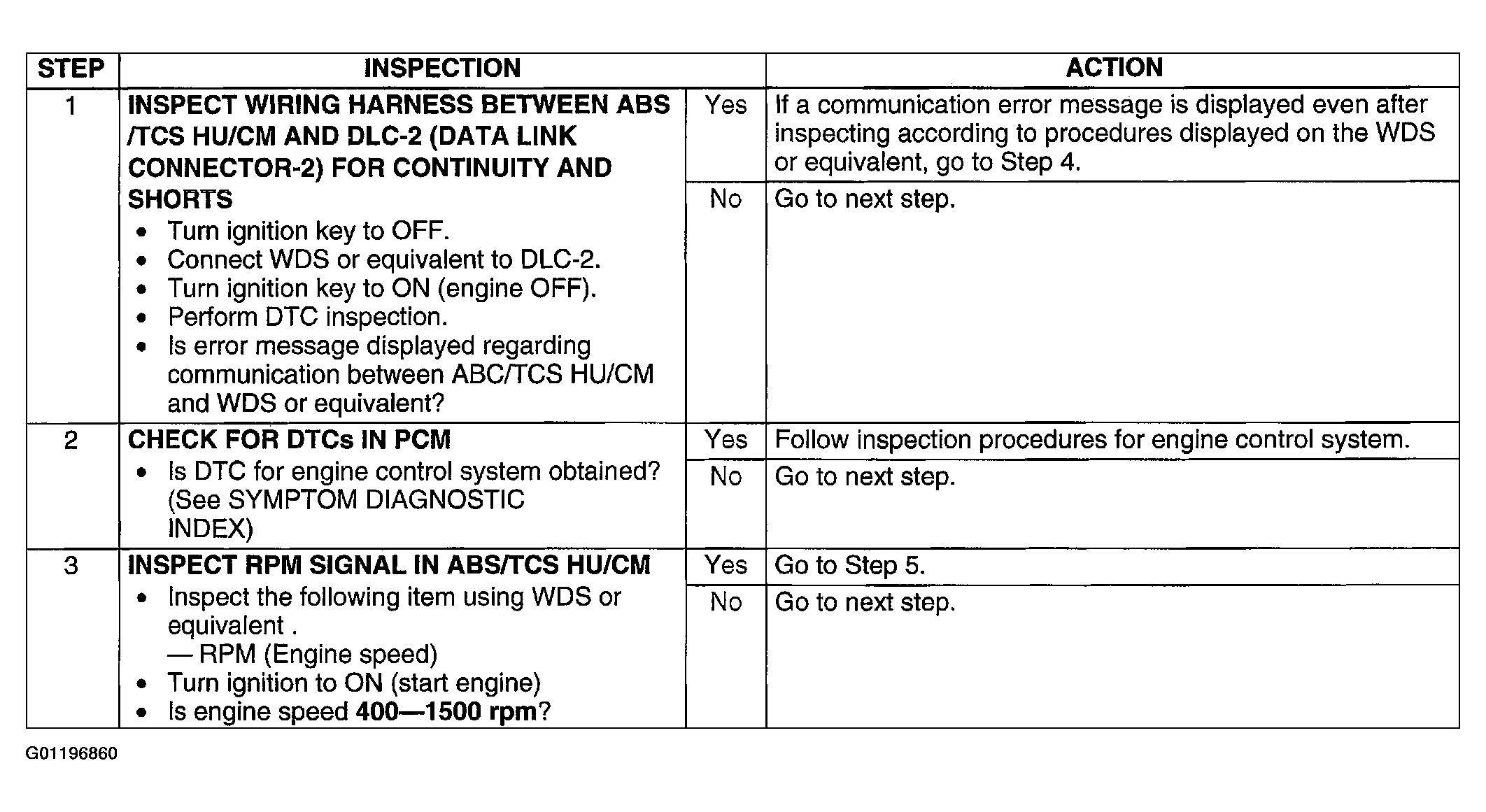

Fig 1: DTC C1117 (17) Diagnostic Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

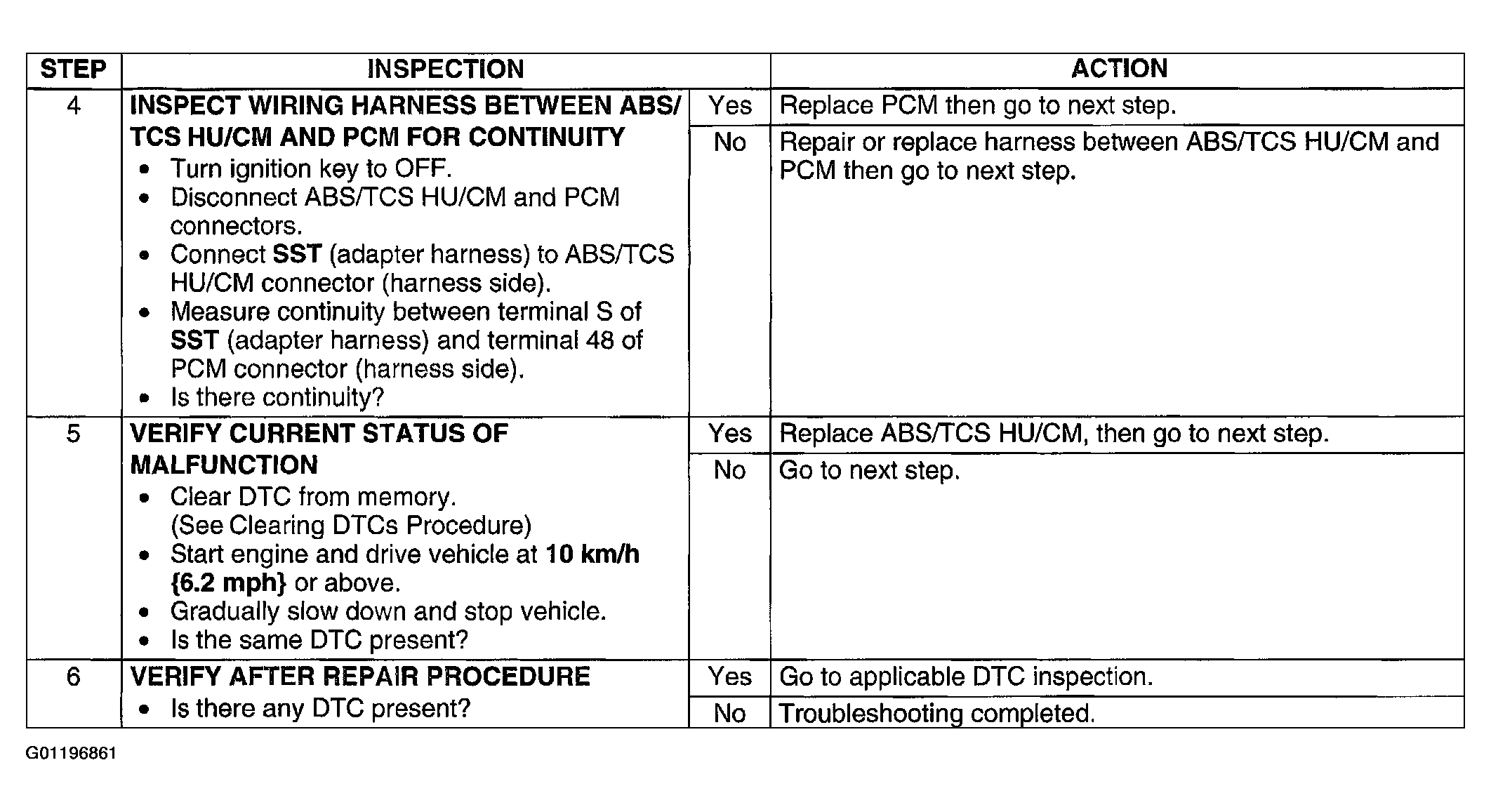

Fig 2: DTC C1117 (17) Diagnostic Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
