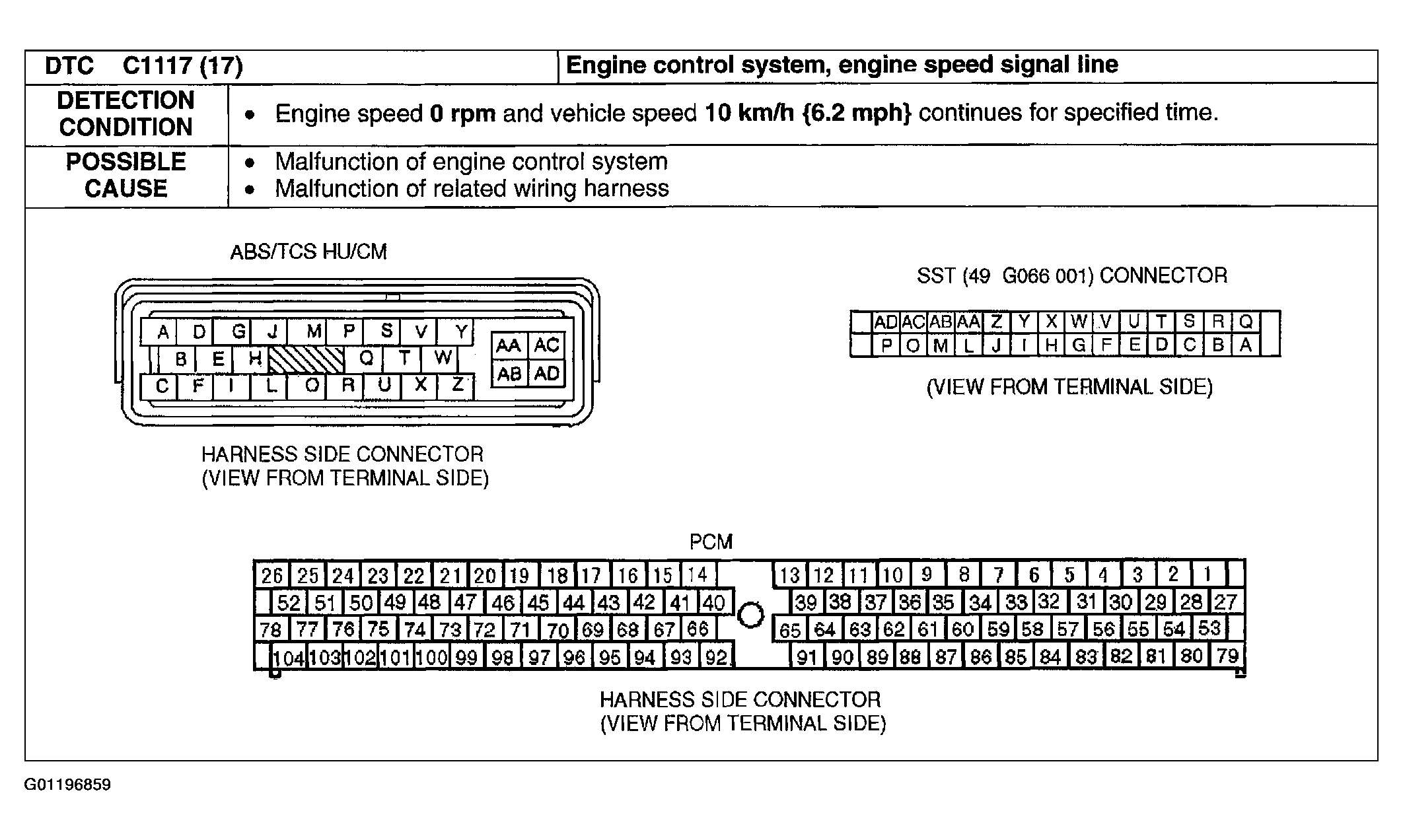

DTC C1117 (17): Engine Control System, Engine Speed Signal Line: Notes
CAUTION:
- When attaching the tester lead to the ABS/TCS HU/CM or the ABS/TCS HU/CM harness connector, the SST (49 G066 001) must be used. See ABS/TCS HU/CM (WITH TCS) OR ABS HU/CM (WITHOUT TCS) SYSTEM INSPECTION .
- When attaching the tester lead to the PCM, the SST must be used. See POWERTRAIN CONTROL MODULE .
NOTE:
DTC C1117 (17) may be stored if the engine is stalled or the ignition switch is turned off while the vehicle is driving at 10 km/h {6.2 mph} or more.
