Front Abs Wheel-Speed Sensor Removal/Installation

  1. For left side, remove the air cleaner and air filter.
  2. Remove in the order indicated in the illustration.

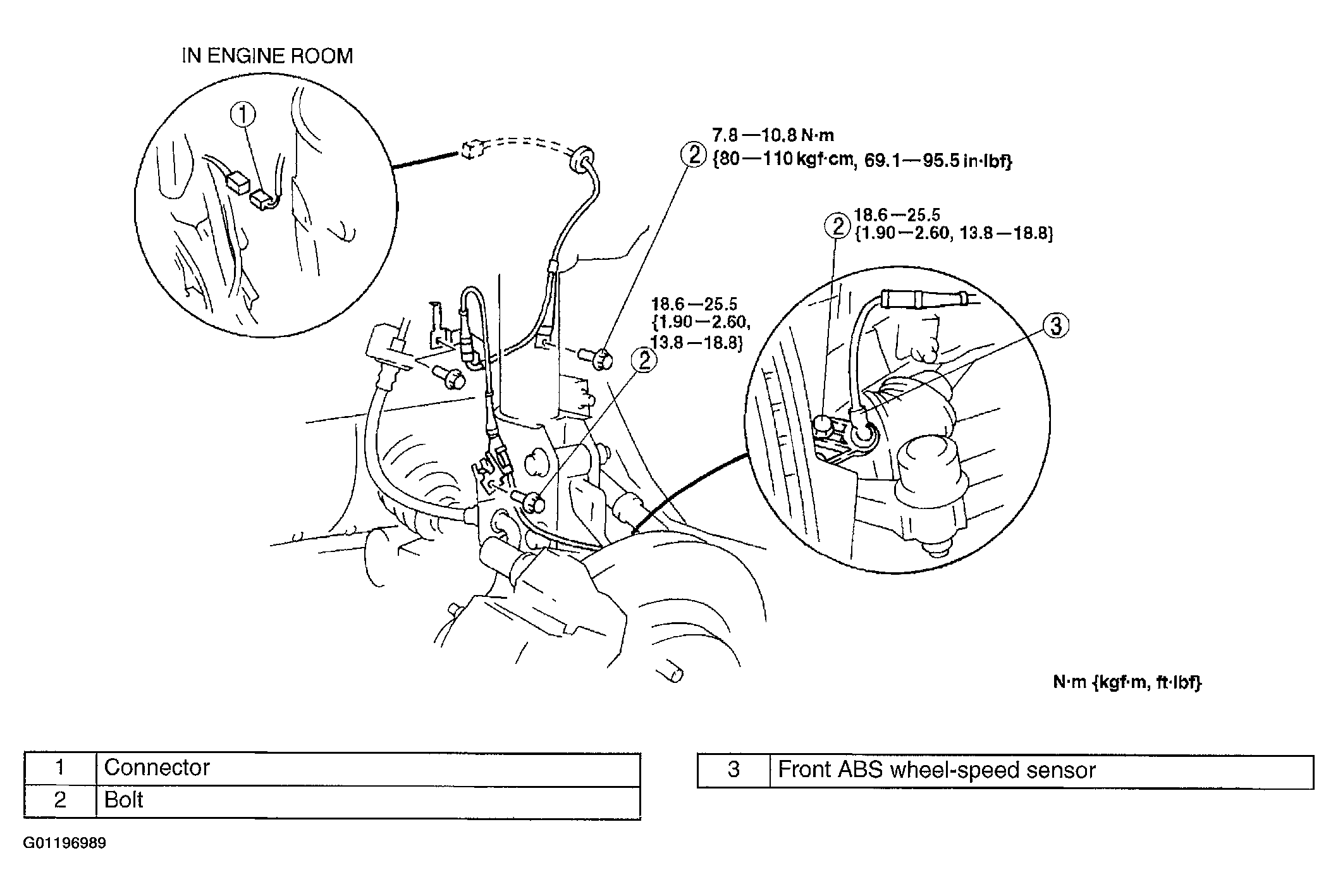

    Fig 1: Removing/Installing Front Wheel Speed Sensor
    G01196989Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
