With TCS

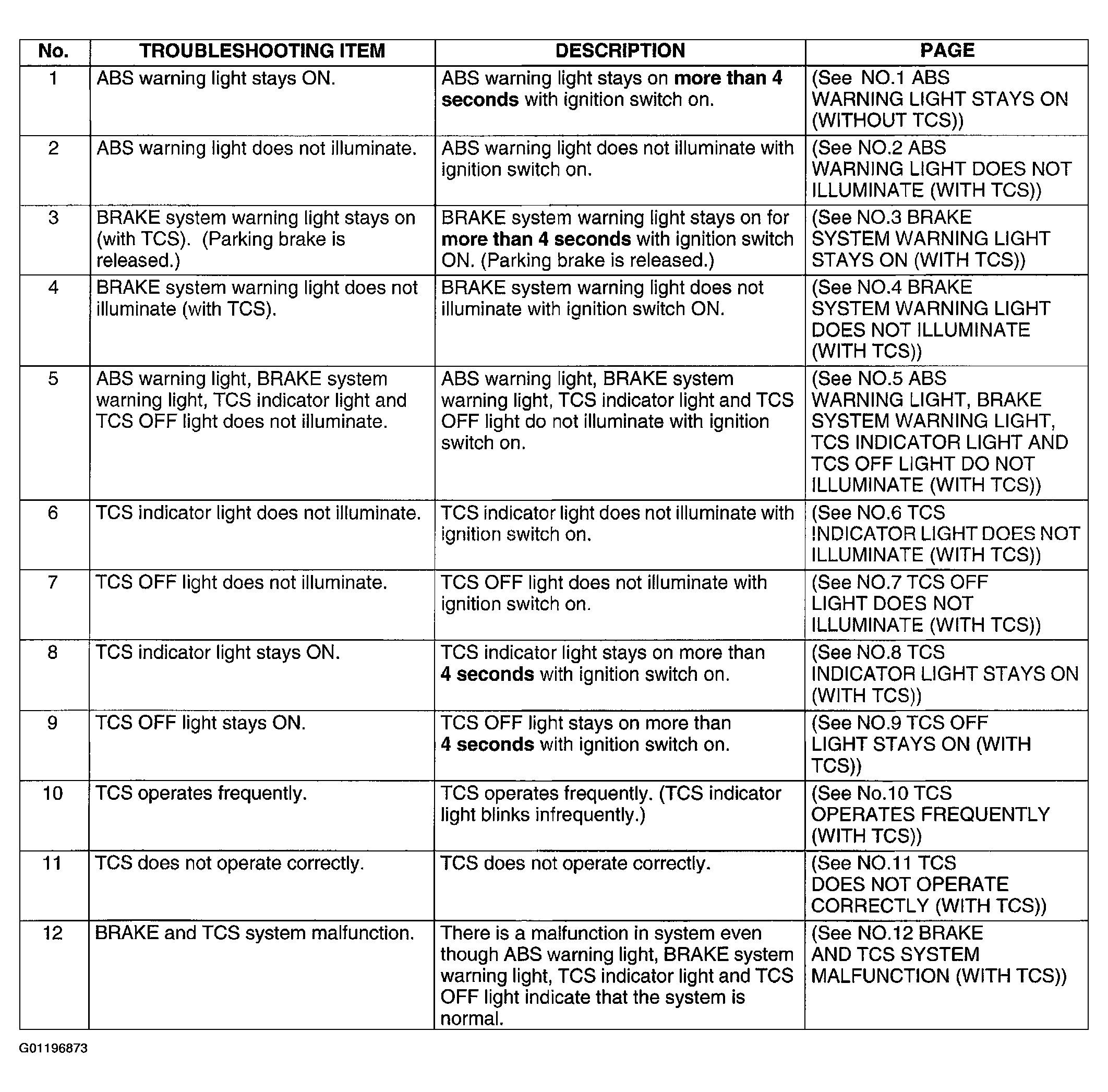

Fig 1: Symptom Trouble Shooting Chart (With TCS)
G01196873Courtesy of MAZDA MOTORS CORP.

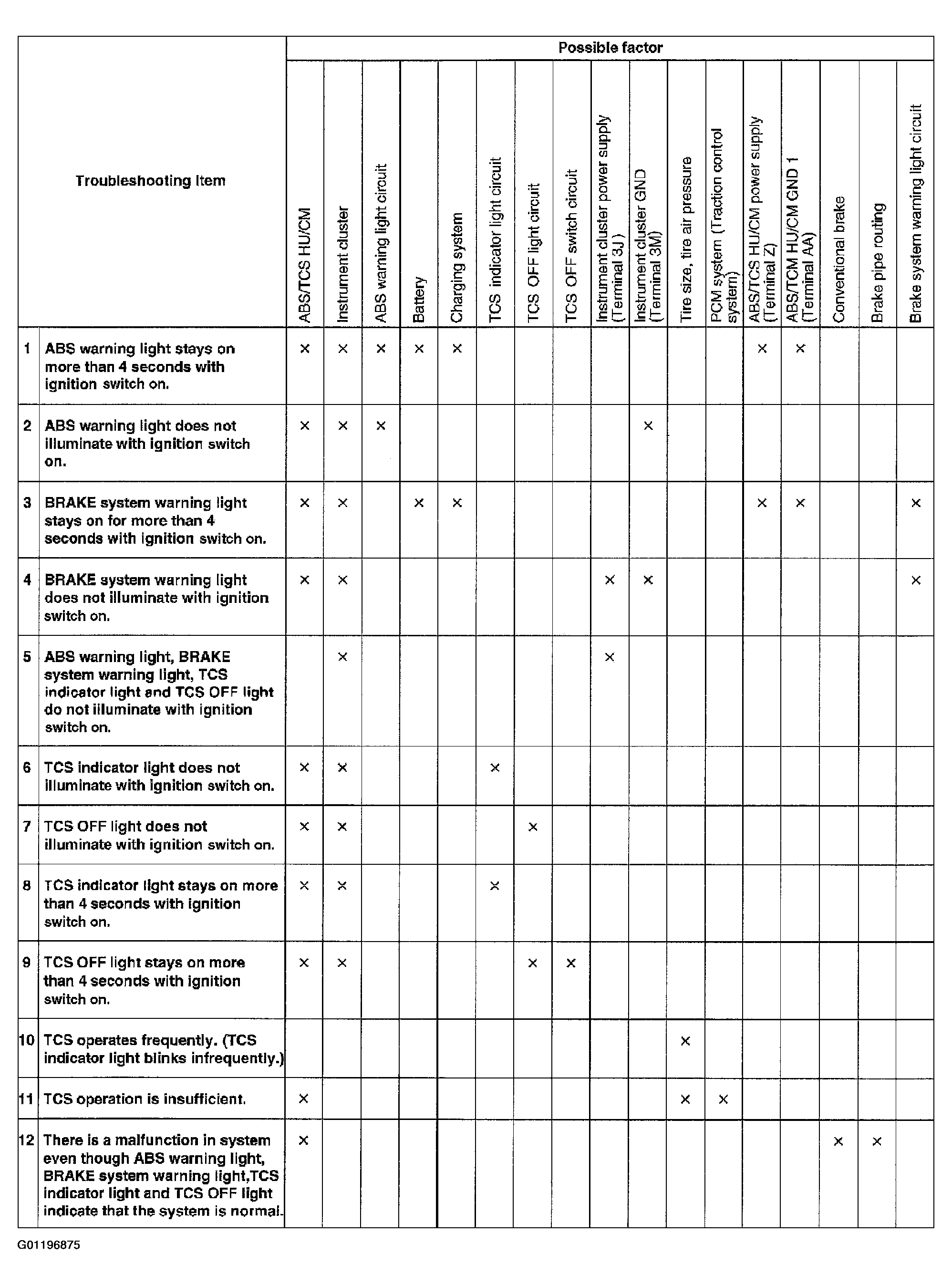

Fig 1: Warning Light Trouble Shooting Chart (With TCS)
G01196875Courtesy of MAZDA MOTORS CORP.
